50000 liters 25 Ton LPG Tanker Trailers

4 year ago

6 0

 9 year year

Product details

We offer various of LPG tank trailers with tank capacity up to 65,000 liters to many Africa countries like Nigeria, Libya, Morocco, Benin, Cameroon, Guinea etc. Chinese design standard, ASME code and other standards are available as per your need, this 56m3 LPG tank trailer is fabricated for Nigeria energy company with reliable & durable performance.
Technical Specification
Curb weight: 14,460 kg
M.A.L.W: 23,520 kg
Total Weight: 37,980 kg
Front/Rear Overhang: -/1540 mm
Approach/Departure angle -/18 °
Tire Size: 12.00-20 Nylon Tire
Design Service Life: 10 years
External Dimensions: 12580*2480*3985 mm
Maximum Speed: 90 km/h
Tank Parameter
Medium: Propane
Capacity: 56,000 liters
Tank material: Q345R
Design Pressure: 16.1 Bar
Filling Coefficient: 420 kg/m3
Host Material: Q345R
Thickness of Cylinder: 12 mm
Thickness of Head: 14 mm
Head Shape: elliptical
Diameter*Thickness*Length: 2450*12*12580 mm
Working Thermometer: -20℃~50℃
Heat Treatment: 620 ℃ annealing
Safety Valve: A412F-25
Level Meter: float type or rotary type
Drain: 2"
Manway: 18"
Steel baffle: carbon steel baffle, 7 pcs
Liquid Phase Connection
Connection to tank: 3" flange.
3" flanged internal valve with excess flow and pneumatic actuator
Ball valve 3", fire safe
Set WECO 2"
Gas Phase Connection
Connection to tank: 2" threaded
2" threaded internal valve with excess flow and pneumatic actuator
Ball valve 2", fire safe
Set WECO 2"
Filling & Discharge System

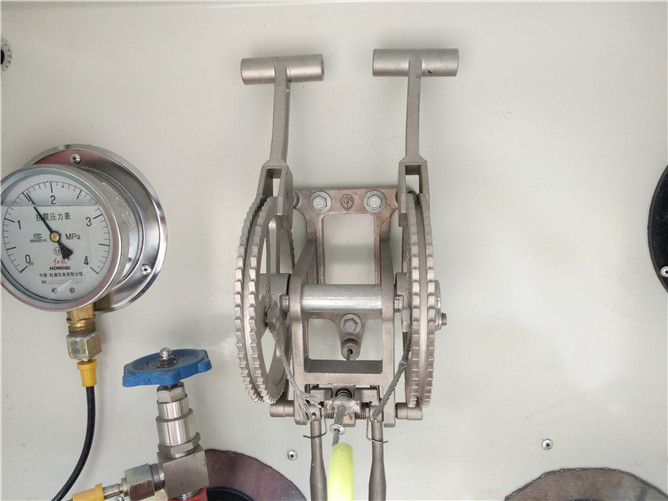

Control method: mechanical
Liquid discharge: double liquid discharge system, both sides of the trailer

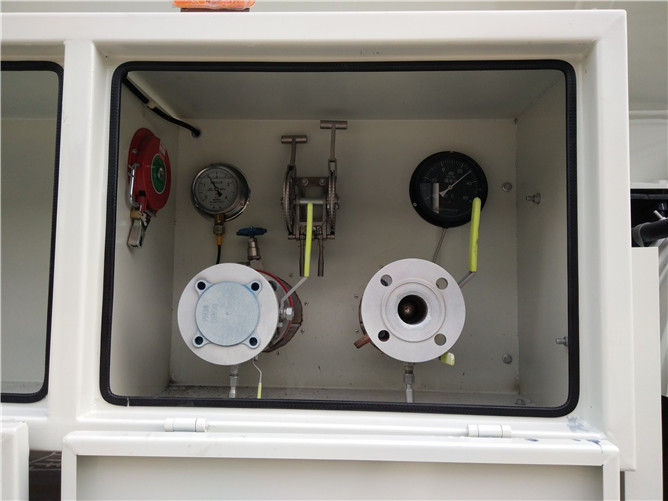

Valve box: doubel valve boxes, both sides
Other Fittings
Tool valve: double tool valve
Mudguard: steel mudguard
Ladder: yes
Level gauge armrest: yes
Fire extinguisher: 2x5 kg
King pin: JOST 2"
Landing gears: JOST separate winding

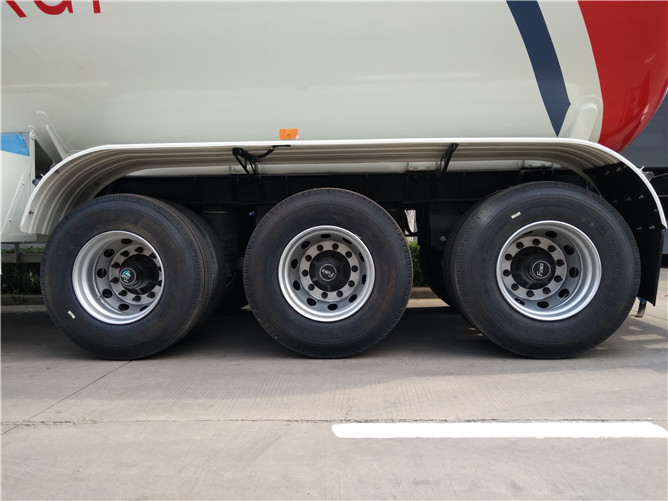

Running Gear
Suspension: Chinese spring suspension, 4 pcs
Spare wheel carrier: single
ABS: KORMEE brand, 4S/2M

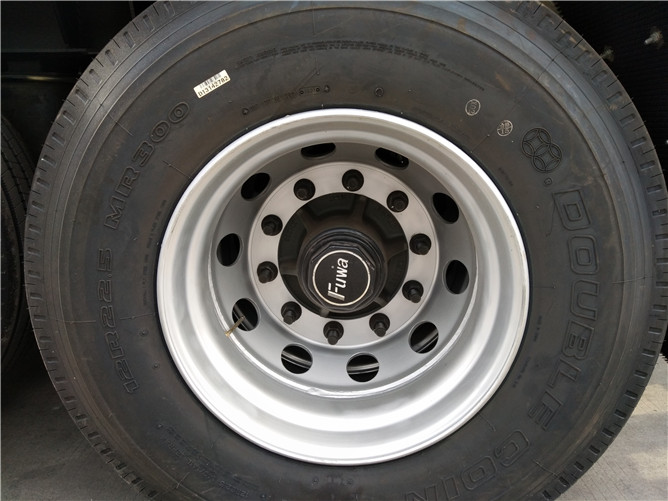

Rim: steel rim, 8.25x22.5
Axle: FUWA brand, 13T capacity, 3pcs
Tire brand: Double coin, 13pcs
Tire dimension: 12R22.5, tubeless
Light: LED lamps, 24V voltage
Side protection: steel
Parking brake: Pneumatically operated
Earthing: Electrostatic strip
Surface
Reflective stickers: 3M reflective stickers
Painting & logo: Yes, custom available

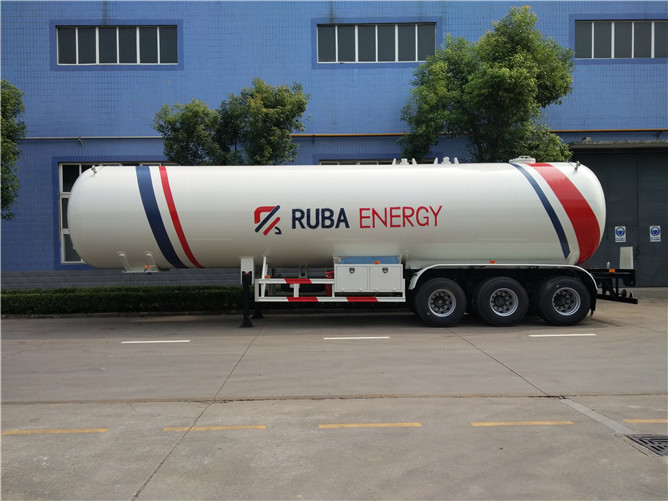

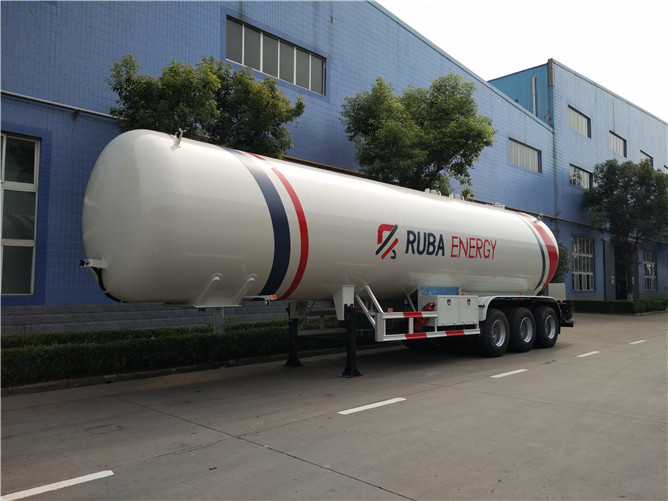

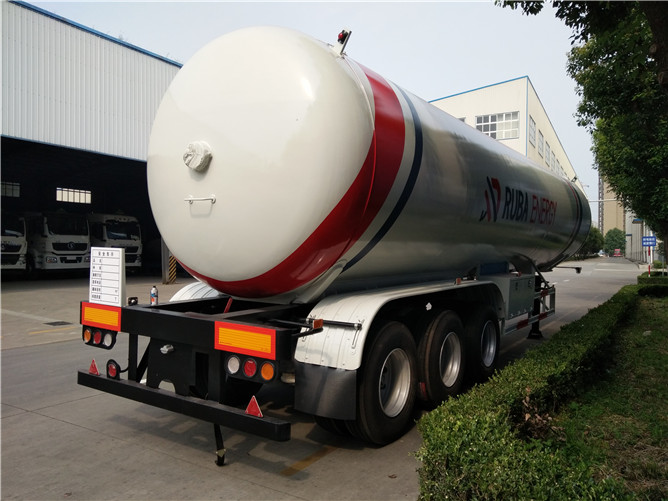

Pictures

Related plants are also provided as below
1. LPG storage tank(aboveground, underground)
2. LPG tank truck(with pump or dispenser)
3. LPG filling station/plant(5m3 to 60m3 available)
4. LPG tank containers(20ft, 40ft)
FAQ
1. How long is the service life for the LPG tank trailer?
10 years as per design standard
2. Do you have operation manual?
Yes, English version is offered and also with operation vedios to support you
3. How about the after-sale service?
We will offer technical support or replace the part during one year warranty period
