Model number: YJ-1C27

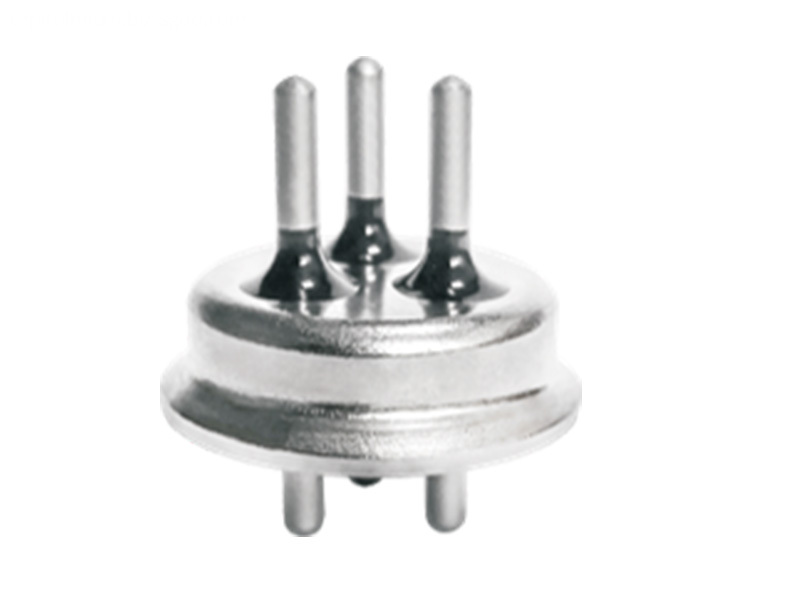

Application field: micro compressor, each compressor glass-metal sealing terminal is composed of a metal base, a number of steel needles and glass body, the glass body is mainly made of customized sodium barium glass, has high electrical insulation, according to customer needs, we can customize the length of steel needles, top weld Angle and so on.
Product advantages:
Our glass - metal seal products for compressors have a variety of excellent performance;
High sealing;
High electrical properties.
Technical parameters:
CAP:
Minimum outside diameter: 20.2mm
Maximum outside diameter: 23.3mm
Thickness: 1.25mm
PIN:
Material: Iron - chrome
Diameter: 2.3mm
Length: 27mm
Welding sheet:
External: PIN
Internal: PIN
Minimum distance:
Surface distance: space distance:
External: 2.6mm External: 2.6mm
Inside: 2.0mm Inside: 1.2mm
Insulation resistance: 1000MQ/DC500V
Resistance voltage: AC1000V/ s
Working conditions:
Voltage: Current:
< 300V < 15A
If you are interested in the product, contact 2bvideo.com for more information for more information
