1920*1080P AHD Side View Camera 360° Adjustable Angle IR Night Vision Waterproof Vehicle Camera 12V For Pickup Truck Trailer RV
Product Specifications
| Brand Name |
SANAN |
Model |
SA-MA20M19 |
| Origin |
Mainland China |
Resolution |
1920*1080P |
| View Angle |
140° |
Guiding Line |
no |
| Lens Material |
Plastic + Glass |
Length of Video Cable |
2m |
| Shell Material |
aluminium alloy |
Material Type |
Abs |
| Wire or Wireless |
Wire |
Camera Type |
AHD Camera |
| Alarm Type |
Vehicle Backup Cameras,ACCESSORIES,Rear Side |
Compatible Device |
Comaptble with AHD Monitor or AHD MDVR |
| Camera Voltage |
12V |
AHD Module |
PAL default |
| Waterproof |
IP68 Waterproof |
Mirror Image |
Default Mirror Image |
| Night Vision |
IR Night Vision |
Shockproof |
Support shockproof |
| Connector |
4PIN Aviatiion Connector |
Fit for |
12V cars/ truck/ bus monitor |
Camera configuration
The camera only can work with AHD monitor or AHD DVR, in order for the camera to work properly, please ensure that your monitor or DVR also meets the following conditions:
1. It must support PAL module, and you need to set the module as PAL when connecting our camera.
2. It must support 1080P camera, and you need to set the image pixels as 1080P when connectiong our camera.
3. The output voltage of monitor or DVR must be 12V.
4. The connector must be 4PIN aviation connecotor.
1920*1080P AHD Camera
AHD(PAL) technology and 1080P metal glass Lens, giving you a sharp, clear and colorful image while driving.
Install on Left and Right Side
Easy installation, just fix it on left and right side for bus or big truck. With 360 degree rotatable lens and mount, the camera can provide left or right side blind spots viewing for safe driving.

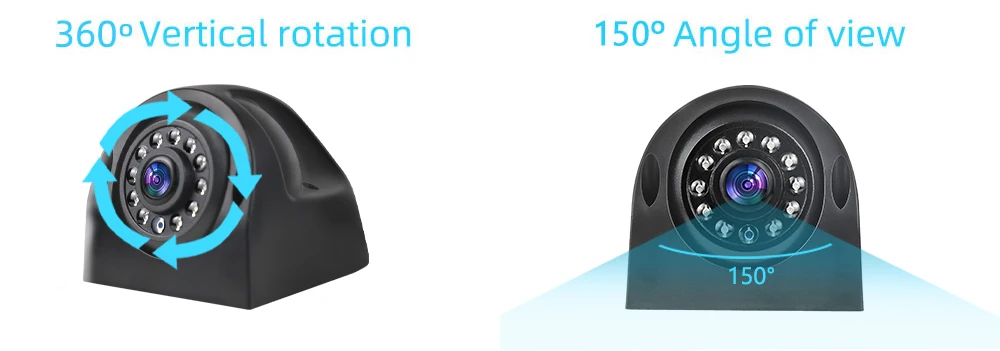

360º Rotation, 150º View Angle
The camera support 360º Rotation and 150º View Angle, easy to cover more bline spots for left and right side.
Clear IR Night Vision
With F1.8 large aperture, 11 IR LEDs and AHD technology, the camera can see everythingclear even in darkness or low light conditionsat night.
Default Mirror Image Design
With mirror image design, this camera is mainly used for left/ right side view monitoring. If you do not need mirroring function, you can choose factory non-mirror design or use an AHD monitor or DVR to change the mirror image.
IP68 Waterproof & Shockproof
Using high-strength metal shell, glue-filling technology, shockproof materials and design, support IP68 waterproof and shockproof. Make it easy to be durable and lasting for years.
4 PIN connector of cable, not easy to pull out
