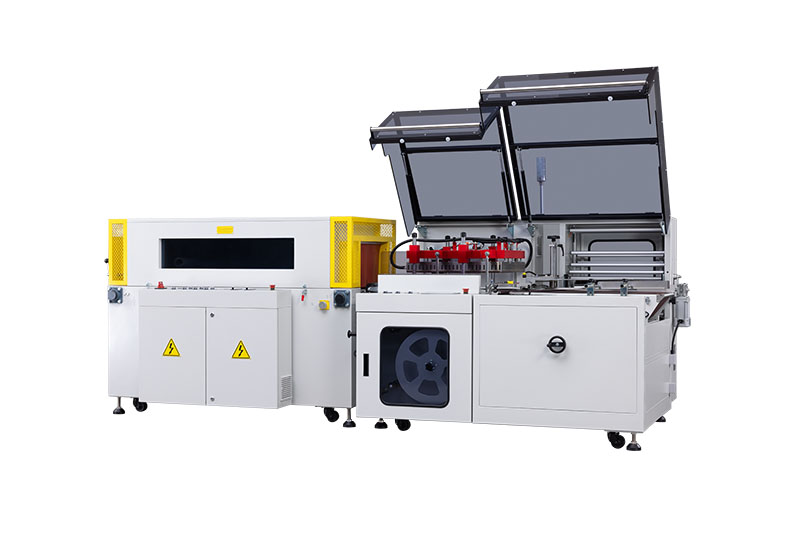

Vertical L-Bar Sealer and Shrink Tunnel
Vertical L-bar Sealers Technical Features

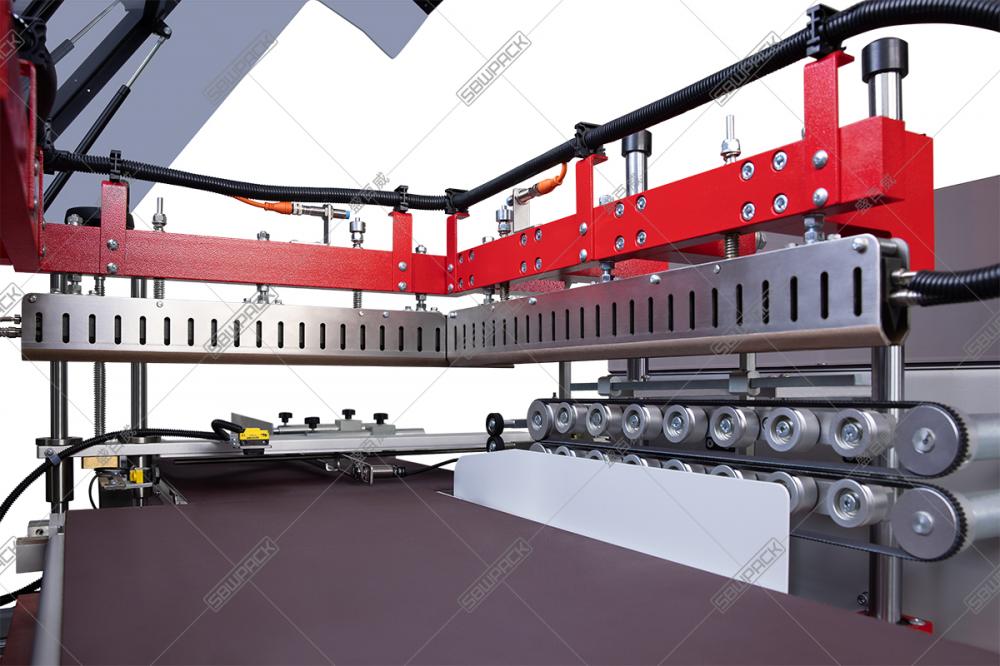

L-bar sealing blades vertically driven by cylinder, ensuring the seams in the center of products with less wrinkles. Suitable for packing large-sized products and those requiring better shrinking effect.
One-piece heat-resistant alloy blades, Dupont Tefloncoated, anti-adhesive and easy to clean.
Packing size adjustable, no need to change module or bagging former and the sealing openess adjustable by motor.
Shrink Tunnel Technical Features
Blowing system installed below with the whole shrinking process visible through the observation window.
Conveyor speed and air volume controlled by inverters, wind whole opening and blowing direction adjustable.
Chamber can be opened, easy for cleaning and maintenance.
| Model | FL-4535TBD | FL-5545TBD | SM-5030LX |
| Machine Dimensions (mm) | 1520×1180×1170 |
1850×1350×1300 |
1872 X 1035 X 1305 |
| Tunnel Chamber Size L(mm)/ | / | / | 1500 X 500 X 300 |
| Max Packing Size (mm) L+H(mm) H | ≤400 | ≤500 | 1300 X 400 X 250 |
| Max Packing Size (mm) W+H(mm) H | ≤300 | ≤400 | / |
| Max Sealing Size LxW (mm) | 450 X 350 | 550 X 450 | / |
|
Packing Speed (pcs/min)
Conveyor speed（m/min） |
20~35 | 20~35 | / |
| Capacity (pcs/m) | / | / | 0~20 m/min |
| N.W. (kg) | 600 | 800 | 650 |
| Power (kw) | 2.5 | 2.8 | 16 |
|
Power supply |
1PH 110V/220V 50/60Hz | 1PH 110V/220V 50/60Hz | 3PH 220V380V 50/60Hz |
|
Air pressure （kg/cm2) |
6~8 | 6~8 | / |
| Applicable Film | POF | POF | POF/PE |
Scope of Application
Suitable for the packing demands of the mass prodution in industries such like electronics, hardware, plastics, software, food, printing, pharmaceuticals, floors and other construction materials.
Application films: POF/PE.
Vertical L-shaped Sealing Machine Optionals
Kissing Device HMI Safety Door Switch Transaprent Material Detection Easy-to-tear Mouth
Printed Film Detection S/S Machine Frame /Customized Painting Specific Electric/Pneumatic Brands
