BMC mix machine

BMC mix machine

2 year ago

42 0

Laizhou Parkson Machinery Technology Co., Ltd.

 2 year year

Product details

The DMC kneader is a type of equipment used for mixing, kneading, plasticizing, and dispersing solid, semi-solid, or viscous materials. It is widely used in industries such as plastics, rubber, food, and chemicals. The main parameters of the DMC kneader include:

1. Volume: Usually measured in liters (L), indicating the size of the kneader's capacity.

2. Main shaft speed: Measured in revolutions per minute (rpm), affecting the uniformity and efficiency of material mixing.

3. Heating method: Common heating methods include electric heating, steam heating, etc.

4. Kneading method: There are different configurations such as twin-axis, multi-axis, etc., chosen based on material characteristics and process requirements.

5. Motor power: Measured in kilowatts (kW), affecting the driving capacity and work efficiency of the equipment.

6. Dimensions: Including length, width, and height measurements, used for equipment installation and space planning.

7. Weight: Measured in kilograms (kg), affecting the transportation and installation of the equipment.

8. Control system: Can be manual, semi-automatic, or fully automatic, selected based on operational needs.

Please note that specific parameters may vary depending on different manufacturers and models. It is recommended to consult the equipment supplier directly for detailed information.

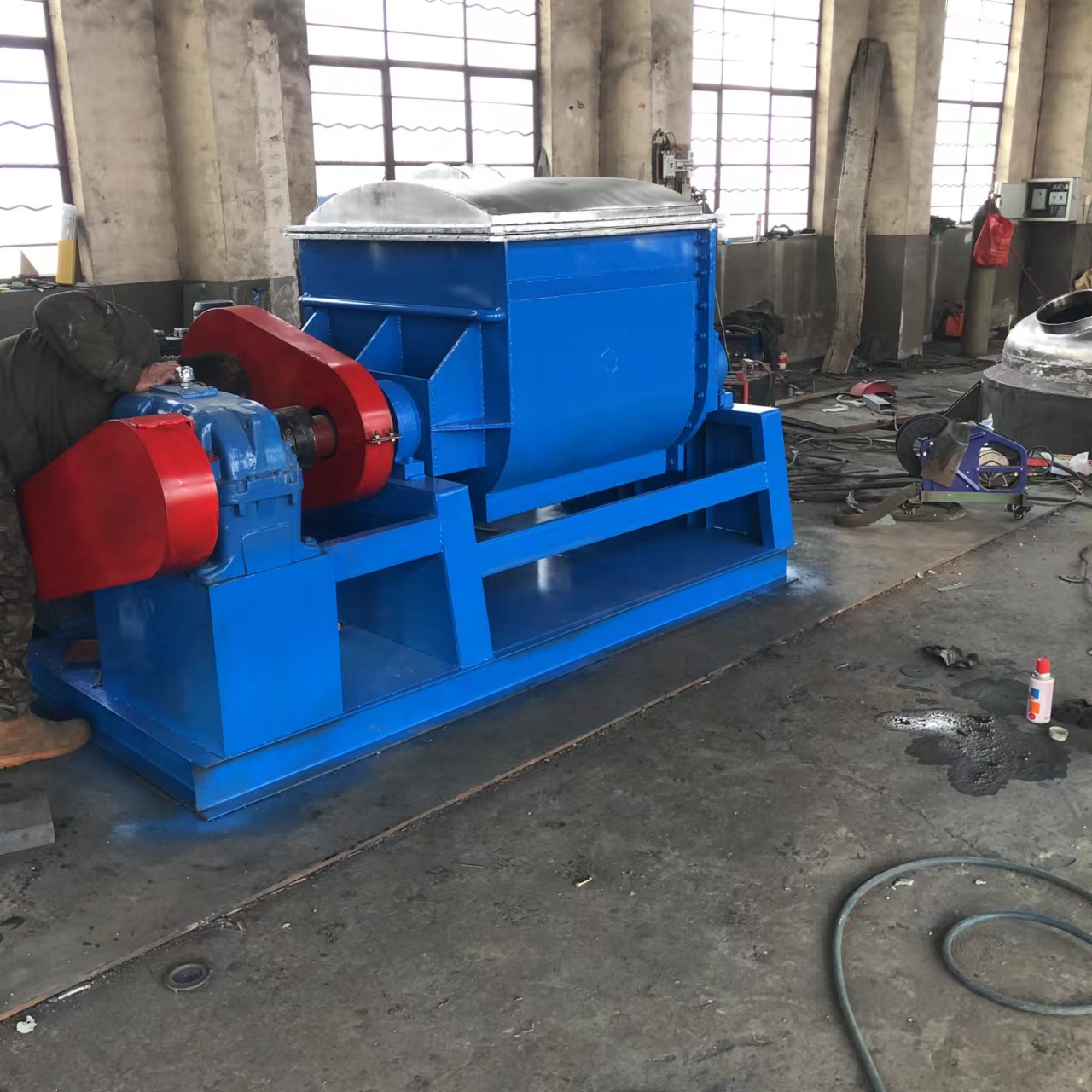

300L kneading parameter configuration
1	capacity	300L
2	bunker	Spiral feeding, not embroidered steel quality
3	The hopper motor	1.5kw frequency conversion speed regulation
4	curb plate	16mm carbon steel composite 3mm stainless steel (304)
5	Cover opening and closing mode	The curved cover is hydraulic ically open and closed
6	Discharge method	Hydraulic turning cylinder discharge
7	Pitch speed	30r/min--25r/min
8	Reducer box model	The cylindrical gear reducer cross slide connection
9	Motor brand	ZLY200 Hard tooth face reducer
10	motor power	11.5kw
11	Hydraulic station power	1.1kw with solenoid valve, voltmeter, etc
12	Electrical control configuration	Combine electrical cabinet, voltmeter, emergency stop button, host forward and reverse control, reset control,.
13	bearing	High-quality centering roller bearing
14	seal	Tefluoride seal
15	Machine weight is about	2100kg
16	outline dimension	220012001300

Our company produces Pe Thin Film Separator and Smc Film Removal Machine also Smc Film Tearing Machine. Welcome to consult!
