1.45 ton Stand-on compact loader main information:
Specification:
* Load weight: 454kg
* Tipping capacity:1298kg
* Kubota D902 11.8kw/ D1105 14.2kw for option
* Closed system

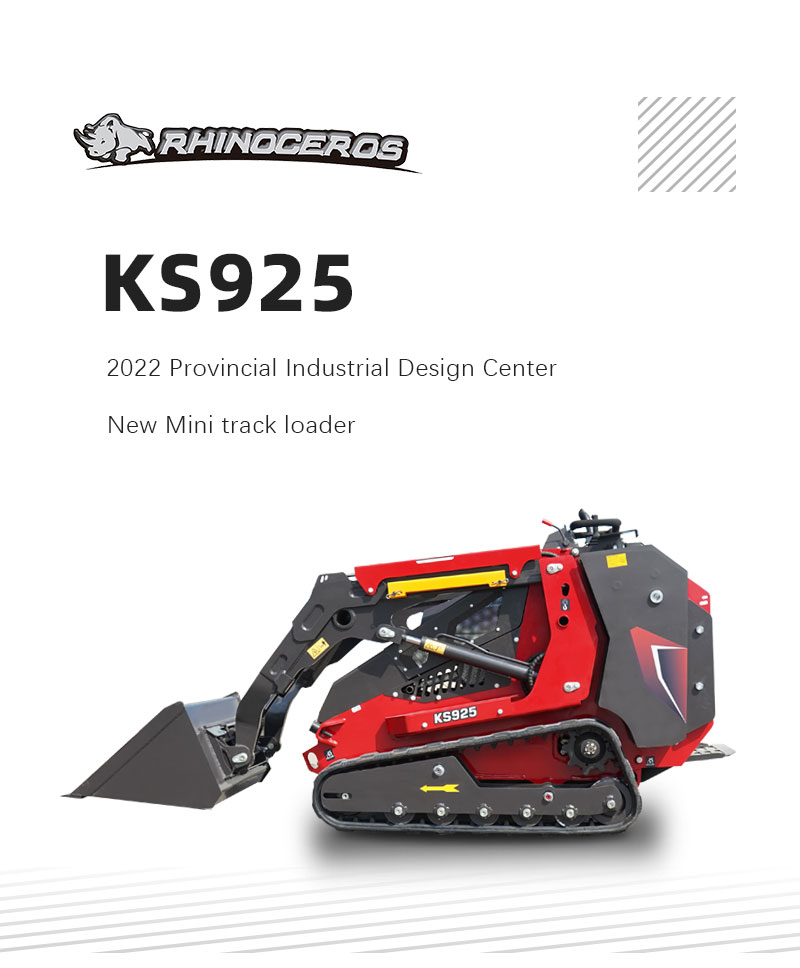

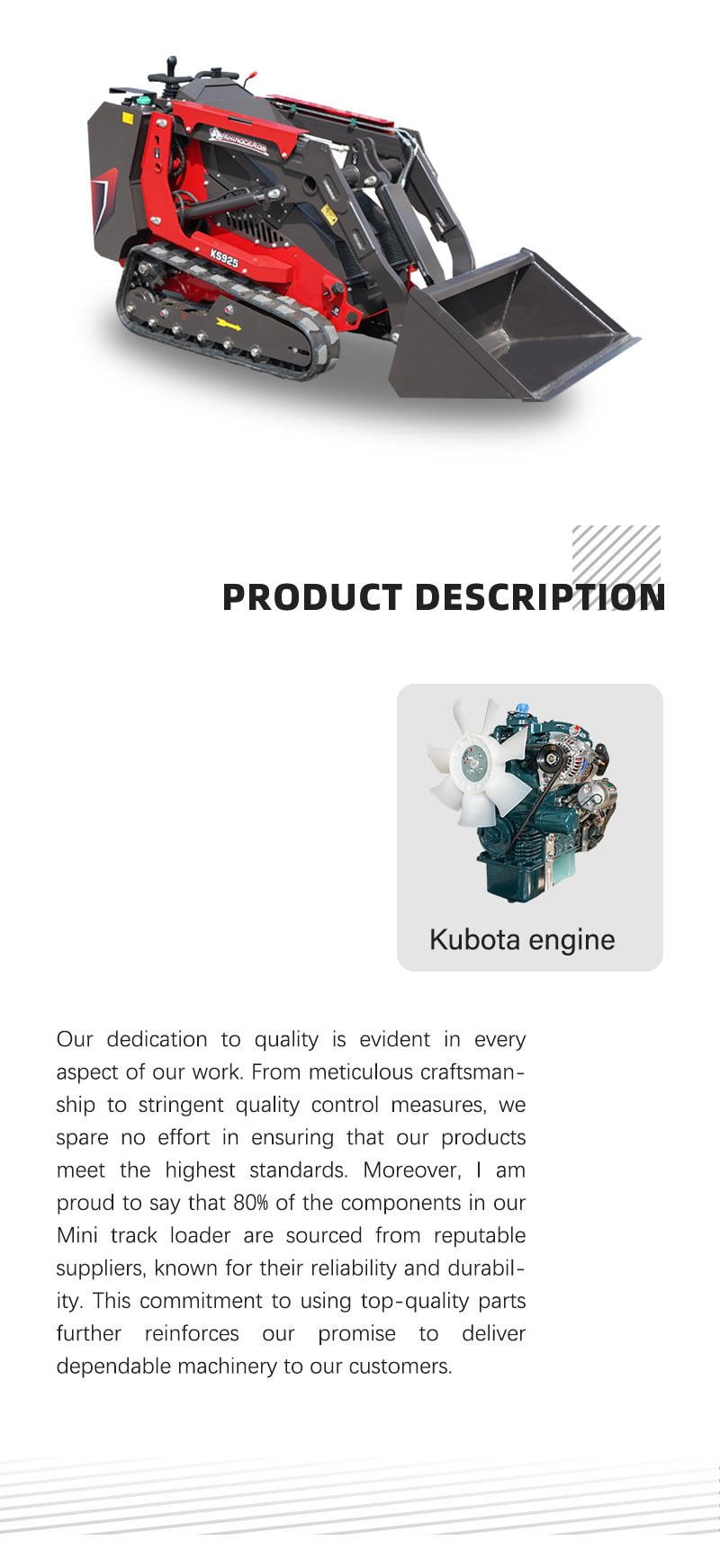

Rhinoceros mini skid steer loader KS925 pictures:
Key words: mini skid steer loader;skid steer loader,crawler skid steer loader,compact steer loader
Details of Rhinoceros KS925 skid steer loader:
|
Main Demension |
METRIC |
U.S. |
|
Machine weight (no attachment,fluids full) |
1450kg |
3196.7lb |
|
Operating capacity |
||
|
35% tipping capacity |
454kg |
1000lb |
|
Tipping capacity |
1298kg |
2861.6lb |
|
A Max. Operating height |
2980mm |
117in |
|
B Max. Hinge pin height |
2210mm |
86.5in |
|
C Overall height |
1420mm |
56in |
|
D Overall length (with standard bucket) |
2980mm |
117in |
|
E Overall length (without attachment) |
2120mm |
83.5in |
|
F Wheelbase |
1180mm |
46.5in |
|
G Unloading height |
1750mm |
69in |
|
H Max. safety distance |
630mm |
25in |
|
I Min. ground clearance |
145mm |
5.7in |
|
J Angle of departure |
33° |
|
|
K Angle of approach |
25° |
|
|
L Distance of support roller center to pedal |
560mm |
22in |
|
M Angle of unloading |
25° |
|
|
N Max. horizontal pushing depth |
90mm |
3.5in |
|
O Overall width |
932mm |
36.7in |
|
P Chassis width |
920mm |
36.2in |
|
Q Track width |
180mm |
7in |
|

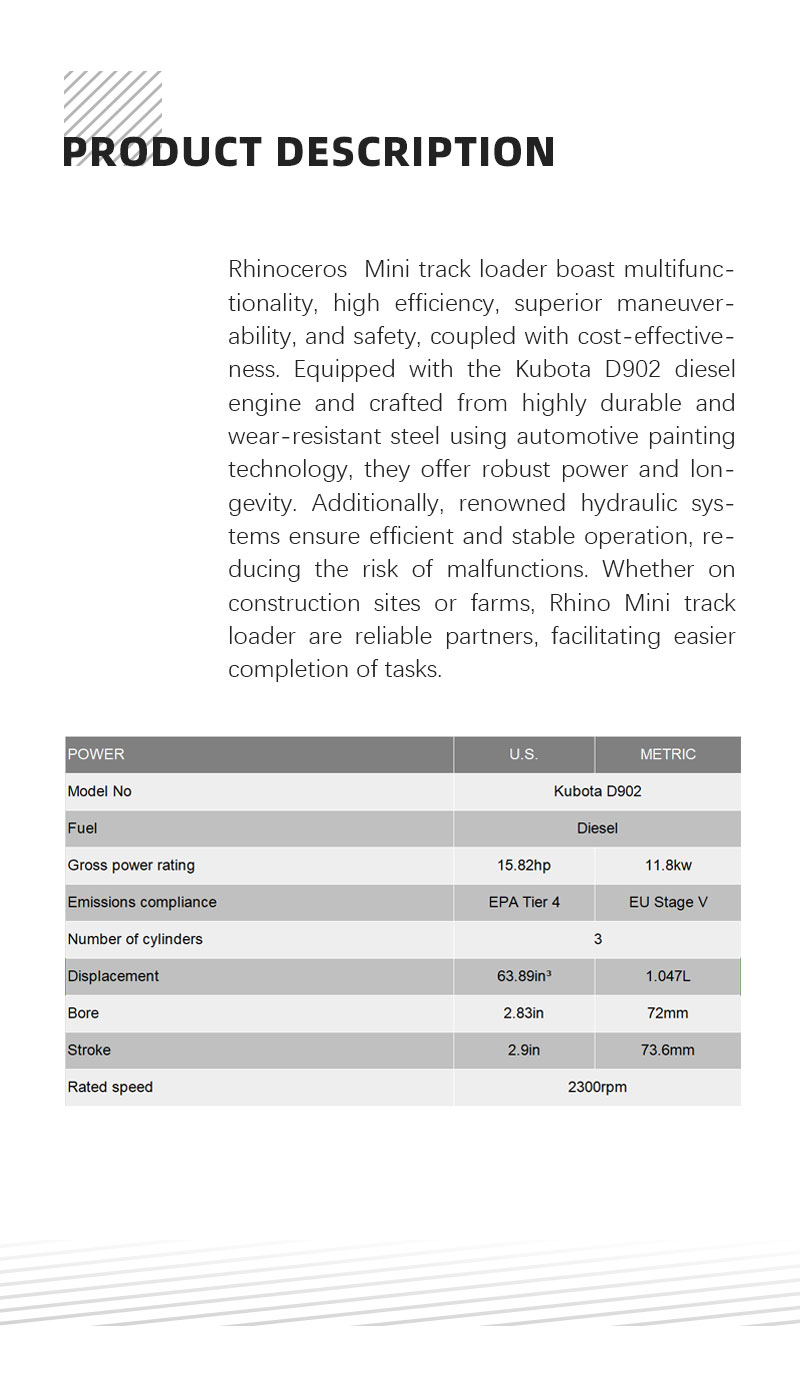

POWER |
METRIC |
U.S. |
|
Model No |
Kubota D902 |
|
|
Fuel |
Diesel |
|
|
Gross power rating |
15.82hp |
11.8kw |
|
Emissions compliance |
EU Stage V |
EPA Tier 4 |
|
Number of cylinders |
3 |
|
|
Displacement |
1.047L |
63.89in³ |
|
Bore |
72mm |
2.83in |
|
Stroke |
73.6mm |
2.9in |
|
Rated speed |
2300rpm |
|
|
OPERATION |
METRIC |
U.S. |
|
Ground drive speed |
|
|
|
Forward/Reverse |
5km/h |
3.1mph |
|
Ground pressure(ISO/CD 16754) |
|
|
|
7-In(180-mm)tracks |
0.33bar |
4.78psi |
|
HYDRAULIC SYSTEM I |
||
|
Auxiliary circuit |
|
|
|
Piston pump |
|
|
|
Flow rate |
89L/min |
40.4gpm |
|
Pressure |
200bar |
2900.75psi |
|
FLUID CAPACITIES |
||
|
Fuel tank capacity |
42L |
|
|
Lubricating oil capacity |
4L |
|
|
Hydraulic reservoir capacity |
40L |
|
|
BATTERY |
||
|
SAE reserve capacity rating |
110min |
|
|
SAE cold crank@ 0° F (-18°C) |
800amps |
|
|
Electrical system |
12V |
|
