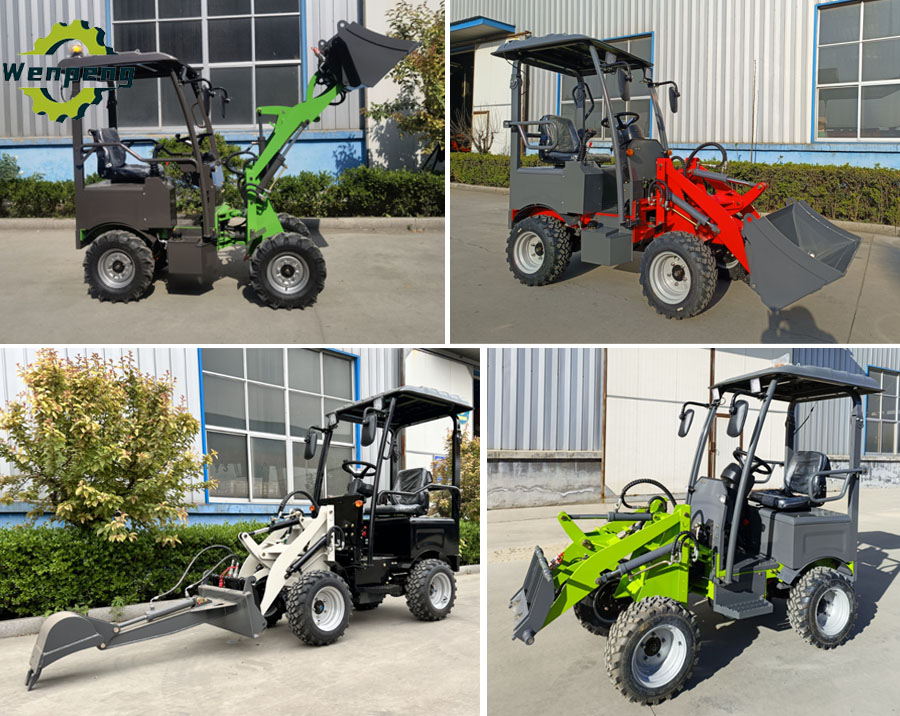

The 0.5ton battery wheel loader is an environmentally friendly and efficient small-scale construction machinery designed for urban construction, landscaping and small construction projects. It uses a battery-driven system and has the function of quickly changing accessories to meet a variety of operating needs.
Wenpeng Machinery Factory Direct Sales, Favorable Price. The product complies with CE standards and has 1 year warranty. In addition, we also produce and sell diesel wheel loaders, skid loaders, excavators and accessories, etc., to provide you with one-stop service.
| Model | WL400E | |
| Rated Load（t) | 0.5 | |
| Bucket rated capacity（m)³ | 0.2 | |
| Dumping height（mm) | 1350 | |
| （at 45°） | ||
| Lifting Height（mm) | 2100 | |
| Dumping Reach（mm) | 450 | |
| Max. Lifting weight（kg） | 400 | |
| Max. Excavation Force（kn) | 8 | |
| Max. Grade ability | 15 | |
| Max. Turning Angel | 28°±1 | |
| Swing degree of the rear axle | 3 | |
| Overall length（Bucket on Ground position）mm | 2900 | |
| Bucket width（overall width） | 900 | |
| Overall Height(mm) | 2070 | |
| Wheel base(mm) | 1387 | |
| Min Ground Clearance(mm) | 300 | |
| Net Weight（kg) | 1000kg | |
| Battery Model No. | 6-EVF-120A | |
| rated capacity（3hr) | 120Ah（Optional 150Ah） | |
| No.of battery groups | 5 | |
| Rated Voltage | 60V | |
| Working hours（h） | 4h(May be extended, needs testing) | |
| Hydraulic System | Motor No. | HL-60 |
| Voltage | 60V | |
| Power | 1200W | |
| Displacement（ml/r) | 14 | |
| Tyres | Type | 6.00-12(Optional widening 23*8.5-12） |
| working pressure（mpa) | 0.25 | |
| Qty | 4 | |
| Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | |
| Type of Steering Pump | External Gear Pump | |
| Steering Cylinder Bore（mm) | 50 | |
| Qty（pc） | 1 | |
| Service Brake | Drum Brake | |
| Brake Drum（mm) | 200 | |
| Parking Brake | Drum Brake | |
| Distribution Valve | Model | DL10 |
| Type | Triple valve stem | |
| Dumping Cylinder-Bore | ø50 | |
| Lifting Cylinder-Bore | ø50 | |
| Hydraulic Oil Tank（L) | 11 | |
| Brake Fluid（L) | 0.8 | |
