Use:

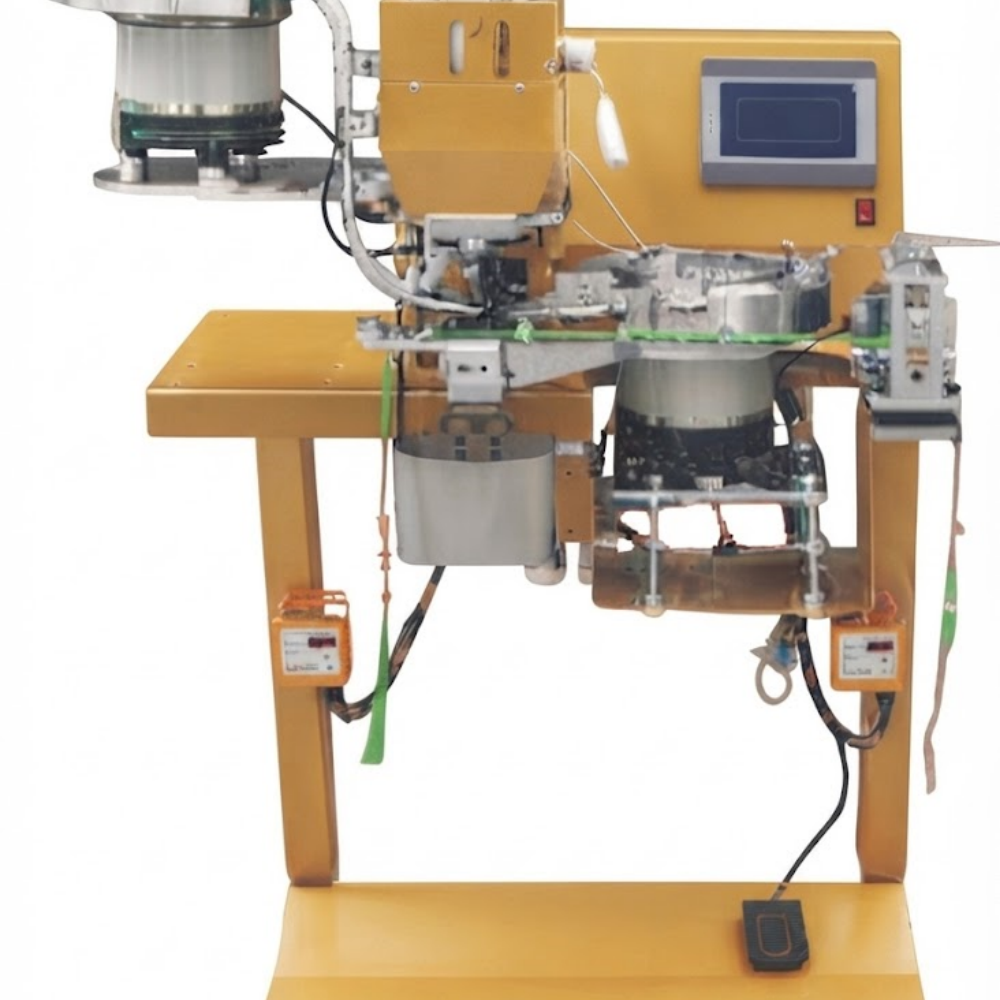

The KD-98-A1-Q upgraded fully automatic button attaching machine features automatic feeding, punching, upper button attachment, and lower button attachment in one complete process.[Suitable for various applications including double-sided, single-sided, single-sided decorative buttons, and materials with or without holes. Ideal for bags, shoes, clothing, hats, sweaters, curtains, woven bags, shoulder straps, belts, leather goods, lace, awnings, etc.]
Features:
1. This machine features a human-machine interface, making operation simple, convenient, fast, and stable.
2. It uses a stepper motor for automatic feeding, resulting in faster, more accurate, and stable feeding.
3. The machine offers both automatic and manual feeding options.
4. It combines pneumatic and mechanical structures for excellent stability.
5. This machine can handle various types of buttons, including large buttons, diamond buttons, eyelet buttons, and flower buttons.
6. Buttonhole inner diameter: 3.5-17 mm (Note: Bottom buttons must be machine-pressed).
7. The machine is equipped with a sensor device; adjusting the tightness of punching or button pressing does not require a wrench, only adjusting the sensor position, making it convenient, simple, and fast, thus improving work efficiency.
8. A waste bin is added, allowing waste materials to fall directly into it, reducing pollution to the production environment and promoting environmental protection.
Technical Parameters:

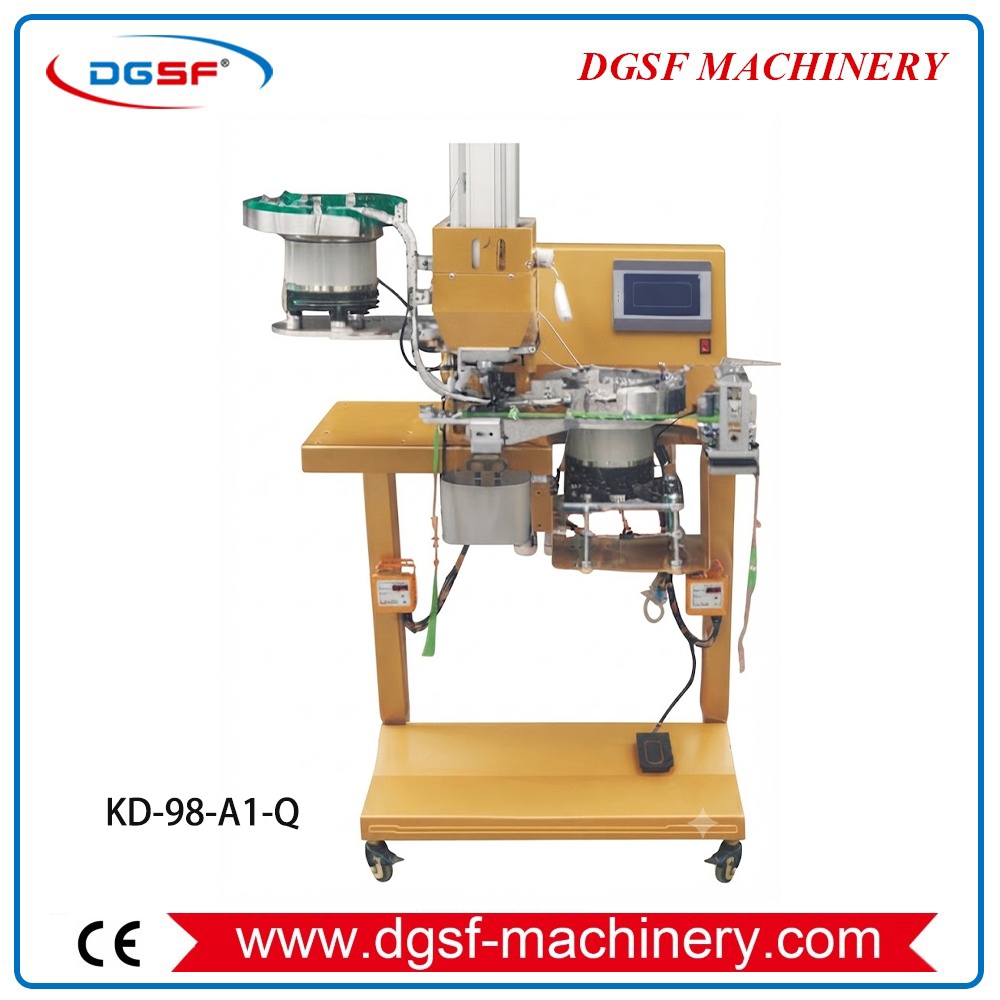

Equ Model：KD-98-A1-Q
VOLTAGE: 220V 50-60HZ
TOTAL POWER:≈0.65(KW)
Air Pressure:0.6mpa
DIMENSIONS(L*W*H):900×700×1400(mm)
NET WEIGHT:140(KG)
