1/4'' 2V025-08 Pneumatic Solenoid Valve With Flying Leads
Product Description:
Product Features:
1. The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
2. High quality sealing ring. High quality seals for durability and longer life.
3. High frequency sub-head. Made of high-quality conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation.
4. The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time.
5. High quality electronic components. The copper coil can work hard for a long time, and the wiring operation is simple.
6. Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.

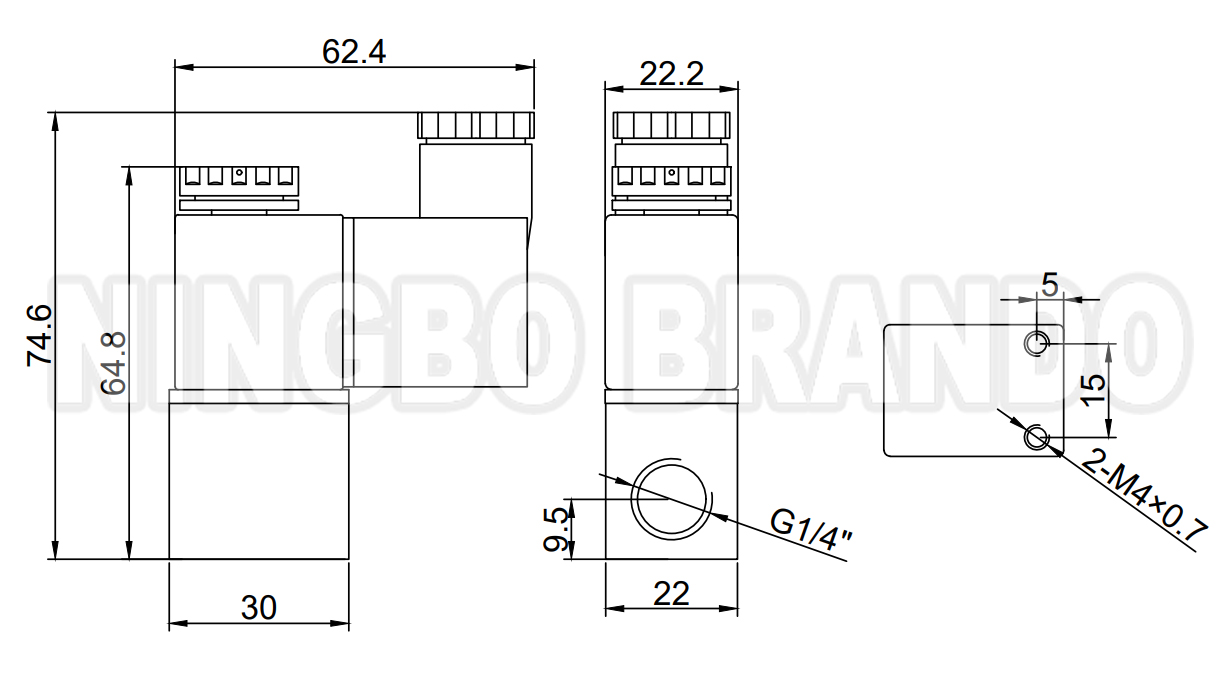

Main Dimension:
|
2V025-06 |
2V025-08 |
2V130-10 |
2V130-15 |
2V250-20 |
2V250-25 |
|
|
Acting Type |
Normally Closed |
|||||
|
Operation |
Direct Acting |
Internally Pilot Acting |
||||
|
Fluid |
Air, Water, Oil |
|||||
|
Orifice Size (mm) |
2.5 |
2.5 |
13.0 |
13.0 |
25.0 |
25.0 |
|
CV Value |
0.23 |
0.25 |
6.20 |
6.20 |
13.0 |
13.0 |
|
Port Size |
1/8 '' |
1/4 '' |
3/8 '' |
1/2 '' |
3/4 '' |
1 '' |
|
Viscosity Limit |
Under 20CST |
|||||
|
Working Pressure |
0~1.0 MPa (0~145psi) |
0.05~10 MPa (7~145psi) |
||||
|
Max. Pressure |
1.5 MPa (215psi) |
|||||
|
Material Body |
Aluminum Alloy |
Brass |
||||
|
Seal Material |
NBR |
|||||
|
Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
|||||
Packing & Shipping:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
If you are interested in the product, contact 2bvideo.com for more information for more information
