Though elastic band is very common use now. It is hard to find automatic solutions for sewing elastic with an industrial sewing machine.
One way is to attach the elastic to the edge (with a interlock or over-lock machine), and the other way is seaming a casing and threading it through(we have double needle IH-8722DP for such application).
Now people are eager to obtain automatic sewing machine for simple sewing tasks. Here we introduce the automation of elastic band cut and sew all in one solution. Soft elastic band is now popular because people want to wear comfortable dress without a belt.
The process of our machine to sew elastic band is mainly into 4 steps:

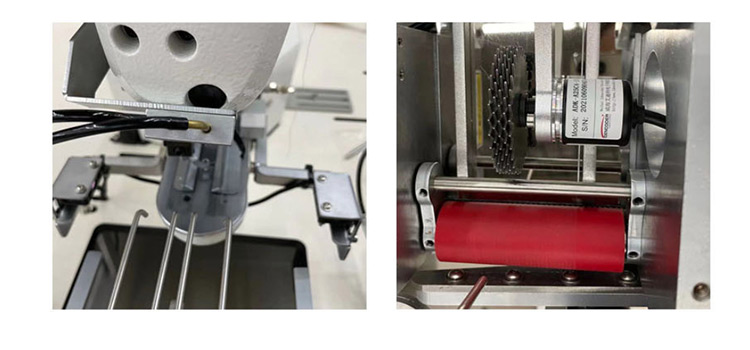

1. Set the elastic band on the feeding bracket (a motor specially designed for balance elastic material stretching),
2. Feed to automatic cutting machine for cutting into pieces in certain length set by operator;
3. Grab and sew the material with our bar tacking sewing machine specially for this project;
4. Turn table collecting certain amount of elastic band
1. Automatic anti folding function
Prevention of elastic band folding, in case it’s not doing the bar tacking. Protection of the presser foot, saving material when less error happened.

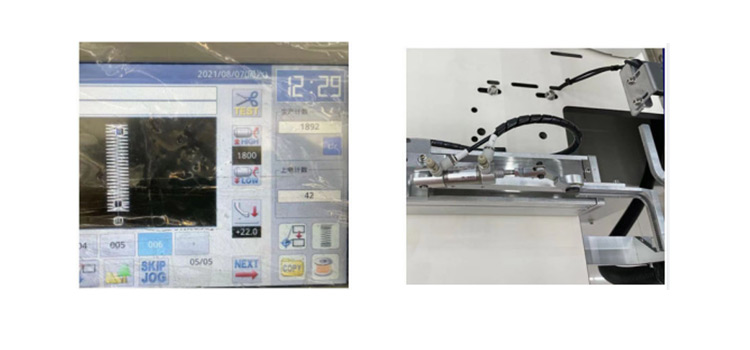

2. Automatic adjustment
Regular this automatic sewing machine industrial will take 20-30 minutes to adjust the the elastic band measure for starting to work. We applied automatic identification, measurement and adjustment function for plug and play operation.

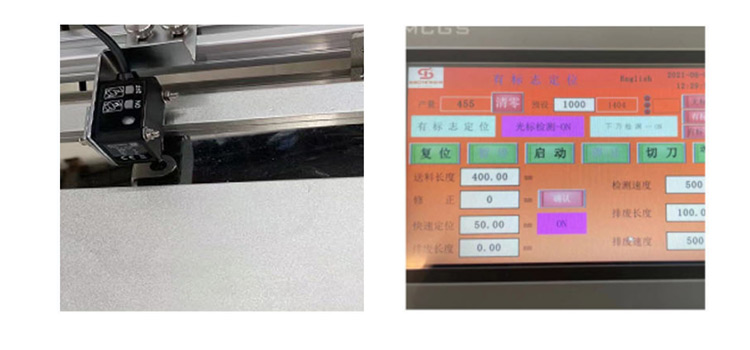

3. Automatic alignment

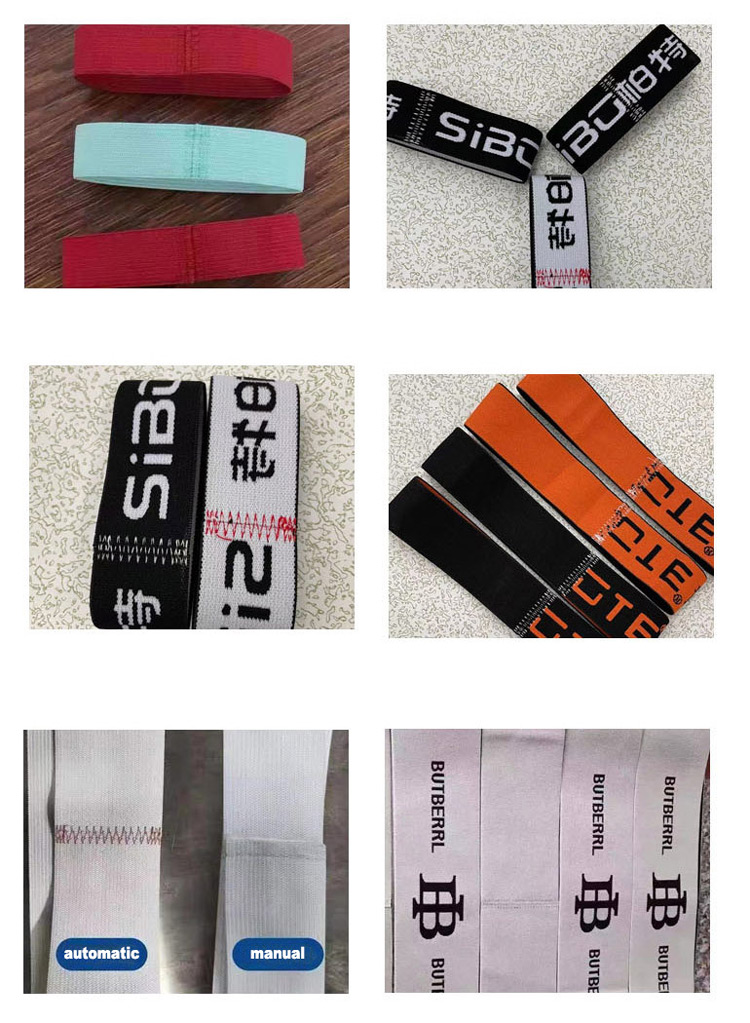

We are able to cut by the letter or logo alignment, then we can assure all material are same pattern, it can achieve high quality requirement. There are many sewing machine parts fitting to support the automatic working.
4. PLC program control
We are applying PLC program for better controlling and more stable operating. PLC uses storage logic instead of wiring logic, which greatly reduces the external wiring of control equipment, greatly shortens the design and construction cycle of control system, and makes maintenance easier.
5. Automatic counting & collecting
The system is supporting quantitative production,operator can simply set how many pieces per bundle on screen touch system, then the rotating collection board will turn when counting number is up.
6. SMC unit
SMC unit applied for different controlling function. The material of SMC is green and environment-friendly, with long service life, light weight, high strength, integrated molding and high safety.
Why choose our industrial elastic sewing of fully automatic solution?
• It’s hard to employ skillful workers for elastic band sewing, very difficult to high quality and efficient output;
• When applying automatic sewing equipment, factory can achieve sewing performance that competitive can’t, there will be easier to get massive orders done within time limitation;
• Automation is now customers’ 1st impression of production ability and technology power, big brands would love to trust and work with automatic solution equipped factories.
• ROI is better than manual operation, money will return later for your investment by reducing material waste and adding manpower saving.
Packing dimension:
• Machine part: 285kgs N.W., 360kgs G.W., packing 123*123*153cm wooden box.
• Feeding part: 30kgs N.W. 45kgs G.W., packing 193*47*27cm wooden box.
