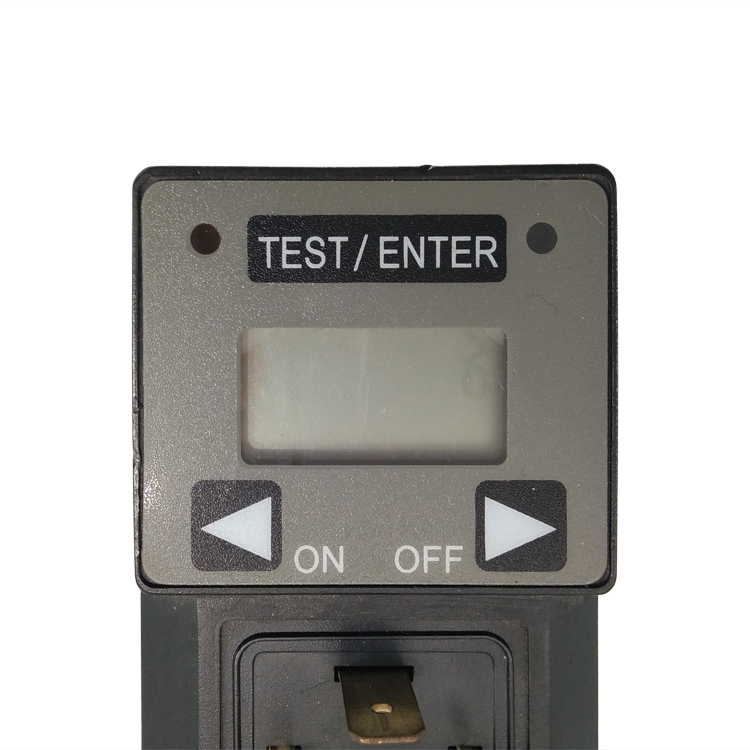

Air Compressor Auto Drain Solenoid Valve Adjustable Timer
Theory:Countdown
Usage:Timer Switch
Type:Mini
Operating Temperature:-10℃ to +50℃
Protection Class:IP65-EN 60529
Inrush Current:10A For 10ms
Duty Cycle:100%ED
Switch Life:3x10^8
Time ON:From 0.5 to 10s
Time OFF:From 0.5 to 45 min
Indicators:Yellow LED
Manual Override:Test
Termination:DIN 43650 Form A
Dimension of Adjustable Electronic Timer:
Technical Data:
Model Number
BT-720
Supply voltage
24..240V AC/DC-50Hz/60Hz for "CE" marked Timer
Absorption current
4mA Max
Operating temperature
-10℃ to +50℃
Class protection
IP65-EN 60529
Switch holding voltage
400V Max
Switch capacity
1A
Inrush current
10A for 10ms
Duty cycle
100%ED
Switch life
3x10^8
Time ON
from 0.5 to 10s
Time OFF
from 0.5 to 45min
Indicators
Yellow LED
Manual override
Test
Termination
DIN43650A
Customized Service
Provided, welcome show us sample or drawing
Details:
TEST Indicators
DIN43650A
Product Features:
Solenoid valve timers can be used to control your solenoid valves according to a desired schedule.
Most timers can be directly mounted on the solenoid valve coils via a DIN-A connector.
They can be used for example for air dryers, shower timers, condensate drains, lubrication systems etc.
We offer analog and digital timers, both suitable for AC and DC.
