Product details

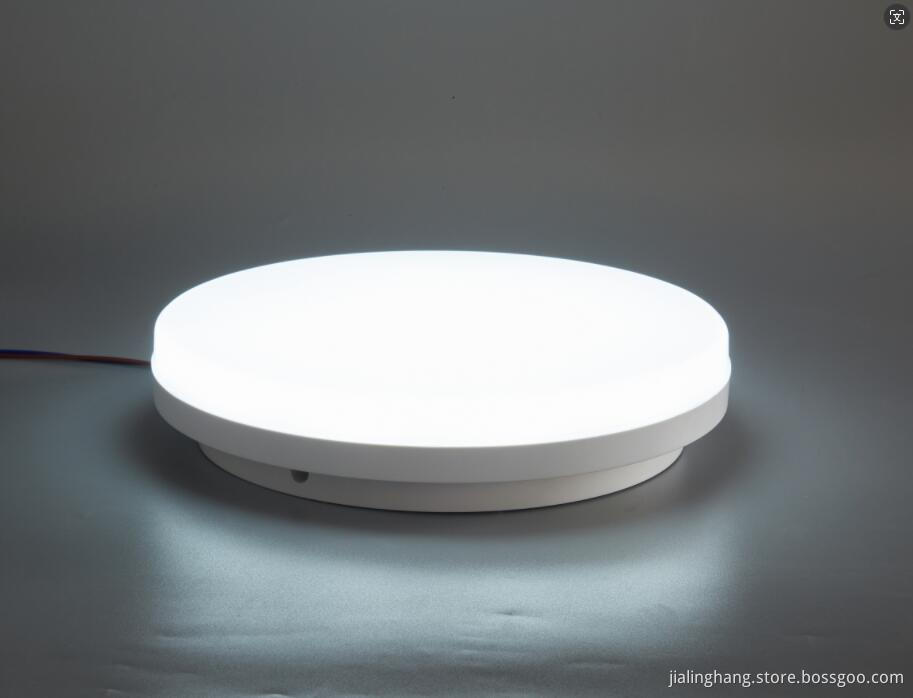

This lamp has passed the CB CE RoHS certification.This is an 18-watt ceiling lamp and also an emergency light. When the mains power is normal, it provides 18-watt illumination. In case of a sudden power outage, it will automatically switch to battery power supply and its brightness will drop to 9 watts. In emergency mode, the lamp cannot be turned off through the switch until the battery runs out or the mains power returns to normal, at which point the lamp will go out. In emergency mode, if you want to turn off the light, you can hold down the TEST button on the light body for 5 seconds, and then the light will go out.

This LED emergency lighting luminaire is equipped with a high-quality LiFePO4 battery. When the LED light is under normal illumination, this LED emergency is in a charging and standby state. In case of a sudden power outage, it will start up immediately. When the battery is fully charged, its emergency lighting time can reach 3 hours.

This LED emergency light has an IP65 waterproof rating and can be safely installed in bathrooms, saunas, and other damp places. Its installation method is ceiling-mounted.

Emergency Ceiling Light Feature

The self-check function of the system with annual inspection and monthly inspection.

Maintained / Non-maintained, can be used for normal lighting, can also be used for emergency lighting.

IP65 protection level.

High efficiency LED light source.The brightness reaches 100LM/W.

Voltage protection: wide voltage input AC85V-265V.

Emergency power is 50% of the main power.

Short circuit protection and no loading protection.

External test button and three-color LED indicator:

Green:Main power;Red:Charging;Yellow:Fault.

LED Emergency light Battery:

high capacity lithium ion battery with overcharge and over discharge protection.

The battery adopts BYD balanced charging scheme keeping the performance of each cell balanced.

The patented control circuit used in emergency driver,

which makes it faster in conversion and higher in efficiency of inversion.

The SMT technology ensures consistency of excellent performance of each product.

Fire-resistant plastic housing at the engineering level, and fire-resistant PC.

Product Specifications:

Main Power:	18W
Emergency power :	9W
Lumen:	1800lm
Input voltage:	AC220-240V
Size:	D280*65mm
CCT adjustable:	3000K/6500K/4500K
Battery:	LiFePO4 6.4V 3600mAH
Emergency time:	3 hours
Charge Time :	≤24 Hours
IP Grade:	IP65

Product Packing

Model	QTY/CTN (PCS)	G.W/CTN (KGS)	Outer Box Size（CM）	CBM/CTN (M3)
LED-X18W	10	15.5	69.529.530.5	0.06
