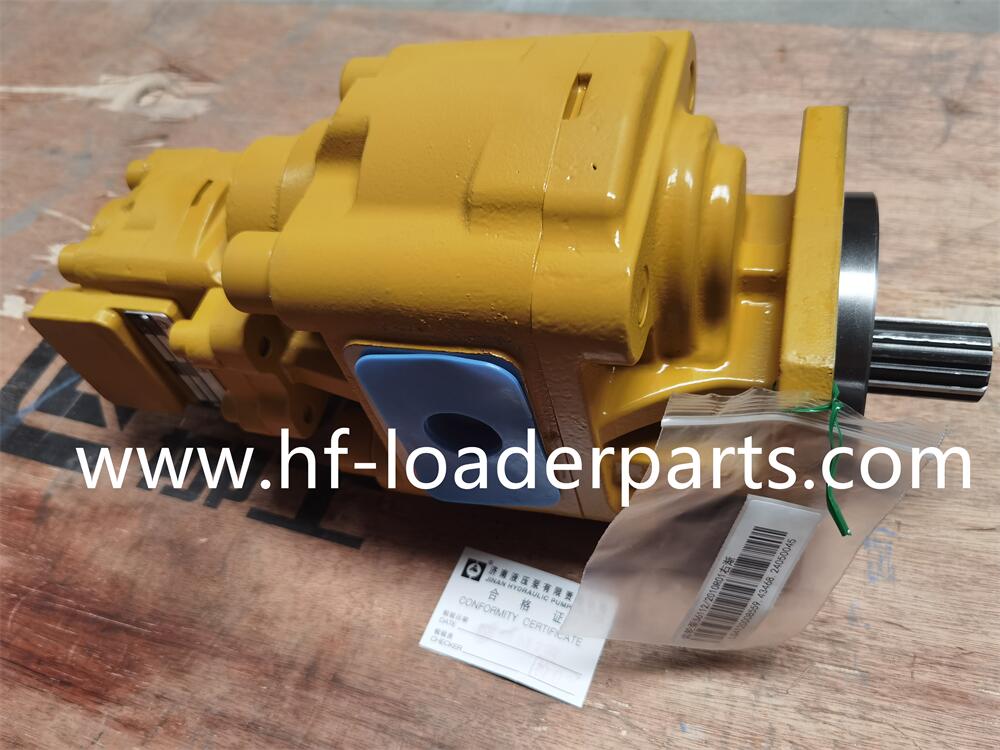

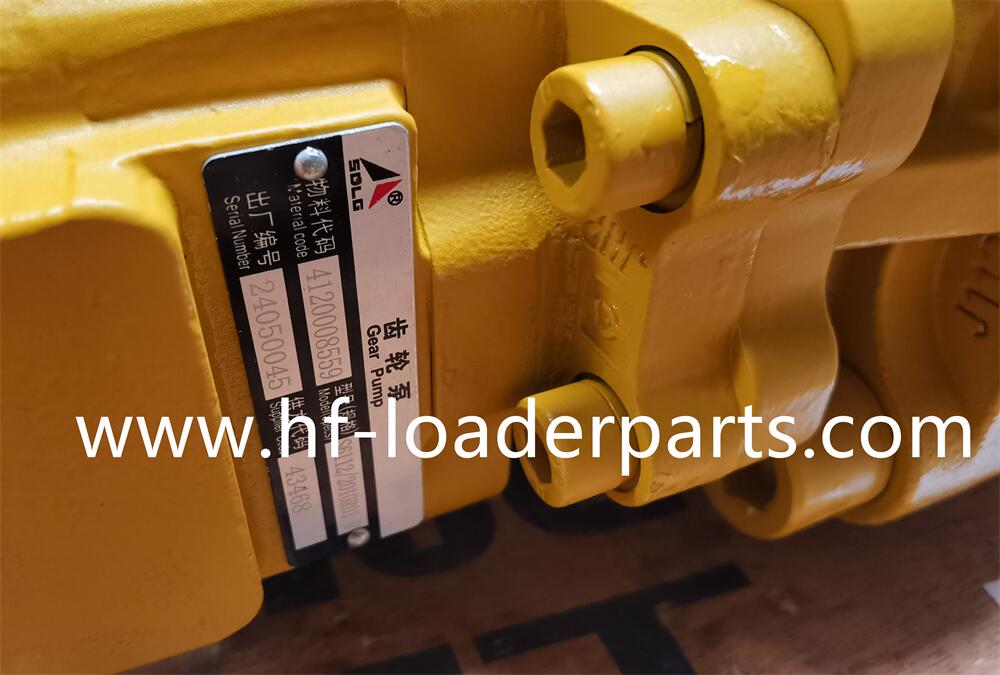

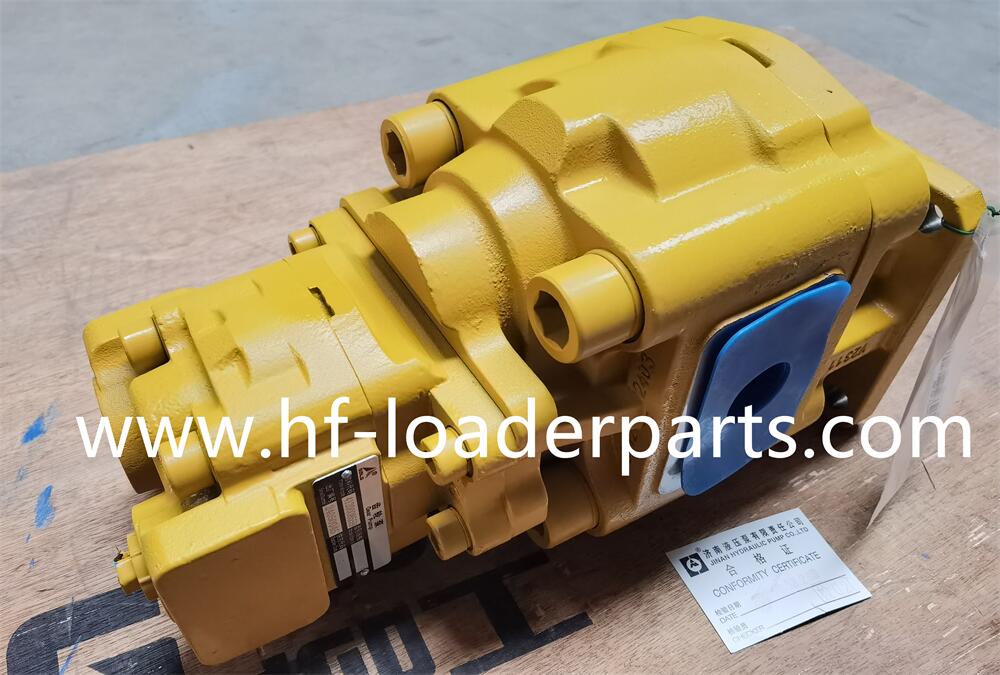

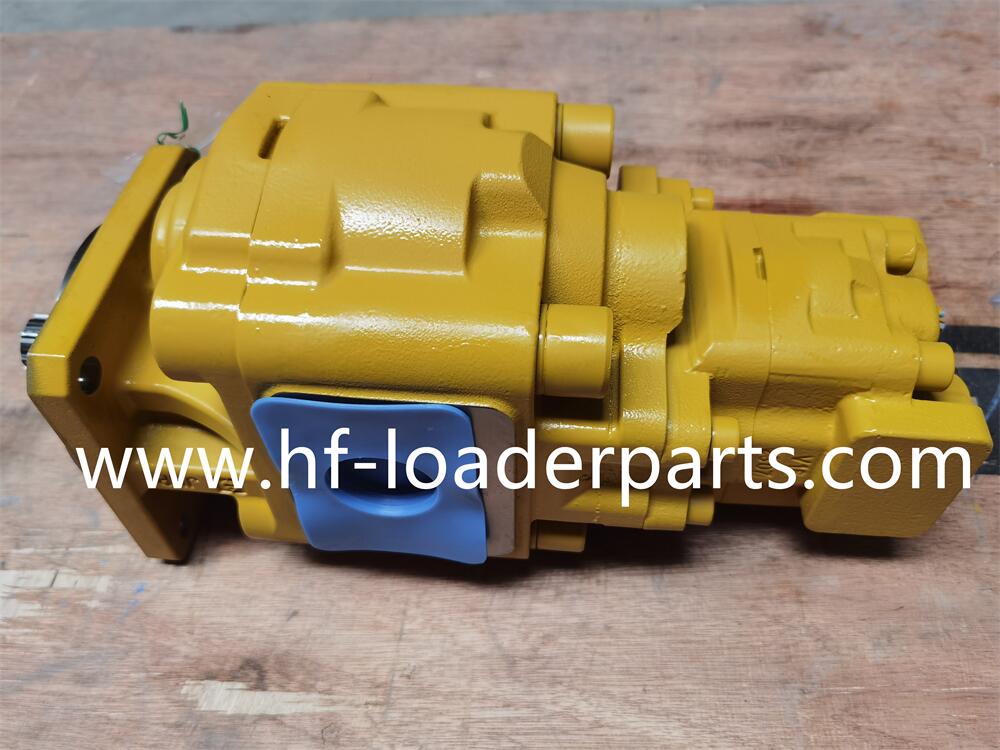

Introduction to the Model and Parameters of Gear Pump for Lingong Loader
1、 Introduction to the Gear Pump of Lingong Loader
The gear pump of the temporary loader is a commonly used hydraulic pump, mainly used to drive the hydraulic system to achieve the operation of mechanical devices. It consists of components such as a drive shaft, gears, and pump body. The basic working principle is that when the gear is driven to rotate, the gear teeth come into contact with the pump body wall, squeezing the liquid between the inlet and outlet to form a certain pressure, and pushing the liquid into the system to generate power.
2、 Model of gear pump for temporary loader
The main gear pump models used by the temporary loader are CBGJ series gear pumps, with specific models including CBGJ2063, CBGJ2080, CBGJ2095, etc.
The displacement of CBGJ2063 gear pump is 63ml/r, the working pressure is 16MPa, the axial force is 20KN, and the speed range is 500-2500rpm. It can be used for the LW422 model of temporary loader.
The displacement of the CBGJ2080 gear pump is 80ml/r, the working pressure is 16MPa, the axial force is 20KN, and the speed range is 500-2500rpm. It can be used for the LW500K model of the temporary loader.
The displacement of CBGJ2095 gear pump is 95ml/r, the working pressure is 16MPa, the axial force is 20KN, and the speed range is 500-2500rpm. It can be used for the LW640G model of temporary loader.
3、 Parameters of gear pump for temporary loader
1. Displacement of gear pump (ml/r): refers to the displacement of oil in the pump body per unit time, which characterizes the output capacity of the pump.
2. Working pressure (MPa): refers to the maximum working pressure that the pump can withstand, and when it exceeds this value, the pump will fail.
3. Speed range (rpm): refers to the speed range of the pump, and the upper and lower limits of the speed may vary slightly under different pressures. Generally, the selection should be based on specific working conditions and usage environment.
4. Axial force (KN): refers to the axial force borne by the pump. The larger the axial force value of the pump, the more compact and durable the pump structure is.
Based on usage, users can choose the appropriate gear pump model for temporary loaders according to their actual needs and models, to ensure the operation of the loader.
