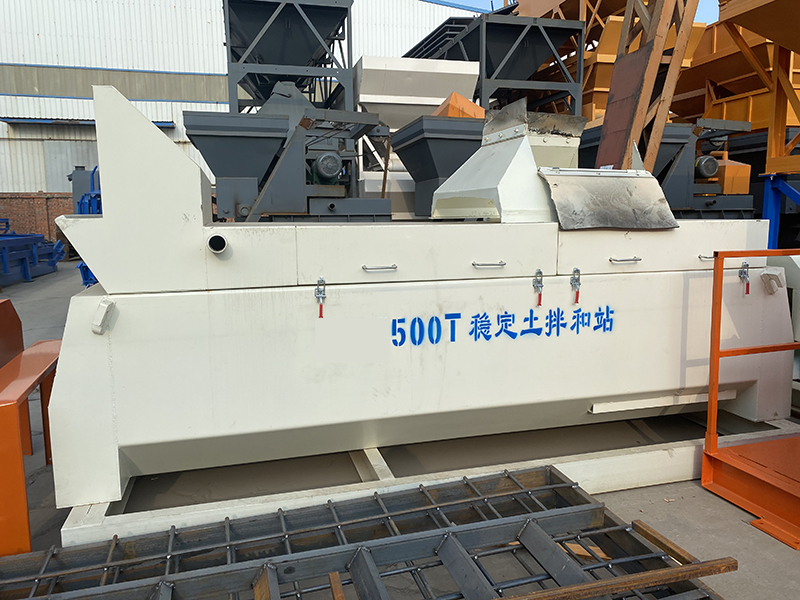

Road machinery 300-800T/H Stabilized Soil Mixing Plant is also known as water stabilized mixing plant, its name comes from the fact that its main function is to produce water stabilized soil. Water-stabilized soil refers to the mixing of soil with a certain proportion of water mud, lime, sand, slag powder and other materials after mixing and made into a new type of pavement material. Water stabilized mixing plant is

a kind of equipment for producing water-stabilized soil, and its structure contains material The structure of the plant consists of silo, conveying system, distribution system, metering system, mixing system, control system and other parts. mixing system, control system and other parts, which can automatically complete the It is capable of automatically completing the whole process of material measuring, mixing, blending and transferring.

Stabilized soil has a wide range of applications and an important position in modern transportation construction and municipal construction. It has a wide range of applications and an important position in modern transportation construction and municipal construction. Water stabilized mixing plant The emergence and development of water stabilized soil mixing plant promotes the production process of stabilized soil and improve the production process of stabilized soil, which provides a strong support for the construction of transportation projects and municipal construction of transportation and municipal engineering provides a strong support for the modernization of urban It makes an important contribution to the modernization process of the city.Concrete Batching Machine and cement silos

Road machinery 300-800T/H Stabilized Soil Mixing Plant Parameters

Model	WCD300	WCD500	WCD600	WCD800
Rated production capacity	300t/H	500t/H	600t/H	600t/H
Total power	110KW	158KW	168KW	228KW
Type of measuring	Volume	Volume	Volume	Volume
Aggregate	±3%	±3%	±3%	±3%
Soil	±2%	±2%	±2%	±3%
Lime powder, Coal ash	±1%	±1%	±1%	±3%
Cement	±1%	±1%	±1%	±2%
Water	±1.5%	±1.5%	±1.5%	±1.5%
Max motor power	45KW	75KW	90KW	90KW
Aggregate Diameter	≤±60mm	≤±60mm	≤±80mm	≤±60mm
Area covered	45×17㎡	50×18㎡	52×22㎡	58×26㎡
Total weight	39t	51t	54t	40T
Mode of Speed regulation	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic

Stabilized Soil
