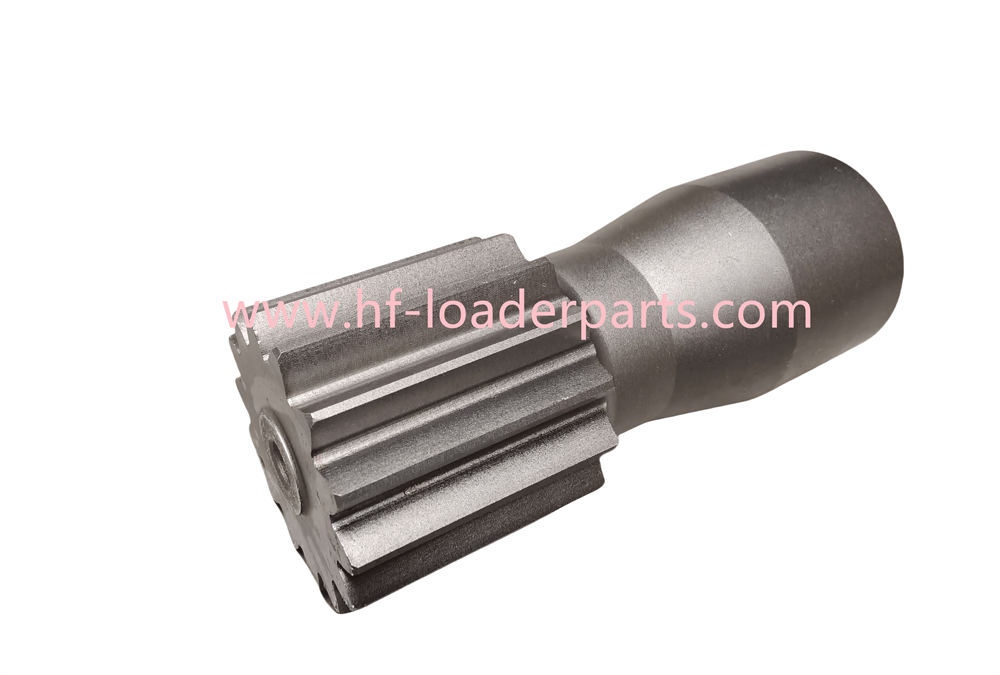

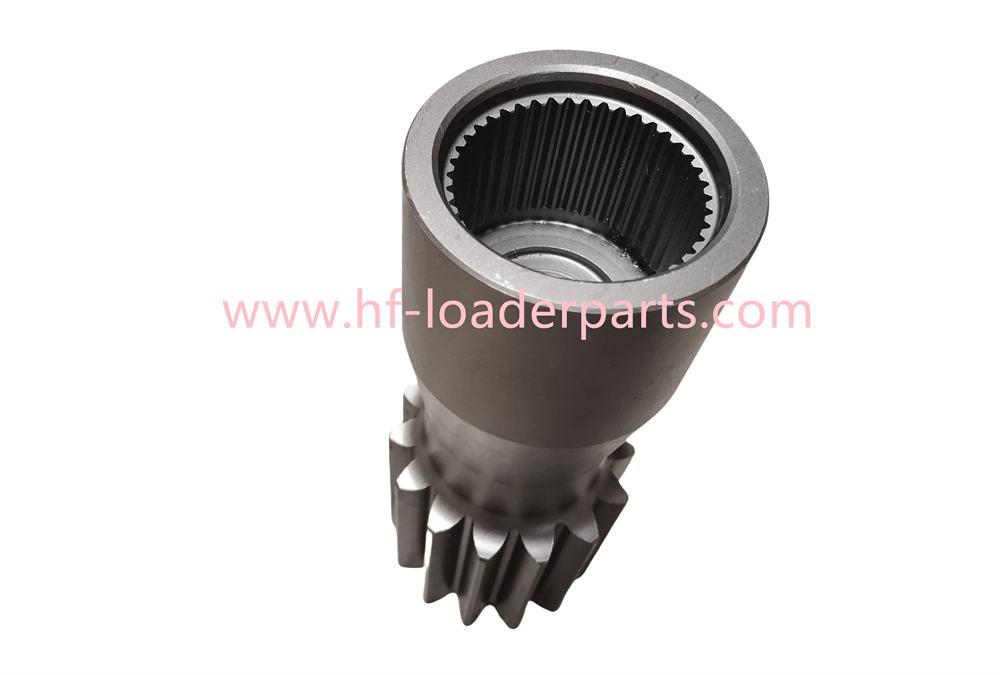

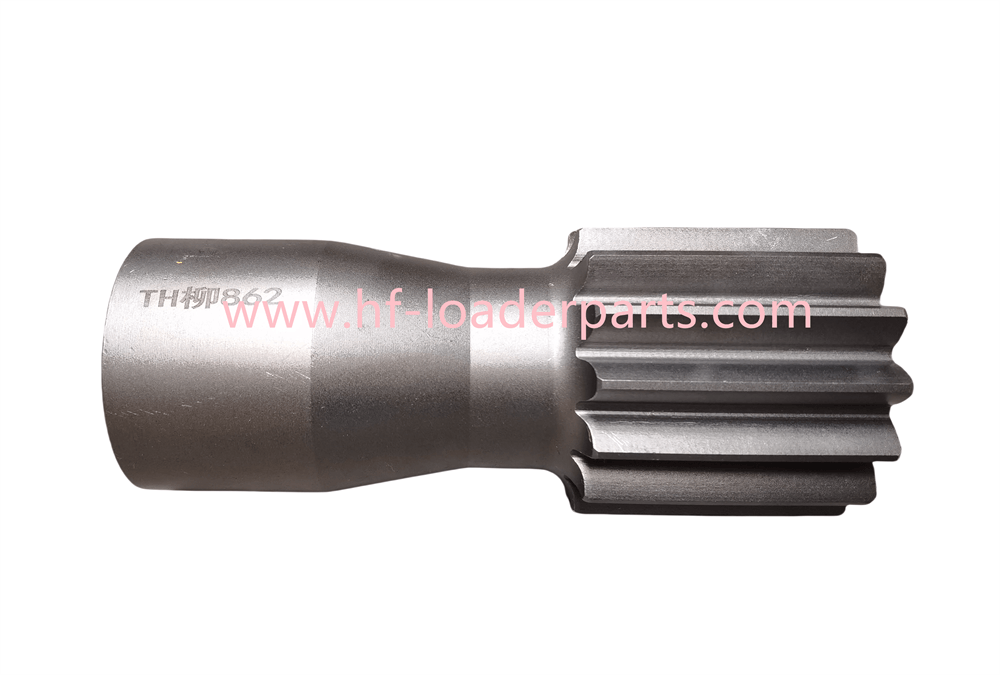

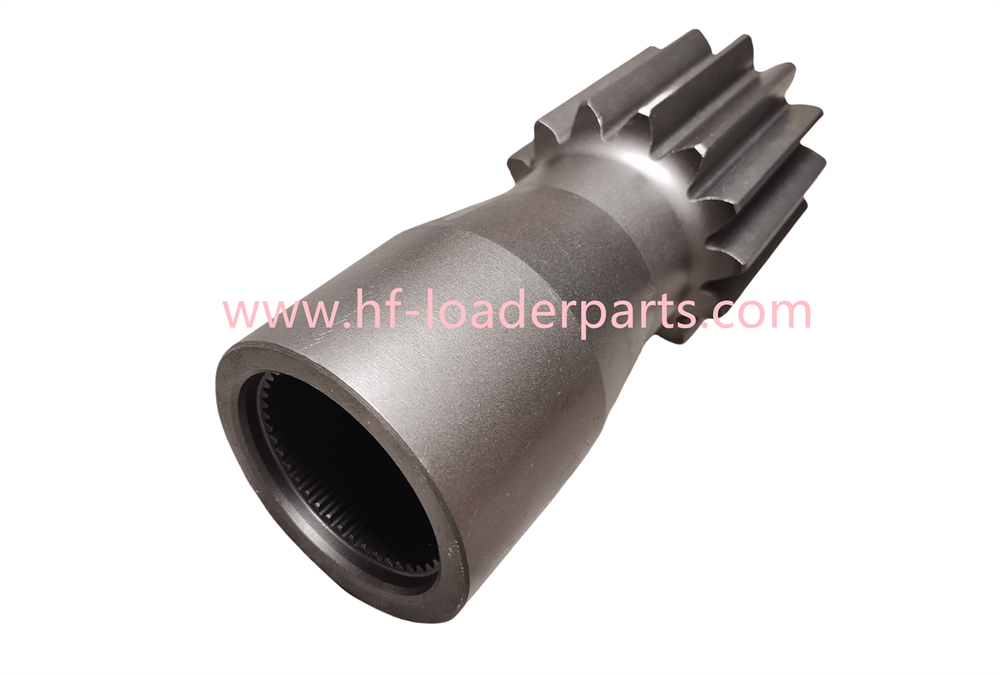

Sun gear shaft 41A0739 41A0887 for Liugong 862H，Liugong 862H Sun gear shaft 41A0739 41A0887，
LiuGong 862H sun gear shaft, part number: 41A0739 41A0887, 14 teeth and 42 keys, together with planetary gear 41A0738, inner ring gear, wheel side planetary carrier, etc., constitutes the wheel side reducer assembly, realizing secondary deceleration of the wheels, increasing torque and improving driving force.
The working principle of the wheel reducer is based on the principle of the ratio of the number of teeth of the gear. It is designed with different numbers of gears and gear sizes to make the speed of the input shaft different from the speed of the output shaft, thereby realizing the adjustment of the vehicle's driving speed and the control of the steering. This device is widely used in heavy-duty trucks, large buses, off-road vehicles and some other large industrial and mining vehicles to meet the conditions of the same total transmission ratio, so that the load of the transmission, drive shaft, main reducer, differential, half-axle and other components is reduced, the size is reduced, and the drive axle has a larger ground clearance. The wheel reducer is closely related to the speedometer and differential. The power is transmitted to the two drive wheels through the differential, which plays a role in the movement of the wheels and provides protection for the driving of the car. In addition, the operation of the wheel reducer can move the maximum output point of the engine torque to the speed point where the vehicle is working, thereby avoiding the situation of too slow or too fast speed, and improving the stability and passability of the car. Sun gear shaft 41A0739 41A0887 for Liugong 862H
