Product details

Electro galvanized iron wire ranging from 8# to 26# ,it is widely used by customers.We can produce 0.1-500 kg packaging and also produce according to the customer's special request.

Electro Galvanized Iron Wire Sizes: Electro galvanized iron wire ranging from BWG8# to BWG16# is the mostly used for customers. We also offer thinner galvanized wire down to BWG5# or up to BWG28# upon customers specific order. Single coil package for electro galvanized iron wire can be as small as 10 kg and up to maximum 1000 kg per coil.

Hot-dip Galvanized Iron Wire, also known as hot-dip zinc-plated iron wire, or thermally galvanized iron wire.

Hot-dipped galvanized iron wire at diameter from 0.19mm to 25.0mm, which can be supplied in the form of coil wire, spool wire, etc. We produce quality hot-dip galvanized iron wire with careful control of every processes from steel rod coil, wire drawing, annealing, rust removing, acid washing, electric galvanizing to wire coiling.

Wire diameter range of Hot-dipped Galvanized Iron Wire: 0.19mm - 25.0mm.

Zinc coating for Hot-dipped Galvanized Iron Wire: about 40gram - 290gram.

Production Process of Hot-dipped Galvanized Iron Wire: Steel rod coil -- Wire Drawing -- Annealing -- Rust Removing -- Acid Washing -- Zinc Plating -- Wire Coiling.

Specifications

1.Diameter range: 0.2-4.5mm
2.Tensile Strength: 300~1850 N/mm²
3.Standard: GB4357, DIN17223, JIS G 3521, A227, EN10270

4.Main application: making spring, mattress, wire rope.

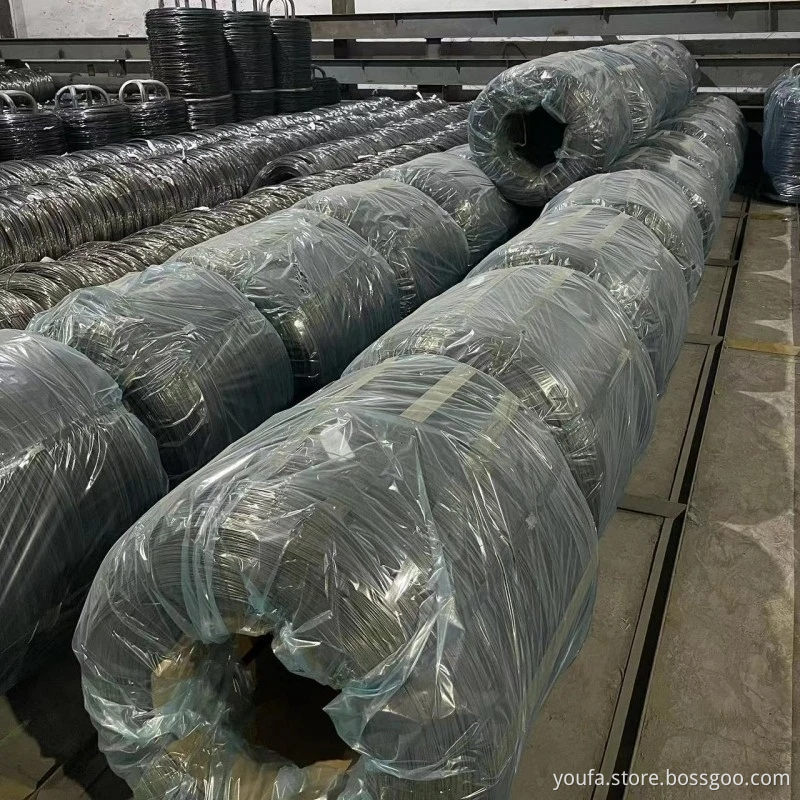

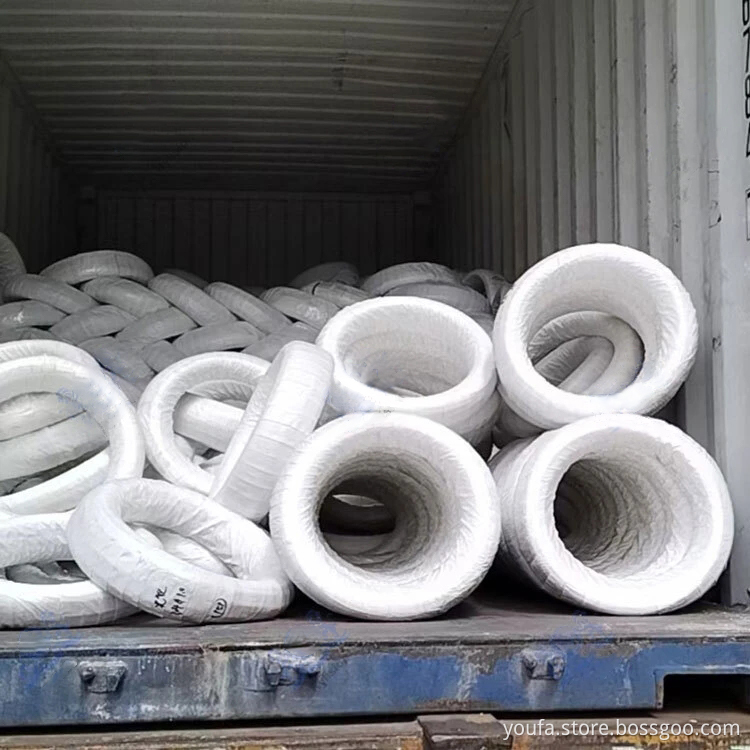

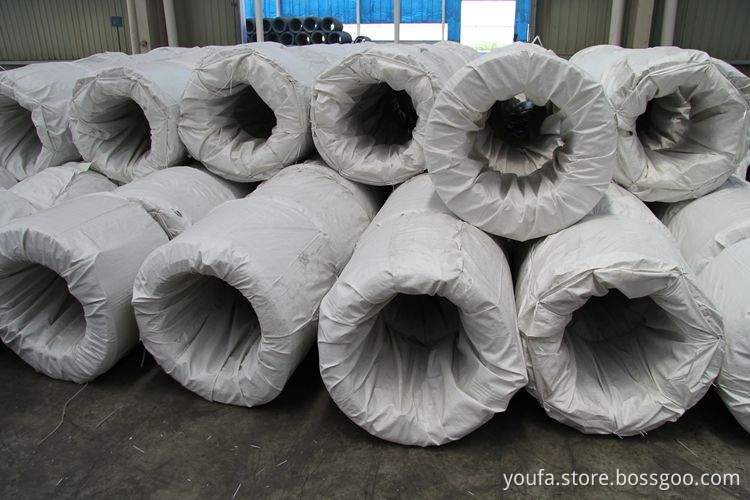

5.Packing: pack in plastic spool, reel, bag, drum, carton and so on
Steel wire material: SAE1006, SAE1008, SAE1010, Q195, Q235, C45, C50, C55, C60, C65, 65Mn, C72A, C72B, C80, C82B, CT9A, GCr15, AND SO ON
The Raw Material: (45#, 60#, 65#, 62A, 72A, 65Mn, 70#, 82A, 82B, T9A, SAE1008, SAE1006, 18A, 22A)

Steel Grade GB Standard	Carbon %	Silicon %	Manganese %	Phosphorus %	Sulphur %	Chromium %	Nickel %	Cuprum %
60#	0.60-0.61	0.18-0.22	0.52-0.59	0.012	0.007	0.06-0.07	0.05	0.18
65#	0.65	0.21	0.56	0.013	0.008	0.05	0.04	0.14
65Mn	0.60-0.70	0.10-0.25	0.70-1.00	0.030	0.030	0.20	0.20	0.25
70#	0.69-0.71	0.19-0.21	0.53-0.58	0.010-0.012	0.003-0.006	0.01-0.05	0.02-0.04	0.04
72A 72B	0.72	0.19	0.71	0.013	0.006	0.02	0.02	0.03
80#	0.80-0.81	0.22-0.24	0.59-0.76	0.008	0.004	0.04
82A 82B	0.82	0.24-0.25	0.76-0.77	0.011-0.014	0.004-0.007	0.17-0.17

Gauge	SWG		BWG		AWG
Gauge	Inch	mm	Inch	mm	Inch	mm
8	0.16	4.046	0.165	4.191	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.032	0.812
21	0.032	0.813	0.032	0.831	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01594	0.405

BWG
Gauge	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20

Galvanized Steel Wire

Galvanized Iron Wire

Galvanized Wire Galvanized Steel Wire

Galvanized Steel Wire Galvanized Iron Wire

Galvanized Iron Wire

If you have any question, please feel free to contact me by the email or telephone!

Our company is a manufacturer specializing in the research and development, production, sales and service of Seamless Steel Pipe, Welded Steel Pipe, Galvanized Steel Pipe, Steel Plate & Coil, Galvanized Steel Coil and Ppgi Coil. There is inventory support to meet the requirements of timely delivery.
