Connector: integral union ,integralflange, or other connector types：

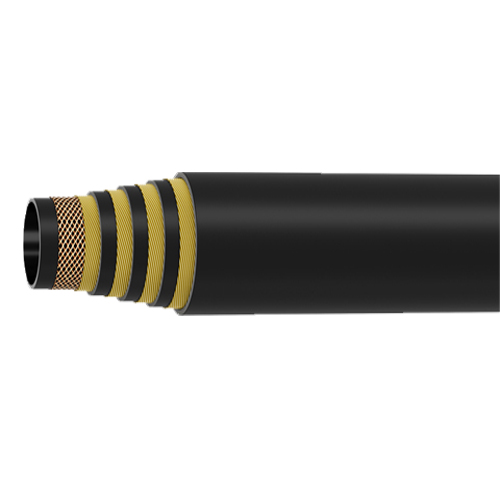

The Extreme Abrasion Resistant Frac Hose is a high-quality product designed to withstand the harsh conditions of hydraulic fracturing operations. This abrasion resistant frac hose is specifically engineered with exceptional abrasion resistance, making it ideal for use in demanding environments where constant movement and friction are common. high abrasion resistance Frac hose is constructed with durable materials that can withstand the wear and tear caused by abrasive fluids and rough surfaces. With its superior durability and performance, this Heavy-duty frac hose ensures reliable and long-lasting performance, providing a cost-effective solution for the oil and gas industry.
| Size | I.D. | O.D. | W.P. | P.P. | Min.B.R. | W.T | Volume | Connector W.T | Connections | ||||
| inch | mm | mm | psi | psi | m | ft | kg/m | lb/ft | bbl/min | m³/min | kg | lb/set | |
| 2" | 32 | 81 | 15000 | 22500 | 1.2 | 3.94 | 11.5 | 7.7 | 4.5 | 0.72 | 30 | 66 | 2 "FIG1502 hammer connected by Wang or 2 1/16" 15KAPI flange 2 "FIG 1502 Hammer Union or 2 1/1615K APIfange |
| 44 | 95 | 15000 | 22500 | 1.4 | 4.59 | 18 | 12 | 9 | 1.46 | 53 | 117 | 3 "FIG1502 hammer connected by or 3 1/16" 15KAPI flange 3 "FIG 1502 Hammer Union or 3 1/1615KAPIflange | |
| 51 | 107 | 15000 | 22500 | 1.4 | 4.59 | 20 | 13 | 12 | 1.91 | 55 | 121 | ||
| 2.5" | 58 | 122 | 15000 | 22500 | 1.5 | 4.92 | 24 | 16 | 15 | 2.39 | 57 | 126 | |
| 64 | 126 | 15000 | 22500 | 1.5 | 4.92 | 27 | 18 | 18.5 | 2.90 | 58 | 128 | ||
| 3" | 69 | 135 | 15000 | 22500 | 1.6 | 5.25 | 30 | 20 | 21.5 | 3.42 | 60 | 132 | |
| 76 | 145 | 15000 | 22500 | 1.6 | 5.25 | 35 | 24 | 26 | 4.13 | 65 | 143 | ||
| 4" | 89 | 164 | 15000 | 22500 | 2.0 | 6.56 | 52 | 35 | 36 | 5.72 | 75 | 165 | 4 "FIG1502 hammer connected by Wang or 4 1/16" 15KAPI flange 4 "FIG 1502 Hammer Union or 4 1/16" 15KAPIfang |
| 102 | 179 | 15000 | 22500 | 2.0 | 6.56 | 60 | 40 | 47 | 7.47 | 85 | 187 | ||
| 5" | 120 | 208 | 15000 | 22500 | 2.1 | 6.89 | 80 | 54 | 65 | 10.34 | 343 | 756 | 5 1/8 "15KAPI flange connection 5 1/815KAPIfange |
| 127 | 216 | 15000 | 22500 | 2.1 | 6.89 | 86 | 58 | 73 | 11.61 | 348 | 767 | ||
| 5.5" | 140 | 243 | 15000 | 22500 | 2.2 | 7.22 | 110 | 74 | 88.5 | 14.07 | 560 | 1235 | 7 1/16 "15KAPI flange connection 7 1/16 * 15KAPIfange |
| 6" | 152 | 255 | 15000 | 22500 | 2.3 | 7.54 | 125 | 84 | 104.5 | 16.62 | 680 | 1499 | |
| 2" | 51 | 112 | 20000 | 30000 | 1.5 | 4.92 | 26 | 17 | 12 | 1.91 | 65 | 143 | 2 "FIG2002 Hammer Hammer Connection by Wang or 3 1/16" 20KAPI Flange 2 "FIG 2002 Hammer Union or 3 1/16" 20KAPIfang |
| 2.5" | 64 | 133 | 20000 | 30000 | 1.6 | 5.25 | 36 | 24 | 18.5 | 2.90 | 78 | 172 | 3 "FIG2002 hammering due to or 3 1/16" 20KAPI flange connection 3 "EIG2002HammerUnion or 3 1/1620KAPIflange |
| 3" | 76 | 159 | 20000 | 30000 | 1.9 | 6.23 | 57 | 38 | 26 | 4.13 | 98 | 216 | 3 "FIG2002 Hammer Union or 3 1/16" 20KAPI Flange Connection 3 "FIG 2002 Hammer Union or 3 1/16" 20KAPIflange |
| 4" | 102 | 202 | 20000 | 30000 | 2.1 | 6.89 | 94 | 63 | 47 | 7.47 | 400 | 882 | 4 1/16 "20KAPI flange connection 4 1/1620KAPIfange |
| 5" | 127 | 230 | 20000 | 30000 | 2.3 | 7.54 | 111 | 75 | 73 | 11.61 | 850 | 1874 | 7 1/16 "20KAPI flange connection 7 1/1620KAPIfange |
Note: The actual parameters are subject to the final atlas
