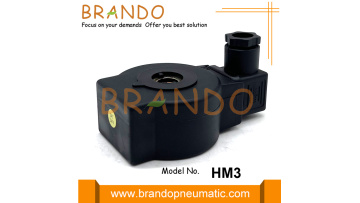

Castel Type HM3 Solenoid Valve Coil 12VDC 24VDC
This HM3 solenoid coil is used for castel refrigeration solenoid valve. Ordering Code: 9120/RD1, 9120/RD2, 9120/RD3, 9120/RD4, 9120/RD6; Voltage: 12VDC, 24VDC, 27VDC, 48VDC, 220VRAC, 240VAC; Power: 18W, 20W, 22W; Connector: DIN43650A; Protection Class: IP65; Insulation Class: F.
Part Number of Refrigeration Solenoid Valve Coil HM3:
|
Coil Type
|
Part number
|
Voltage
|
Frequency
|
Power
|
|
HM3
|
9120/RD1
|
12V DC
|
-
|
20
|
|
9120/RD2
|
24V DC
|
|||
|
9120/RD3
|
27V DC
|
|||
|
9120/RD4
|
48V DC
|
22
|
||
|
9120/RD6
|
220V RAC
|
18
|

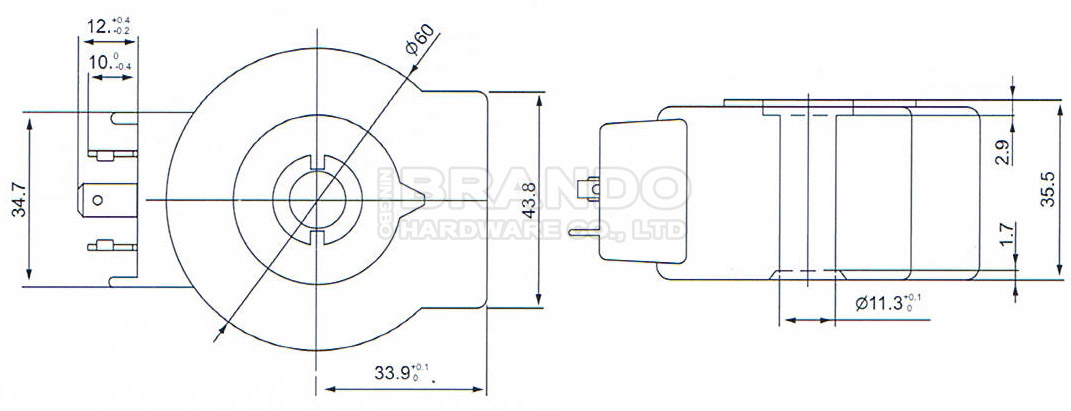

Dimension of HM3 Solenoid Valve Coil:
BRANDO Solenoid Valve Coils Production Video:
More Refrigeration Solenoid Valves for you to choose:
 |
 |
 |
| Danfoss Type Solenoid Valve |
Ammonia Solenoid Valve |
Castel Type Solenoid Valve |
 |
 |
 |
|
Expansion Valve |
Solenoid Valve Coil |
Solenoid Valve Armature |
