Parker Type 693715 697228 697229 Hydraulic Coil 110V 220V
This solenoid coil is popularly used in hydraulic directional control solenoid valves. The reference number is 693715, 697228, 697229, 697350 or 697863. The standard voltage is 110VAC or 220VAC, the standard power is 25VA, other voltages and powers can be customized as your request, DIN43650A connector, IP65 protection class. If you have any demands or questions, pls contact us!
Technical Data:
|
BRANDO Model
|
BB19242504
|
|
Voltage
|
110VAC, 220VAC
|
|
Power
|
25VA
|
|
Other voltage and power can be customized
|
|
|
Connector
|
DIN43650A
|

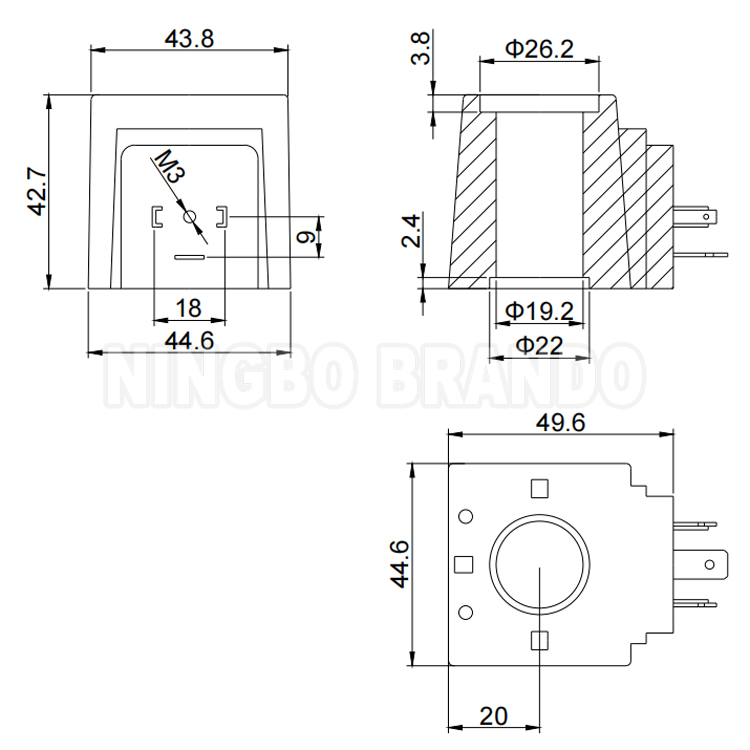

Main Dimension:
Our Production:
More Hydraulic Coils:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
FAQ: How to choose a matching solenoid coil?
1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.
Welcome to your any question and inquiry!
