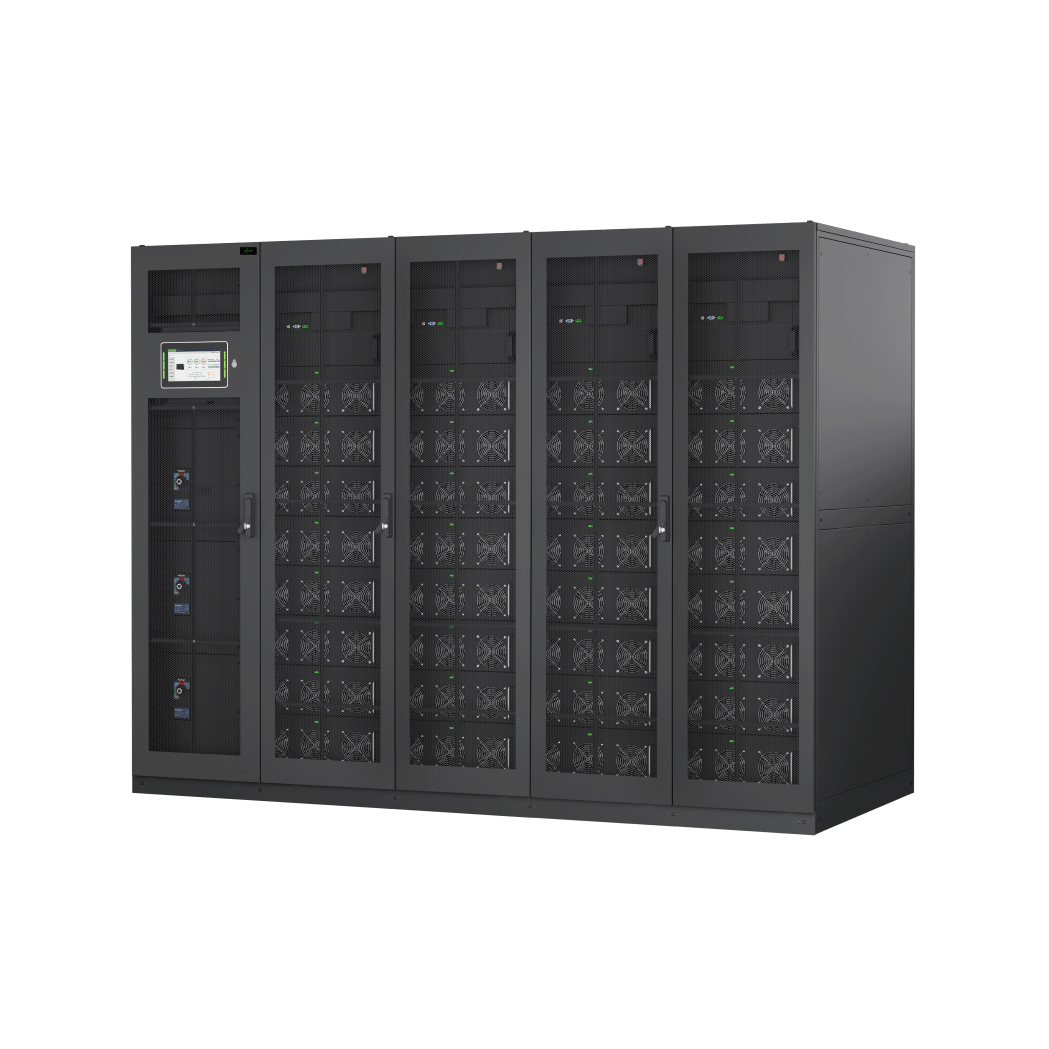

HM Series

62.5~2000kVA Modular UPS

These series of high-capacity Uninterruptible Power Supply (UPS) units designed for industrial and commercial applications, with models ranging from 400kVA to 2000kVA. These UPS systems ensure a stable power supply with high efficiency (≥96%), low total harmonic distortion (THD), and precise voltage and frequency regulation. They feature robust input and output parameters, flexible battery configurations, comprehensive bypass options, and advanced inverter capabilities. Additionally, they come equipped with modern display interfaces, extensive communication options, and are built to operate in varied environmental conditions, making them suitable for critical power protection needs.

Power range

62.5~2000kVA

Operation

3P/3P,Online Double Conversion

Applications

Government, Finance, IT, Education, Transportation, Broadcasting, Medical,Energy, etc.

Characteristics

Fully digital control, flexible and robust.
10 inch touch LCD, with IoT functions.
High reliability and environment adaptability, with protection of components level.

Intelligent system self-diagnosis, rich fault recording, large capacity
of history record storage space.

Maximum system capacity up to 2.0MVA, the best solution for mega data center.

Main Input
- Configuration: 3P5W (3P+N+PE)
- Rate Voltage: 480VAC (L-L)
- Rate Frequency: 50/60Hz
- Input Power Factor (PF): >0.99
- Current Distortion: THDi <3% (100% Linear load)
- Voltage Range: 384-528VAC (L-L) full load, 288-384VAC (L-L) power derate from 100% to 75%
- Frequency Range: 40-70Hz

Battery
- Rate Voltage: ±240VDC
- Charging Capacity: 20% * Pout
- Charging Accuracy: ±1%

Bypass
- Rate Voltage: 480VAC (L-L)
- Voltage Range: -40% to +25% (settable, default -20% to +15%)

Overload
- 110%: Long time operation
- 110% < Load < 125%: 5 minutes
- 125% < Load < 150%: 1 minute
- 150%: 1 second
Inverter
- Rate Voltage: 480VAC (L-L)
- Rate Frequency: 50/60Hz
- Output Power Factor: 1
- Voltage Accuracy: ±1.0%
- Load Response: <5% (20% - 80% - 20% step load)
- Recovery Time: <20ms (0% - 100% - 0% step load)
- Output THD: <1% (linear load), <5% (non-linear load according to IEC 62040-3)
- Overload: 110% for 1 hour, 125% for 10 minutes, 150% for 1 minute, >150% for 200ms
- Frequency Accuracy: 0.1%
- Synchronize Window: Settable ±0.5Hz to ±5Hz (default ±3Hz)
- Slew Rate: Settable 0.5Hz/s to 3Hz/s (default 0.5Hz/s)
- Crest Factor: 3:1
- Phase Accuracy: 120° ±0.5°

System:
- Efficiency: Not specified
- Display: LED + 10 inch touch LCD
- Certification - Safety: IEC62040-1, IEC60950-1
- Certification - EMS: IEC62040-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge)
- IP Degree: IP20
- Configuration: USB, RS232, RS485, Dry contact, Cold start, Air filter
- Option: SNMP card, AS400 card, Parallel kit, SPD, LBS
- Environment: 0-40°C (operation), -25 ~ 70°C (storage), 0-95% (humidity, non-condensing)
- Noise: 72dB @ 100% load, 69dB @ 45% load

Model-Specific Information:

HM400:

Rated Power: 400kVA
Cabinet Dimension: 600*1000*2000 mm
Cabinet Weight: 608 kg
Power Module Rated Capacity: 50KW

HM500:

Rated Power: 500kVA
Cabinet Dimension: 2000*1000*2000 mm
Cabinet Weight: 1100 kg
Power Module Rated Capacity: 62.5KW

HM800:

Rated Power: 800kVA
Cabinet Dimension: 2600*1000*2000 mm
Cabinet Weight: 1600 kg
Power Module Rated Capacity: 50KW

HM1000:

Rated Power: 1000kVA
Cabinet Dimension: 3200*1000*2000 mm
Cabinet Weight: 2100 kg
Power Module Rated Capacity: 62.5KW

HM1200:

Rated Power: 1200kVA
Cabinet Dimension: 3200*1000*2000 mm
Cabinet Weight: 2100 kg
Power Module Rated Capacity: 50KW

HM1500:

Rated Power: 1500kVA
Cabinet Dimension: 3200*1000*2000 mm
Cabinet Weight: 2100 kg
Power Module Rated Capacity: 62.5KW

HM2000:

Rated Power: 2000kVA
Cabinet Dimension: 3200*1000*2000 mm
Cabinet Weight: 2100 kg
Power Module Rated Capacity: 62.5KW

Conjunction with UPS Systems, Online Double Conversion, Online UPS,Uninterruptible power supply unit,3-Phase Tower UPS, True High Frequency Online UPS, Stable Power Supply Ups, Online Type Ups Supply, Battery Cabinet, Online UPS
