Product details

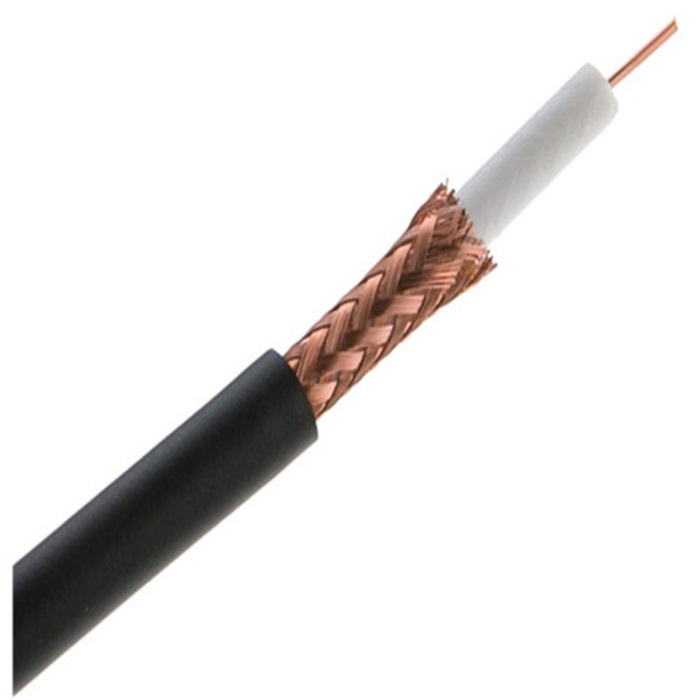

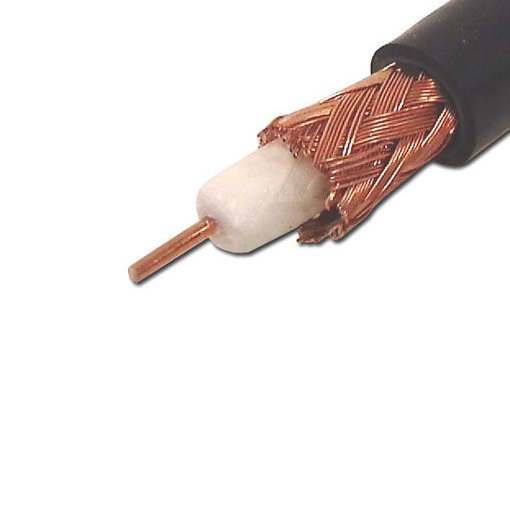

These coaxial cables are specially designed for both digital and analog signal transmission. They are widely applicable for CATV, satellite TV reception, off-air broadcast signal transmission, and broadband communication systems. Ideal for residential wiring, commercial engineering, audio-visual equipment connection, and various signal transmission projects with stable and high-quality performance.

Conductor

Bare copper or copper clad steel (solid conductor), featuring low resistance, high conductivity, excellent tensile strength and bending resistance, ensuring minimal signal loss and long-distance transmission stability.

Size

φ0.81±0.10 mm

Insulation

Foamed polyethylene (Foamed PE), with low dielectric constant, high insulation performance, and low signal attenuation, effectively improving signal clarity and transmission efficiency.

1st Shield

Aluminum/PET-foil bonded layer, providing full-range physical shielding to block low-frequency electromagnetic interference and prevent signal leakage.

2nd Shield

High-density copper wire braid or aluminum-magnesium alloy braid, delivering superior anti-interference performance against high-frequency electromagnetic signals.

3rd Shield

Aluminum/PET-foil bonded layer, forming a triple-shield structure to maximize isolation from external interference and ensure ultra-stable signal transmission.

Sheath

High-quality PVC (Polyvinyl Chloride), with excellent wear resistance, aging resistance, oil resistance, crush resistance and flame retardant properties, protecting the cable structure and extending service life in various installation environments.

Electrical Parameters

• Nominal Capacitance: 54±2pF/m

• Velocity of Propagation: 85%

• Impedance: 75±3 Ohms
