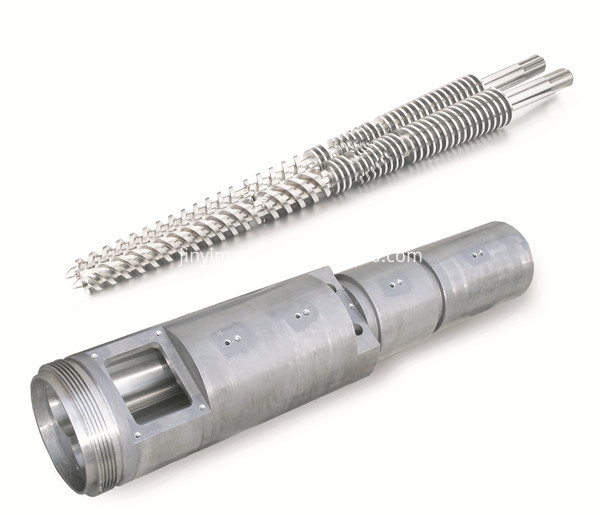

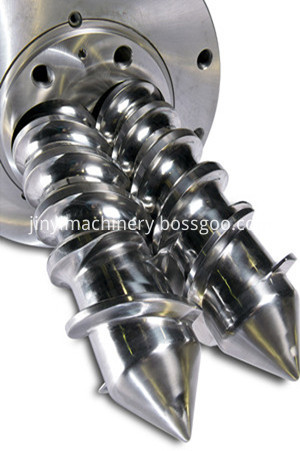

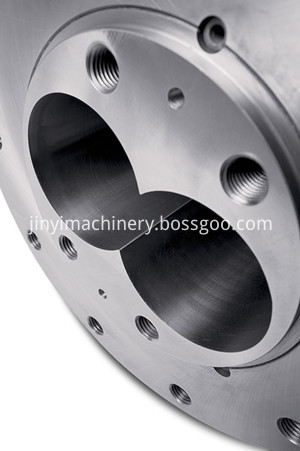

Conical Twin Screw Barrel
Twin screw barrel is gradually adopted by many manufacturers because of its high efficiency. Compared with single screw barrel, twin screw barrel has higher requirements for machining clearance. Our company has a professional team to help users solve design problems, and can also process according to the samples or drawings provided by customers.
Technical Parameters
Product Name: Conical Twin Screw Barre
Base Material: JYN1
Available Size: Φ35 - 188mm, L < 2,500mm
Process Method: Nitrided or bimetallic
Advantage
1. Unique technical design with larger output
2. Advanced equipment with finest machining
3. Perfect match of tolerance
Applications
Suitable for PVC pipes, profiles, sheets and extrusion foaming products.
Suitable for PE, PP corrugated pipe extrusion.
Size and capacity
Here is list of our general design data, which may be updated in some different circumstance.
|
Specification (d / D) |
Working Length (mm) |
Rotate Speed (rpm) |
Capacity (kg/h) |
|
Φ35/75 |
810 |
5-50 |
40-70 |
|
Φ45/90 |
990 |
5-45 |
50-80 |
|
Φ45/100 |
990 |
5-45 |
60-90 |
|
Φ48/112 |
1104 |
4-45 |
70-100 |
|
Φ50/105 |
1045 |
4-45 |
100-150 |
|
Φ51/105 |
1220 |
4-45 |
100-150 |
|
Φ55/110 |
1220 |
4-40 |
120-180 |
|
Φ55/120 |
1230 |
4-40 |
130-180 |
|
Φ58/126 |
1320 |
4-40 |
140-200 |
|
Φ60/125 |
1320 |
4-40 |
150-200 |
|
Φ65/120 |
1440 |
4-40 |
200-250 |
|
Φ65/132 |
1440 |
4-40 |
200-250 |
|
Φ68/146 |
1550 |
4-40 |
220-300 |
|
Φ80/143 |
1800 |
4-35 |
300-360 |
|
Φ80/156 |
1800 |
4-35 |
300-360 |
|
Φ92/188 |
2000 |
3-35 |
400-500 |
