Rubber Processing- Injection & Extrusion

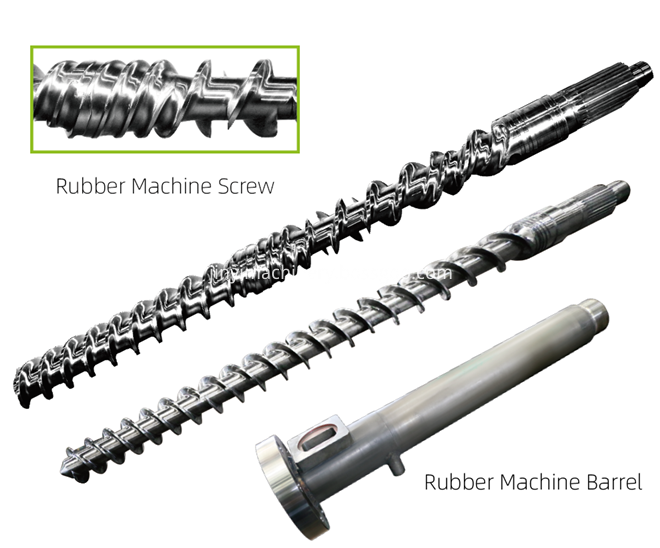

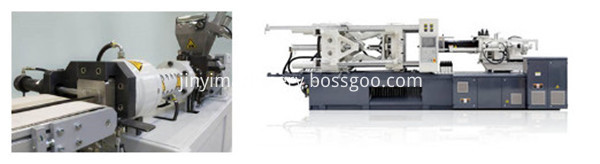

Ningbo Jinyi Precision manufactures bimetallic masticating barrels and liners for all types of rubber injection molding, cold and hot feed rubber twin and single screw extrusion machinery. Our products are found worldwide operating in mild to severe abrasion and corrosion wear environments.
Parameters
Screw out diameter d：15mm≤d≤300mm
Screw length L：L≤10000mm
Nitriding hardness：HV≥900
After grinding 0.20mm, HRC ≥760 (38CrMoALA);
Nitrided brittleness：≤2 level
Surface finish Ra：Ra0.4µm
Straightness：0.015mm
Thickness of bimetallic layer：1.5-2.0mm
Hardness of bimetallic layer：HRC56-60
Thickness of chrome plating layer: 0.03-0.05mm
Applications
Tires, shoe materials, wires and cables, pipes, seals, etc.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Injection Screws ,
Injection Barrels,
Extrusion Screws,
Extrusion Barrels,
Tie Bars,
Twin Screw Barrels
