SS304 Sanitary Tank CIP TriClamp Spray Ball
Product Description:
Application
Rotary cleaning ball: It's a kind of rotary sprayer, which use cleanser to spray strongly and clean inside of the tank. It is one which is effective replace the traditional fixed cleaning ball for it can be used under low pressure with less detergent. The rotary sprayer use dual ball bearing, so it is suitable for the sanitary and industrial application, include tank, reactor, vessel etc.
Fixed cleaning ball: It's a type of fixed spray ball of cleaning storage tank. The fixed spray ball is use to cleaning task with lower requirement.

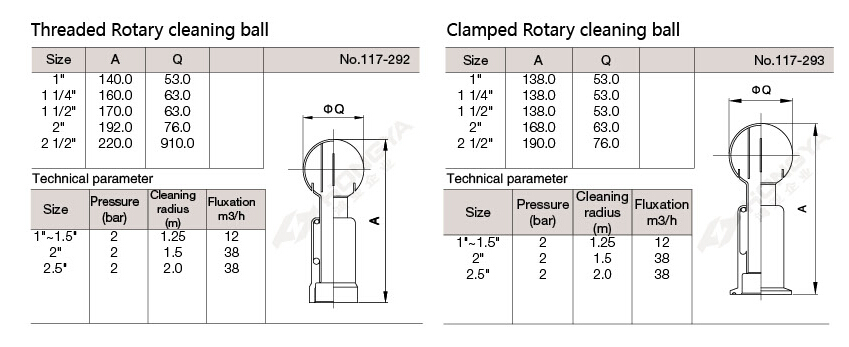

Technical Data
As per specification lubrication by the cleaner itself.
Working pressure: 1-3Bar
Max. Working temperature: 95degee
Max. Ambient temperature: 140degree
Moist radius: Max. 3M
Inject cleaning radius: Max. Effective radius 2M
Connector: Weld, clamp, thread
Working principle
Rotary cleaning ball: The cleaning solution make the sprayer rotary by it's motive power, then the fun jet created the whole tank and reactor with vortex.
In that way, clean the remains of vessel surface effectively, reach the function of cleaning.
Fixed cleaning ball: The cleaning ball is through the sprayer small hole, create the injection all around. In that way, clean the remains of vessel surface effectively, reach the function of cleaning.
Design standard
The standard of cleaning ball series as follows: DIN, 3A, SMS, ISO /IDF
Material: Ferrule: 304/316L
Sprayer: 304/316L
