European standard aluminum cylinder tube usually refers to hydraulic cylinder tube made of aluminum alloy that complies with European standards (such as DIN or ISO standards). This type of cylinder is very common in mechanical manufacturing and engineering applications, especially in situations that require lightweight design, such as aerospace, automotive industry, and precision machinery equipment.
Compared to traditional steel cylinders, aluminum cylinders have the following characteristics:
Lightweight: Aluminum has a much lower density than steel, so aluminum cylinders can significantly reduce the weight of equipment, which is particularly important for mobile devices.
Good corrosion resistance: The aluminum surface is prone to forming a dense oxide film, which can effectively prevent further oxidation and corrosion, making the aluminum cylinder have good corrosion resistance.
Excellent processing performance: Aluminum material is easy to process and shape, and can be precision machined to meet the requirements of different sizes and shapes.
Good thermal conductivity: Aluminum has a high thermal conductivity, which helps to dissipate heat quickly and is an advantage for applications that require good thermal management.
However, aluminum cylinder tubes also have some limitations, such as relatively low hardness and wear resistance, making them unsuitable for high-pressure or severely worn working conditions; In addition, the cost may be higher compared to steel cylinder barrels.
Product Features
1. The European standard A-type cylinder clamp sleeve can be paired with a type tube and piston rod.SI/SU Pneumatic Cylinder Barrel.

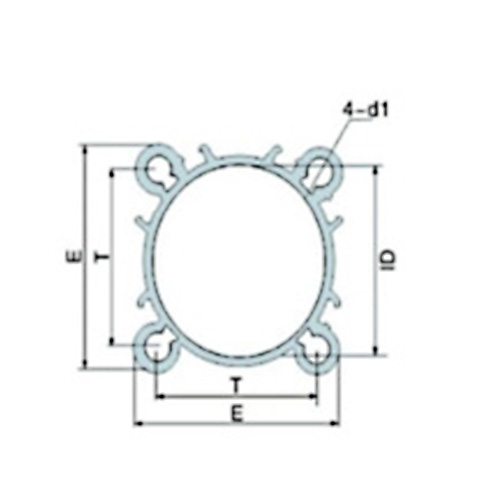

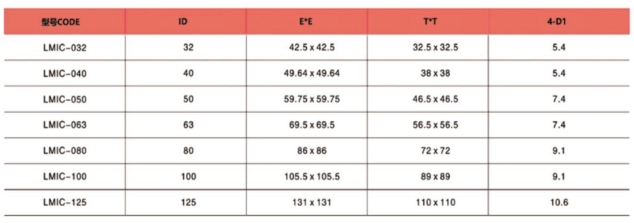

2. The aperture is 32mm to 200mm, and the stroke is 50 to 1000mm.SI Pneumatic Cylinder Barrel.
3. Type: Basic type, dual axis type, dual axis adjustable stroke type, etc.SU Pneumatic Cylinder Barrel.
4. For the finished cylinder, the damping adjustment of the front and rear end plates ensures smooth, safe, and noise free operation of the cylinder.SI Pneumatic Cylinder Tube.
5. The DSBC cylinder pipe can be replaced.Pneumatic Cylinder Tube.
If you are interested in the product, contact 2bvideo.com for more information for more information
