Salt Vibrating Sifter Machine Characteristic:
1. Continuous production, automatic grading, sieving
2. Low noise
3. Enclosed structure, without overflow of power dust
4. Fast start-up, and very stable stop
5. Small cubage, easy to install, convenient to operate and maintain.
6. The series screen with high usage rate, its screen opening can not be easy blocked, and it is easy to replace its mash.

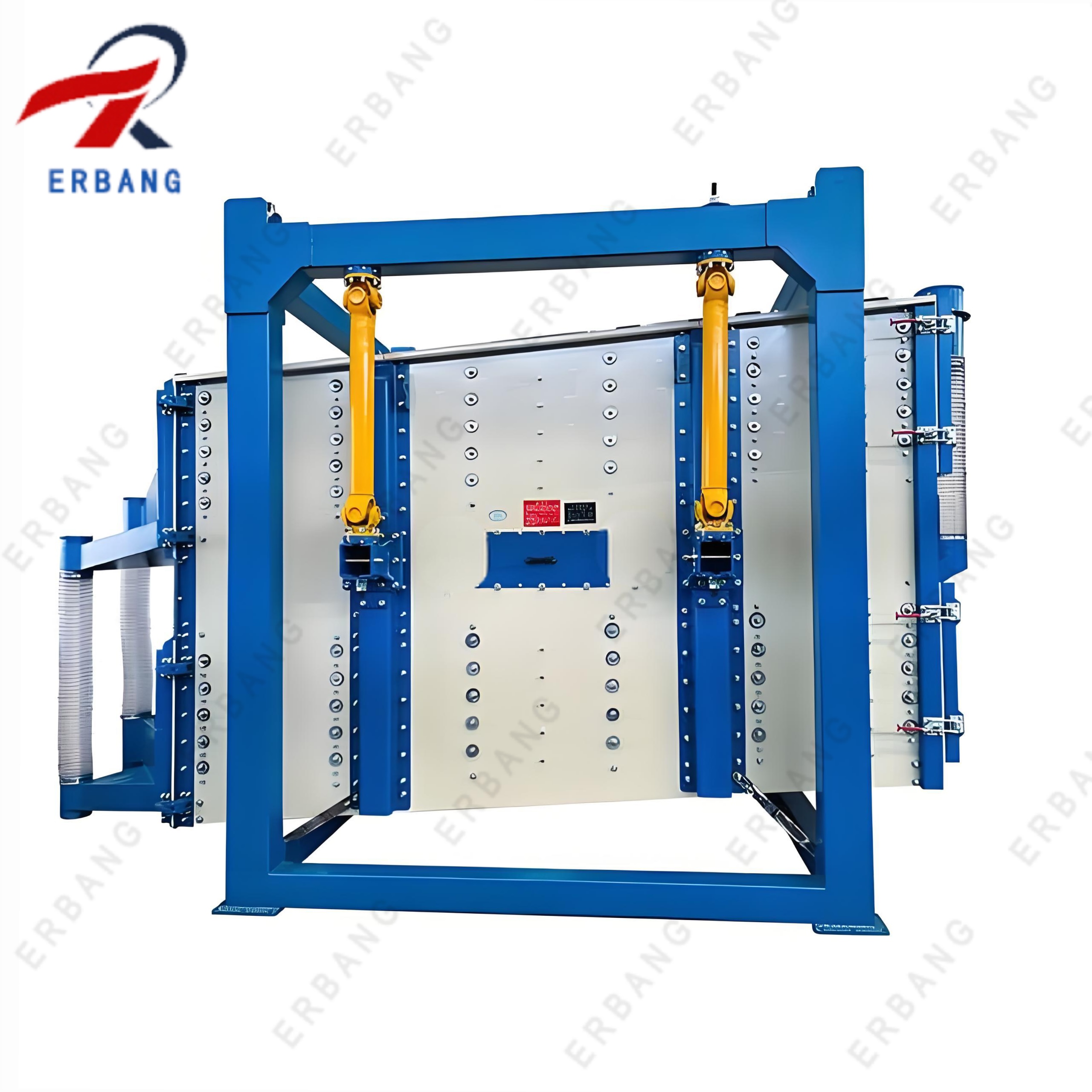

Salt Vibrating Separator principle:
Salt Vibrating Sieve is comprised of screen box, Vibration source and damper, vibrating frame and screen box are connected with 4-12 group soft rubber dampers fixed up and down, and the centrifugal force is generated therein, the floating amplitude is controlled by the damper, by which, material realizes a process of throw and lamination filtration downward, and therefore reaching the optimized grading and screening effect.
Continuous Type Salt Vibrating Separator Features:
1. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
2. Control system has more choices, such as push button , HMI+PLC and so on.
3. Machine materials : AISISUS304 , AISISUS316L, and other material .
5. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.
6. The vibration sieve often connect with drying machine, such as vibration fluid bed dryer, fluid bed dryer and so on.
7. The vibration sieve also connect with grinding machine such 30B grinding machine to make the big size materials into small pieces.
Designed and modified by importing the advanced foreign technology and in combination with GMP standard, powder separator machine is widely used for grading and screening of industrial raw materials in such trades as pharmaceutical, chemical, foodstuff, metallurgy and electronics etc..
| Model | capacity | Sieve hole | Motor power | Vibration frequency | Overall dimension | Weight |
| ZF-0.3 | 50-300kg/h | 3-150mesh | 0.2kw | 1400r/min | 1250*660*900mm | 150kg |
| ZF-0.5 | 100-450kg/h | 3-150mesh | 0.2kw | 1400r/min | 1250*660*900mm | 250kg |
| ZF-0.8 | 300-750kg/h | 3-150mesh | 0.3kw | 1400r/min | 1500*800*900mm | 320kg |
| ZF-1.2 | 500-1100kg/h | 3-150mesh | 0.5kw | 1400r/min | 1980*1050*1450mm | 400kg |
| ZF-1.8 | 800-1600kg/h | 3-150mesh | 0.75kw | 1400r/min | 2400*1200*1500mm | 600kg |
| ZF-2.2 | 1000-2500kg/h | 3-150mesh | 0.75kw | 1400r/min | 2800*1200*1600mm | 800kg |
