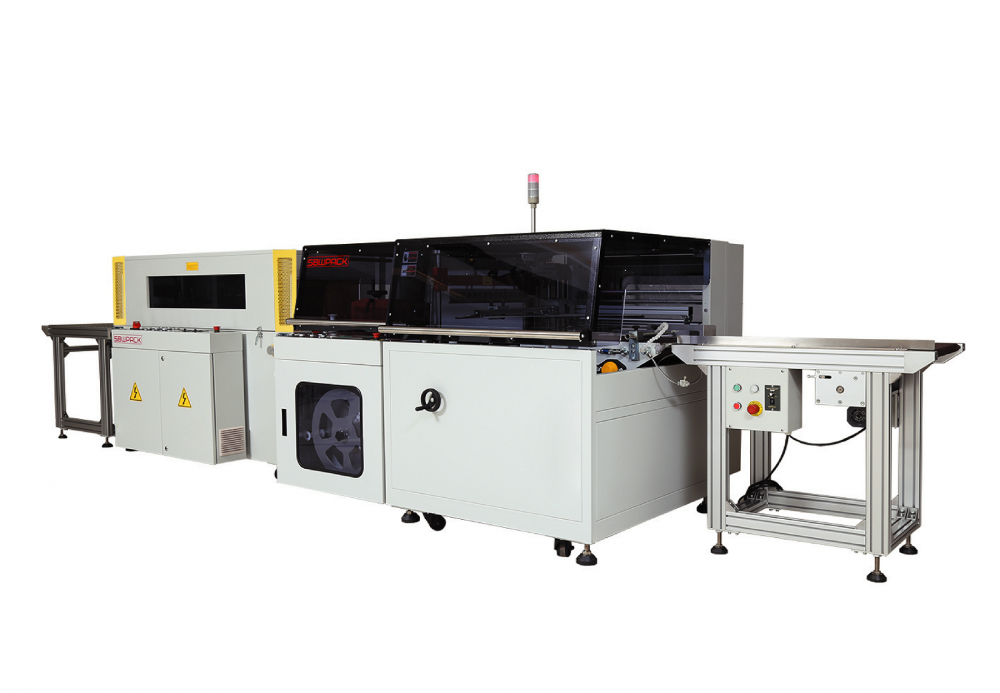

Hi-speed Intermittent Side Sealer and Shrink Tunnel Machines
Product Description
Companies that produce industrial components, hardware, electronics, and consumer goods benefit from the high-speed packaging capabilities of these systems. The technology enables efficient bundling and packaging of diverse products, contributing to streamlined production processes and inventory management.
Printers, publishers, and distribution centers utilize hi-speed intermittent side-sealing and shrink packaging for packaging books, magazines, catalogs, and printed materials. The precision and speed of the packaging process help protect printed materials while enhancing their visual presentation.
Hi-speed Intermittent Side Sealer Technical Features
High Speed Intermittent Side Sealer structure, continuous sealing motion by side sealing system without limit for product length. Suitable for hi-speed packing and long products.
HMI with iconic operation interface, technical parameters recordable, easy to operate.
Servo-driven cross sealing, other motors controlled by inverters, hi-speed design with capacity 20 up to 65pcs/min.
One-piece heat-resistant alloy blades, Dupont Tefloncoated, anti-adhesive and easy to clean, strong seams.
Tunnel Technical Features
Blowing system installed below with the whole shrinking process visible through the heat-resistant window.
Conveyor speed and air volume controlled by inverters, wind hole openess and blowing direction adjustable.
Chamber can be opened, easy for cleaing and maintenance.
|
Model |
FL-5545TBH |
SM-5030LX |
|
Machine Dimensions (mm) |
2100 X 1480 X 1308 |
1872 X 1035 X 1305 |
| Tunnel Chamber Size L(mm) | / | 1500 X 500 X 300 |
|
Max Packing Size (mm) L |
Length Unlimited | 1300 X 400 X 250 |
|
Max Packing Size (mm) W+H(mm) |
≤400 |
/ |
|
Cross Sealing Size L/H (mm) |
520/150 |
/ |
| Capacity (pcs/m) | 20~65 | 0~20 m/min |
|
N.W. (kg) |
800 |
650 |
|
Power (kw) |
3 |
16 |
|
Power supply |
1PH 220V 50/60Hz |
3PH 220V380V 50/60Hz |
|
Air pressure （kg/cm2) |
6~8 |
/ |
|
Applicable Film |
POF/PE |
POF/PE |
Scope of application
High-speed Intermittent Side Sealer is suitable for the packing demands of the mass production in industries suck like electronics, hardware, platics, software, food, printing, pharmaceuticals, floors and other construction materials.
Applicable films: POF/PE.
