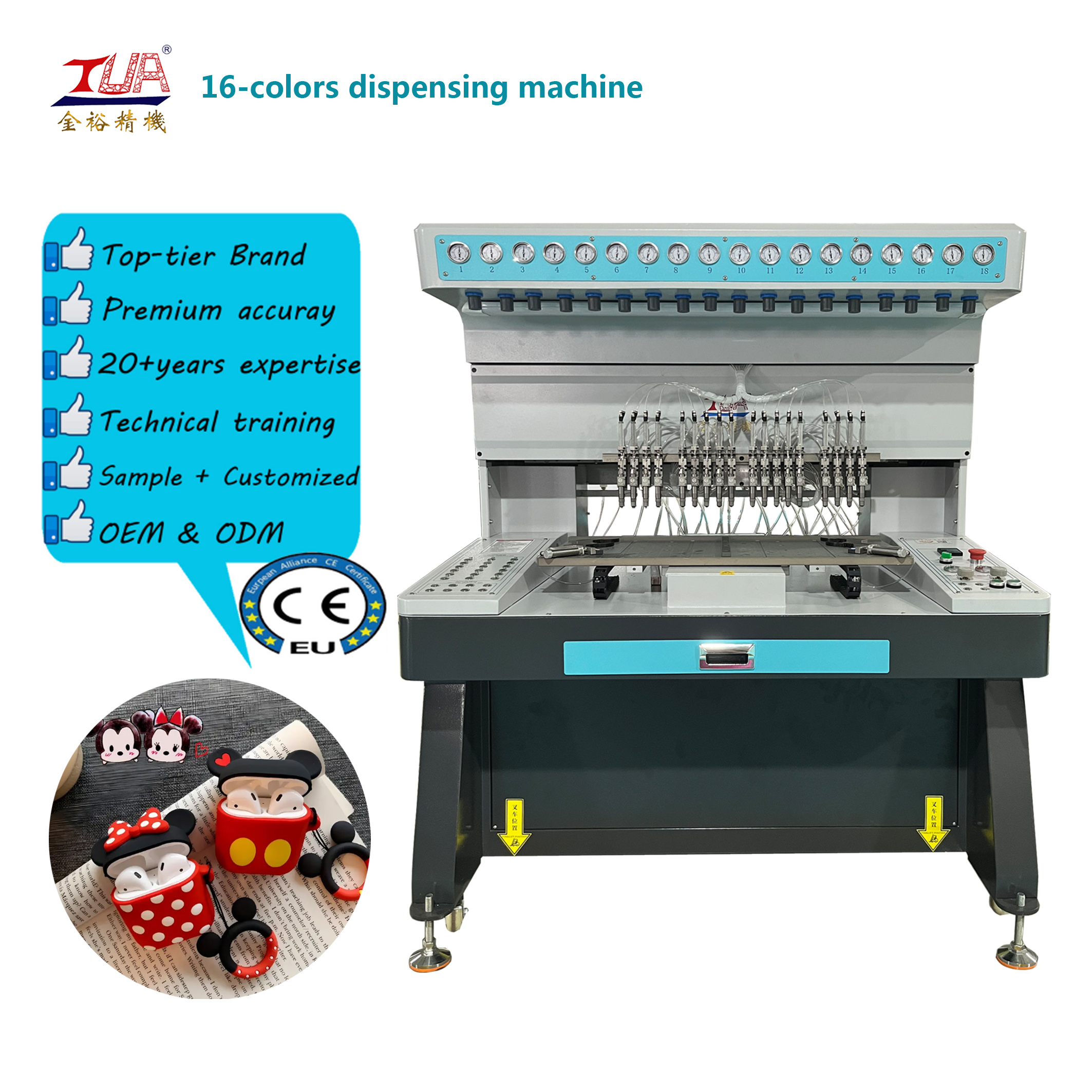

A 12/16-color rubber patch machine (also known as a micro-injection or drip molding machine or dispensing machine) is the industry standard for producing multi-colored soft PVC and silicone items like garment labels, patches, and keychains.

By utilizing 12/16 independent channels, these machines allow for complex, multi-colored designs to be produced in a single pass, significantly reducing the manual labor typically associated with "dripping" or "doming" processes.

Technical Specifications & Features

The machines are typically engineered for high-speed accuracy and repeat performance.FeatureTypical SpecificationWorking AreaApproximately 700mm x 370mmPrecision±0.01mm to 0.1mm (ensuring no leakage or "blushing")Control SystemPC-based or PLC with dedicated CAD conversion softwareMaterial SupportLiquid Silicone Rubber (LSR), Soft PVC, Epoxy Resin, and GlueSpeedUp to 3,500 R.P.M. (motor speed) with adjustable dispensing flow.

Name	12 Colors	16 Colors
Model	JY-B02	JY-B03
Voltage	220V/50Hz	220V/50Hz
Number of valve	12	16
Wore area	620*370mm	720*370mm
Motor power	3*0.4kw	3*0.4kw
Heating Power	0.6kw	0.6kw
Power	1.2kw	1.2kw
Air pressure	6~8/kgf/cm-2	6~8/kgf/cm-2
Dispensing speed	400/mm.s-1	400/mm.s-1
X.Y.Z axis stroke	47036090mm	70036090mm
Size	133010001720mm	130011501550mm
Weight	450kg	500kg

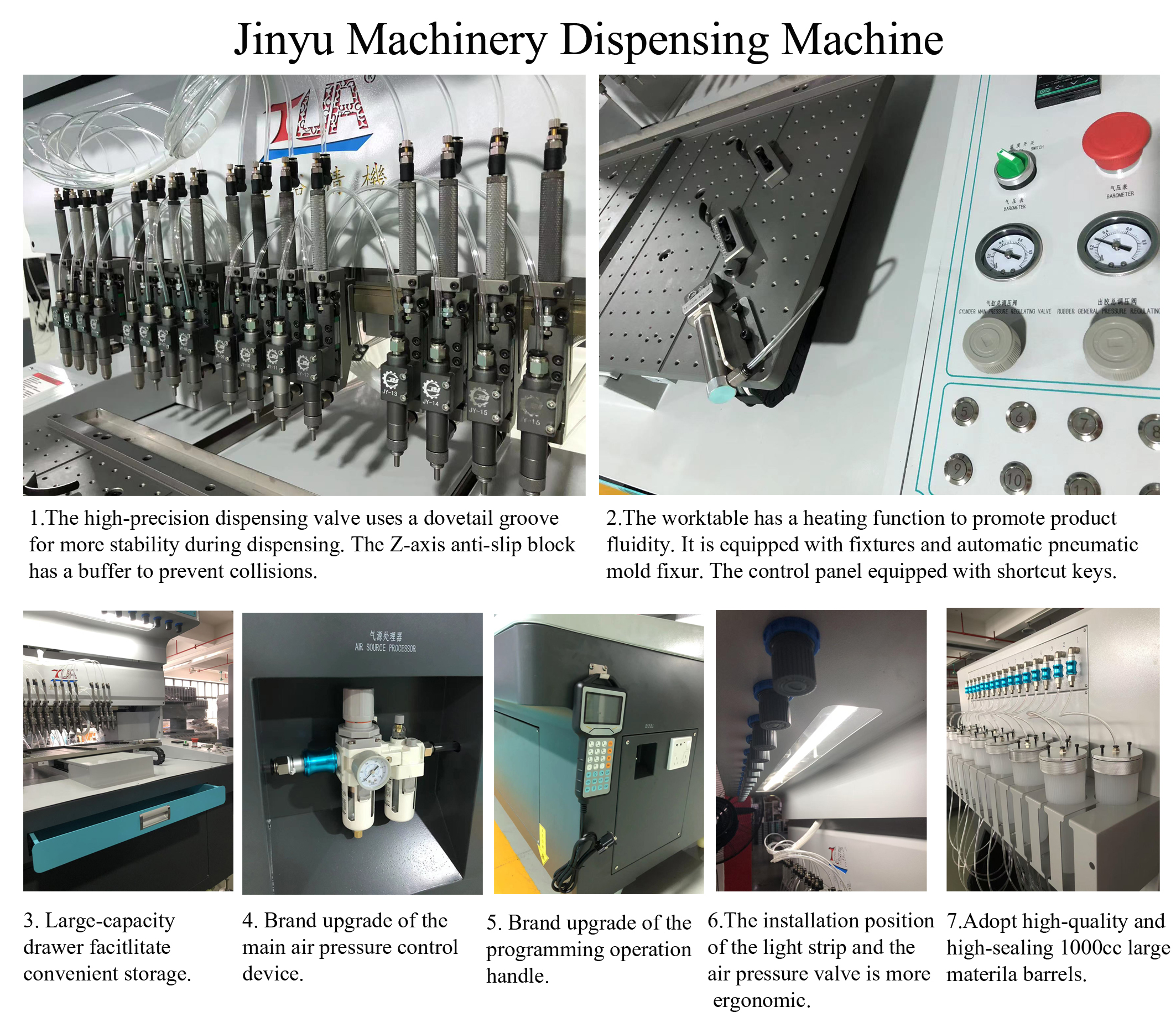

Key Components

12-16-Needle Manifold: Allows for 16 different colors or materials to be loaded simultaneously. Each needle can be programmed for specific coordinates and volumes.

High-Precision Valves: Often equipped with "three-way" or "vacuum drawback" valves to prevent dripping and ensure clean starts/stops.

Automated Stirring: Some advanced models include stirring paddles in the colorant canisters to prevent pigment sedimentation.

3-Axis Motion: Uses X, Y, and Z-axis movements (often powered by servo motors) to navigate complex 2D and 3D shapes.

Common Applications

The 12-16-color configuration is ideal for manufacturers producing high-detail consumer goods:

Soft PVC: Fridge magnets, luggage tags, shoe charms, and zipper pullers.

Silicone: Multi-colored wristbands, phone cases, earphone covers, cup sheeves, ipad cases, toothbrush cases, gamer cases, kid's toys, and branded patches for clothing.

Industrial: Precise potting for electronics or micro-injection for labels.

Dongguan Jinyu Automation Equipment Co., Ltd. was founded in 2000, located in the Chashan industrial area, mainly dealing with silicone, PVC trademarks gifts making equipment, and silicone rubber products machinery, which has been sold all over the world, Jinyu Machinery is all over this industrial, we got the industry's highly recognized. As to reducing the environmental damage, we found silicone industrial, it is environment protection and no harm to humans, it is the best choice. Jinyu researched and developed automatic dispensing machines, special silicone rubber dropping machines, PVC rubber patch machines, automatic vulcanizing machines, silicone hydraulic machines, silicone injection molding machines, silicone label heat transfer machines, silicone embossing machines, which are the best foundation of the industrial, Jinyu Machinery has the features of labors saving, saving electricity, saving management. Jinyu company sincerely looks forward to the visiting of all the regular and new customers, let's develop together.
