American Standard ANSI Grade 1 Fire-Rated Door Lock (DDAL01)
Product Overview
D&D HARDWARE’s ANSI Grade 1 Fire-Rated Door Lock (Model: DDAL01) is a premium door lockset engineered to meet the rigorous standards of the American National Standards Institute (ANSI). Classified as ANSI/BHMA A156.13-2005 Grade 1 (the highest commercial security rating) and UL fire-rated, this lock delivers 2,000,000+ cycle durability, 3-hour fire resistance, and seamless passage functionality. Designed as a passage or closet latch, it features lever operation from both sides at all times—ideal for high-traffic commercial spaces (offices, hotels) and residential closets. Crafted from corrosion-resistant stainless steel, it integrates effortlessly with D&D’s stainless steel door handles, door closers, and panic exit devices, forming a comprehensive door hardware solution. Trusted for its security, fire safety, and compatibility, it addresses the needs of B2B buyers like contractors, facility managers, and door hardware distributors in North American and global markets.
American Standard ANSI Grade 1 Fire-Rated Door Lock - Technical Specifications
- Model Number: DDAL01
- Brand: D&D HARDWARE
- Certifications: - ANSI/BHMA A156.13-2005 Grade 1 (top commercial security rating) - UL Fire-Rated (3-hour fire resistance, UL 10C certified)
- Function: Passage/Closet Latch (lever-operated from both sides at all times, no keyed entry for unrestricted access)
- Material: Corrosion-Resistant Stainless Steel (SUS304 as standard; SUS316 optional for extreme environments)
- Durability: 2,000,000+ cycle test (simulates 20+ years of heavy commercial use)
- Fire Resistance: 3-hour rating at 1,700°F (927°C) – maintains integrity during fires
- Compatibility: Works with standard US door preparations; integrates with D&D’s door handles, door closers, and panic hardware
- Finish Options: Satin Stainless Steel (SSS), Polished Stainless Steel (PSS), Oil-Rubbed Bronze (ORB), Matte Black (PVD)

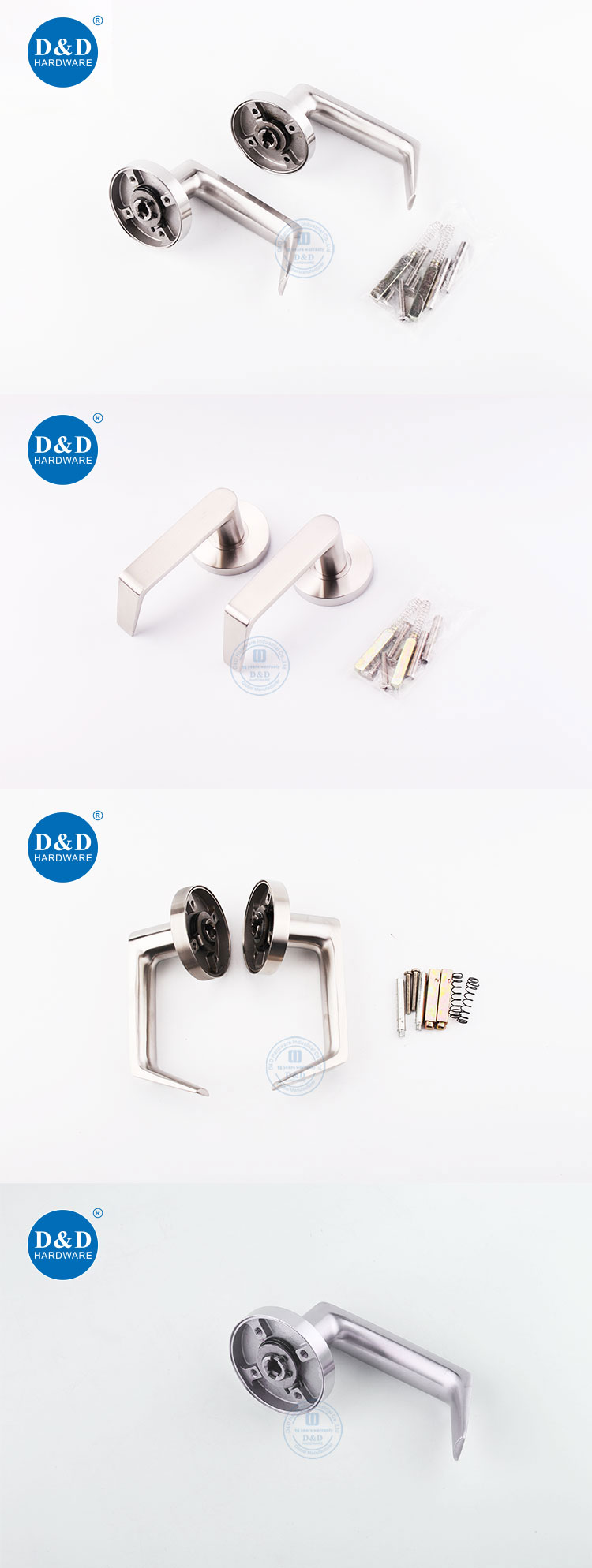

American Standard ANSI Grade 1 Fire-Rated Door Lock - Product Images and Videos
American Standard ANSI Grade 1 Fire-Rated Door Lock - Product Features & Advantages
- ANSI/BHMA A156.13 Grade 1: Top-Tier Commercial Security: Undergoes 2,000,000+ cycle testing and strict strength/security evaluations—outperforming Grade 2/3 locks. Ideal for high-traffic commercial spaces like office buildings, hotel lobbies, and retail stores where durability and anti-tamper performance are critical.
- UL Fire-Rated: 3-Hour Protection for Life Safety: Maintains lock integrity at 1,700°F for 3 hours—compliant with US fire codes (NFPA 80) for egress doors in hospitals, schools, and commercial towers. Ensures safe evacuation during fires.
- Corrosion-Resistant Stainless Steel Construction: Built with SUS304 stainless steel (SUS316 optional for coastal/industrial areas), resisting rust from humidity, cleaning chemicals, and salt air. Perfect for hotel pool areas, office restrooms, or coastal residential properties.
- Passage Latch: Lever Operation from Both Sides: The latch bolt is always operable via levers on either side—ideal for closets, office pantries, or hotel corridors where unrestricted access (no keyed entry) and quick passage are needed. Eliminates privacy lockouts common in basic latches.
- Seamless Integration with D&D Hardware Ecosystem: Matches D&D’s stainless steel door handles (matching SSS/PSS finishes) and door closers (ensures doors close properly after passage). Compatible with panic exit devices for emergency egress in commercial buildings—reducing cross-product compatibility issues.
American Standard ANSI Grade 1 Fire-Rated Door Lock - Installation Steps (ANSI-Compliant)
- Pre-Installation Preparation: - Confirm door material (wood/metal) and thickness (1-3/4" to 2-1/4" standard US doors). - Select finish (match D&D’s Stainless Steel Door Stops or door handles for aesthetic consistency). - Gather tools: ANSI-compliant drill bits, torque screwdriver, template (included with lockset), level, pencil.
- Mark & Cut Door Prep: - Use the included template to mark the lock body mortise, latch bolt hole, and lever mounting holes on the door. - Cut the mortise for the lock body (depth = lock body length) and drill the latch bolt hole (1" diameter) using ANSI-standard dimensions. - Ensure cuts are precise—ANSI Grade 1 locks require exact alignment for optimal performance.
- Install Lock Body & Latch Bolt: - Insert the lock body into the mortise, aligning the latch bolt with the drilled hole. Secure with provided stainless steel screws (tighten to 15–20 in-lbs torque per ANSI specifications). - Test the latch bolt: Operate the lever to extend/retract the bolt—confirm smooth movement without binding.
- Mount Levers & Integrate Hardware: - Attach the levers to both sides of the door, ensuring the spindle connects securely to the lock body’s follower. - For commercial applications, install D&D’s door closer (adjust closing speed to 3–5 seconds for seamless passage). - If integrating with a panic exit device, connect the lock’s latch bolt mechanism to the exit device’s rod (follow ANSI/BHMA A156.3 standards).
- Final ANSI Compliance Testing: - Cycle Test: Operate the lever 100 times—verify smooth latch bolt movement and no loosening of components. - Fire Test Simulation: Visually inspect for proper fire-seal integration (if using fire-rated door assemblies). - Compliance Documentation: Retain ANSI/BHMA and UL certification documents for building inspector audits.
American Standard ANSI Grade 1 Fire-Rated Door Lock - Application Scenarios
The DDAL01 ANSI Grade 1 Fire-Rated Door Lock excels in high-security, high-traffic environments:
- Commercial (Offices, Hotels, Retail): - Use Case: Office pantry doors, hotel corridor doors, retail stockroom passage doors, mall restroom vestibules. - Value: ANSI Grade 1 durability handles 100+ daily users; UL fire rating meets commercial codes; integrates with panic exit devices for emergency egress.
- Hospitality (Resorts, Casinos, Boutiques): - Use Case: Resort pool house doors, casino staff area doors, boutique fitting room doors. - Value: Corrosion resistance withstands poolside humidity; passage latch enables easy guest access; polished finishes (PSS) enhance luxury aesthetics.
- Residential (Luxury Homes, Apartments): - Use Case: Residential closet doors, pantry doors, home office passage doors, apartment common area doors. - Value: ANSI Grade 1 quality ensures lifetime durability; SUS304 resists kitchen moisture; matches D&D’s cabinet handles for cohesive design.
- Institutional (Hospitals, Schools, Government): - Use Case: Hospital supply closet doors, school classroom passage doors, government facility break room doors. - Value: UL fire rating protects patients/students; anti-tamper design deters vandalism; easy-to-clean SSS finish meets hygiene standards.
Value for B2B Buyers: - Contractors: 200,000 units/month supply meets commercial project timelines; ANSI compliance reduces code violations; compatible with D&D’s door hardware ecosystem (one supplier for locks, handles, closers). - Facility Managers: 10-year warranty lowers replacement costs; corrosion resistance reduces maintenance; UL fire rating simplifies annual inspections. - Distributors: Niche focus on ANSI Grade 1 locks fills North American market gaps; OEM services support private-label branding for regional door hardware clients. - Architects: Compliance with ANSI/BHMA and UL standards simplifies US project specifications; finish options align with door hardware palettes for commercial interiors.
Certifications and Compliance
- North American Security & Fire Standards: - ANSI/BHMA A156.13-2005 Grade 1: Tested for 2,000,000+ cycles, strength (withstands 900 lbf force), and anti-tamper performance—meets top commercial security requirements. - UL 10C: Fire-rated for 3 hours at 1,700°F—certified for use on egress doors in buildings subject to NFPA 80 (US) and CAN/ULC-S104 (Canada) fire codes. - BHMA Certified: Independently tested by the Builders Hardware Manufacturers Association for quality and performance.
- Factory & Supply Chain Compliance: - SGS Audited Factory: Verified for ethical manufacturing, traceable material sourcing (each lock links to stainless steel mill batches), and 200,000 units/month production capacity—meeting North American commercial project demands. - ITAR Registered: Compliant with US International Traffic in Arms Regulations (optional for government projects).
American Standard ANSI Grade 1 Fire-Rated Door Lock - Customization Options
D&D offers tailored solutions for DDAL01 to meet North American and global project needs:
- Material & Finish Upgrades: - SUS316 Stainless Steel: Enhanced corrosion resistance for marine resorts, coastal offices, or hospitals near oceans (500-hour salt spray test, no rust). MOQ: 500 units. - Custom PVD Finishes: RAL-matched hues (e.g., office brand colors, hotel signature tones) to align with interior design. MOQ: 300 units. - Antimicrobial Coating: Silver-ion treatment on stainless steel components (reduces 99.9% bacteria) for hospitals, schools, or hotels. MOQ: 300 units.
- OEM/ODM Services for North American Markets: - Private Label: Custom logos on levers, branded packaging, and bilingual (English/Spanish) installation guides. MOQ: 2,000 units. - ANSI Hardware Kits: Bundled with D&D’s door closers, stainless steel door handles, and Stainless Steel Door Stops for turnkey commercial door solutions. MOQ: 3,000 units.
American Standard ANSI Grade 1 Fire-Rated Door Lock - Production Process & Quality Control
D&D’s specialized process ensures each DDAL01 lock meets ANSI Grade 1 and UL standards:
- Material Sourcing (ANSI-Compliant): - Select SUS304/SUS316 stainless steel from US-certified mills; test via XRF to confirm chemical composition (meets ASTM A240 for ANSI compliance). - Reject batches with impurities that could compromise strength or corrosion resistance.
- Precision Machining (Grade 1 Tolerances): - Lock Body & Latch Bolt: CNC-machined to ±0.005" tolerance—ensures ANSI Grade 1 smooth operation and strength. - Levers: Die-cast with ergonomic contours; edges deburred for user safety; finished with PVD/electropolishing for durability.
- Assembly & ANSI Calibration: - Assemble in ISO 8 cleanrooms to avoid debris in mechanisms; use aerospace-grade lubricants for 2,000,000+ cycle life. - Calibrate latch bolt tension to 5–7 lbf (meets ANSI Grade 1 operation force requirements).
- ANSI & UL Testing: - ANSI Cycle Test: 100% of units undergo 5,000 pre-shipment cycles—reject any with friction increase. - UL Fire Test: Random samples endure 3-hour fire testing at 1,700°F—only locks that maintain integrity proceed. - Strength Test: Sample units withstand 900 lbf force without deformation—verifies ANSI Grade 1 impact resistance.
- Packaging & Compliance Documentation: - Pack in ANSI-labeled boxes with UL certification stickers, installation template, and compliance certificates. - Final inspection: Verify ANSI Grade 1 markings, finish quality, and operation—reject batches with ≥0.5% defects. Include batch-specific test reports for buyer audits.
