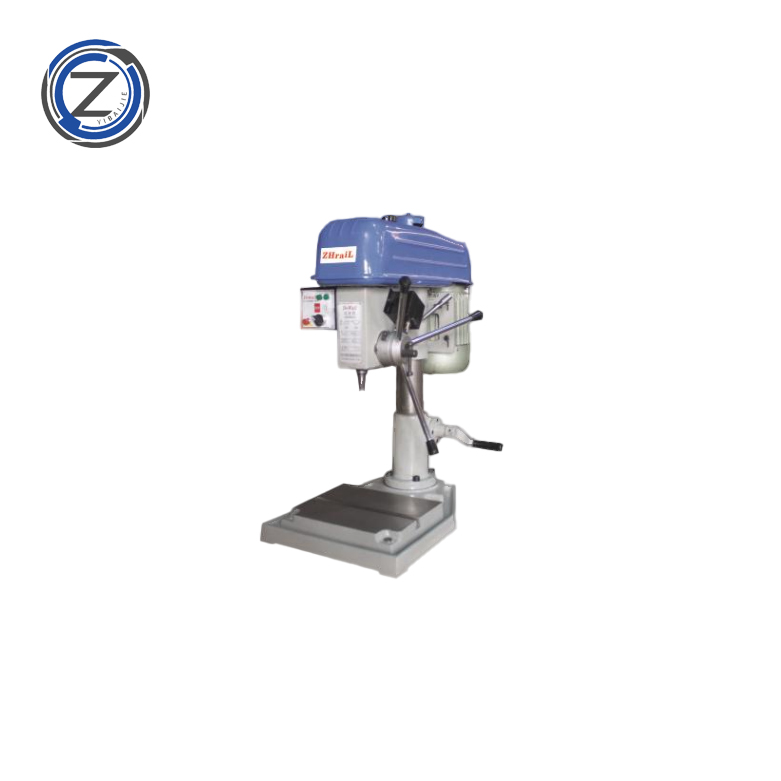

High - efficiency Manual Feed Tapping Machine
1. Product Introduction
Introducing our high - efficiency Manual Feed Tapping Machine, a top - notch Bench Tapping Machine designed to meet your precise tapping needs. As a professional China Tapping Attachment, it combines reliability and performance.
2. Product Model and Parameters
Our Manual Tapping Machine model S4012 comes with the following key specifications:
• Maximum Tapping Diameter: Capable of handling taps up to 12mm, making it suitable for a wide range of small - to - medium - sized tapping tasks.
• Spindle Stroke: With a 100mm spindle stroke, it provides sufficient travel for various workpieces.
• Span: A 200mm span allows for flexible workpiece placement.
• Spindle Taper: Features a B16 spindle taper, ensuring stable and accurate tool holding.
• Motor Power: Equipped with a 0.75Kw motor, delivering consistent power for smooth tapping operations.
• Max Distance from Spindle End to Worktable: 380mm, enabling accommodation of different workpiece heights.
• Spindle Speed Range: 220 - 2000R.P.M, allowing you to adjust the speed according to the material and tapping requirements.
• Overall Dimensions: 720400900mm, a compact size that fits well in most workshops.
• Net Weight: 102Kg, ensuring stability during operation.
3. Product Features (Selling Points)
• Precision Tapping: The design of this Manual Feed Tapping Machine ensures high - precision tapping, with accurate thread formation every time. Whether you are working on metal or other suitable materials, it can produce threads with tight tolerances.
• Manual Feed Control: The manual feed feature gives operators full control over the tapping process. This is especially beneficial for delicate workpieces or when a more hands - on approach is needed to ensure perfect thread quality.
• Durable Construction: Built with high - quality materials, this Bench Tapping Machine is designed for long - term use. The robust structure can withstand the rigors of daily workshop operations, reducing the need for frequent repairs or replacements.
4. Material Characteristics
The main body of the machine is constructed from high - strength cast iron, which provides excellent stability and vibration damping during tapping. The spindle and other key components are made of high - quality alloy steel,经过 precision machining and heat treatment to ensure high hardness, wear resistance, and long service life.
5. Product Application Fields
• Machinery Manufacturing: Ideal for producing internal threads in components such as gears, shafts, and brackets during the manufacturing of various machinery.
• Automotive Industry: Can be used for tapping threads in small automotive parts like fasteners, connectors, and engine components.
• Hardware Processing: Suitable for tapping operations on hardware products such as nuts, bolts, and metal fittings.
• Electrical Equipment Manufacturing: Helps in creating threads for electrical enclosures, terminal blocks, and other electrical components.
6. Product Customization Requirements
• Special Tapping Capacity: If you need to tap larger or smaller diameters than the standard 12mm, we can customize the machine to meet your specific maximum tapping diameter requirements.
• Speed Range Adjustment: For special material processing that requires a different spindle speed range, we can reconfigure the machine's speed settings.
• Worktable Modifications: Custom worktable sizes or designs can be provided to better fit your unique workpiece handling needs.
7. Benefit Analysis for Customers
• Improved Product Quality: The high - precision tapping capability ensures that the threads produced are of consistent quality, reducing the risk of product defects and improving the overall quality of your end - products.
• Increased Efficiency: With its reliable performance and flexible manual control, this tapping machine can speed up your tapping operations compared to manual tapping by hand tools. It allows for faster completion of production tasks, thereby increasing overall workshop efficiency.
• Cost - effectiveness: The durable construction minimizes maintenance and replacement costs over time. Also, the accurate tapping reduces the waste of workpieces due to tapping errors, saving on material costs.
8. Basic FAQ
Q1: Can this Manual Tapping Machine be used for non - metal materials?
A1: Yes, as long as the non - metal material has sufficient hardness to withstand the tapping process. Materials like certain engineering plastics can be tapped with appropriate taps.
Q2: How often does the machine need maintenance?
A2: Regular maintenance, such as lubricating the spindle and checking for wear on key components, is recommended every 3 - 6 months depending on the frequency of use.
Q3: Is it difficult to operate this Bench Tapping Machine?
A3: No, the manual feed operation is relatively straightforward. We also provide an operation manual and can offer training if needed to ensure your operators can use it proficiently.
