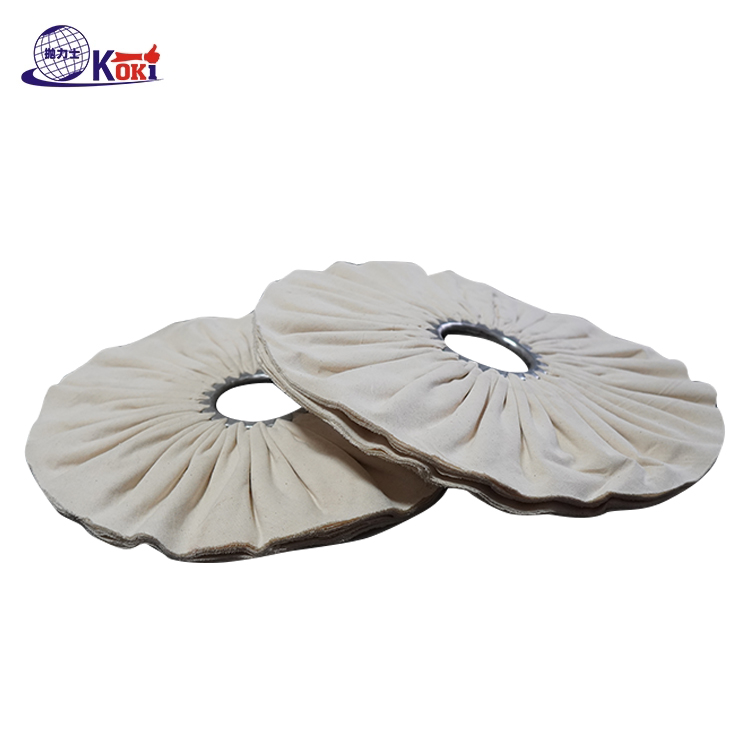

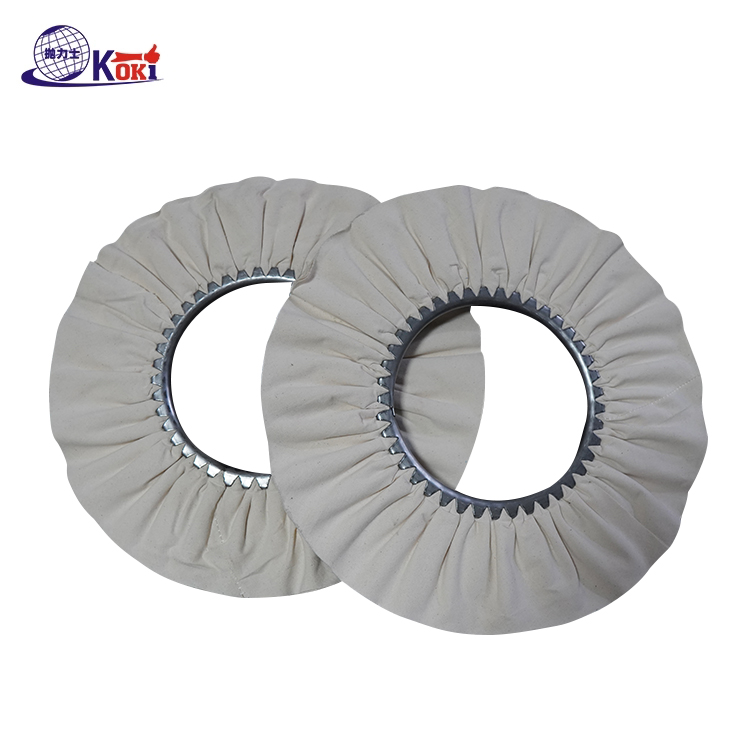

Soft cloth air airway buffing wheel - high-efficiency heat dissipation precision polishing edge
Designed to solve the "overheating damage" and "inefficient" pain points during high-speed polishing, the twill soft cloth air airway polishing wheel innovatively integrates the tenacity of the twill fabric and the air path heat dissipation structure, while ensuring the fine polishing effect, it realizes fast heat removal, and is the optimal tool for high hardness metal, large workpiece finishing and continuous operation scenarios.
Core technology: airway enabling, polishing and upgrading
-Three-dimensional air channel structure, fast heat dissipation without burning parts: 3-5 spiral air channels are reserved on the wheel body, which can quickly dredge the heat generated by friction when polishing at high speed, avoid the discoloration and deformation of the workpiece surface due to high temperature, especially suitable for continuous polishing of metal materials with strong heat conductivity such as stainless steel and aluminum alloy.
-Soft twill cloth base material, polishing fine without scratch: High-density polyester twill cloth is used, the cloth surface fiber is tight and has excellent elasticity, which can carry polishing agent evenly through the texture gap, effectively remove fine scratches and oxide layers, and can gently fit the workpiece surface, eliminate secondary scratch, and adapt to mirror parts, electroplating parts and other high-precision requirements.
-Tough and tear resistant, doubled durability: the cloth layer is subject to high temperature shaping treatment, matched with the seam sewing process, and the gas path edge is not easy to crack and thread off, and the structure is stable without deviation when rotating at high speed; The single service life is 2 times longer than that of ordinary air-less cloth wheel, reducing the time cost of frequent wheel change in industrial production.
Specification and adaptability: accurately match the scene requirements
-Regular specification: diameter of 8 inches - 20 inches (covering the dimension of main polishing machine), thickness of 15mm-30mm, airway width of 5mm-8mm, non-standard dimension and airway quantity can be customized;
-Installation mode: support two types of installation: inner hole type (hole diameter: 10mm-20mm) and flange plate type. It is suitable for electric polishing machine, vertical polishing machine and other equipment. It only takes 1 minute for loading and unloading;
-Suitable material: perfectly compatible with metals such as stainless steel, copper, aluminum and titanium alloy, and non-metals such as high hardness plastic and resin, especially suitable for large/special-shaped workpiece polishing such as automobile hub, mechanical accessories and hardware mold.
Professional use guide
Rotation speed adaptation: it is recommended to rotate at a speed of 2000-4000 rpm. For metal polishing, select a high rotation speed (3000-4000 rpm) to improve the efficiency. For non-metal polishing, select a low rotation speed (2000-2500 rpm) to avoid material damage;
Polishing compound matching: when processing the metal oxide layer, match the medium-coarse abrasive paste to quickly remove the marks; Mirror polishing wax shall be replaced in the fine polish liquid, and the mirror effect can be formed once by combining the heat dissipation advantage of air channel;
Maintenance tips: after each use, blow off the residual polishing powder and debris in the air duct with compressed air to avoid blocking and affecting heat dissipation; Keep the cloth away from oil stain and damp environment for long-term storage to prevent mildew on the cloth surface.
|
Product name
|
Bias soft airway buffing wheel
|
|
Color
|
Customizable
|
|
Diameter
|
8"~24", custom
|
|
Shape
|
Round
|
|
Size
|
Customer Size
|
|
Feature
|
Long Life
|
|
Keyword
|
bias cutting polishing wheel
|
|
Application
|
Polishing Workpiece
|
|
Package
|
Bag
|
|
Grade
|
Great
|
