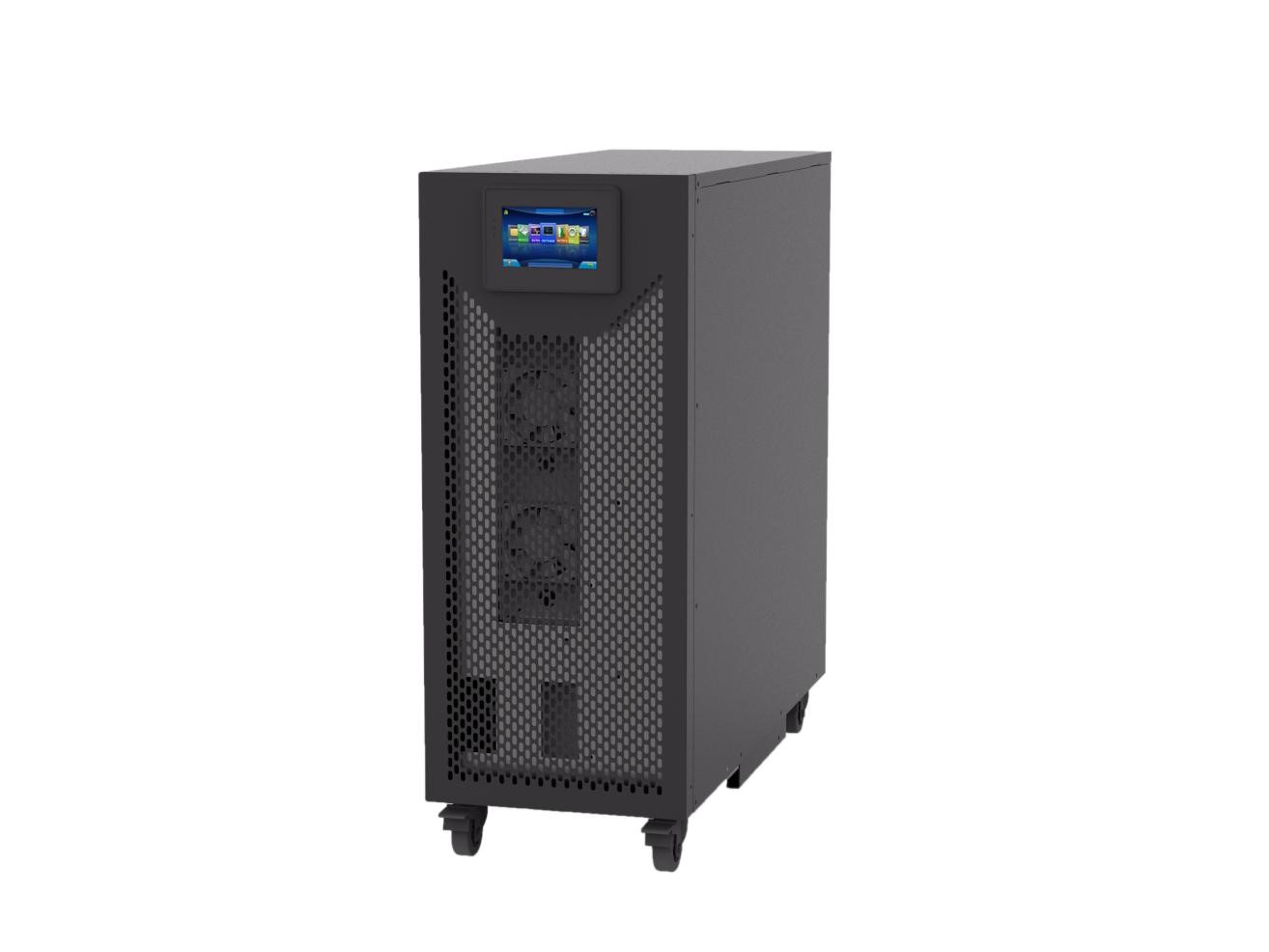

LN33 Series High Frequency Online UPS

When users deploy the LN33 Series UPS in data centers or IT rooms, they experience reliable power protection, even during grid fluctuations, ensuring stable system performance. The high energy efficiency and user-friendly touchscreen make maintenance easy and worry-free. Intelligent battery management extends battery life, reducing replacement frequency and long-term costs. With parallel operation capability, users have the flexibility to expand capacity as needed, enhancing the system's reliability and resilience. This UPS gives users confidence in their power supply, knowing their critical operations are safeguarded at all times.

Capacity Range: 6-30kVA
Input: 3-Phase (200V/208V/220V)
Output: 3-Phase (200V/208V/220V)

Introduction

The LN33 Series (6-30kVA) adopts advanced online double conversion technology, ensuring stable, pure sine wave power output and effectively eliminating grid-related power issues. It offers high reliability, high performance, a high input power factor, and low input current harmonics—supporting both energy efficiency and environmental protection.

Applications

Designed for use in:

Small to medium-sized data centers
IT machine rooms
Financial institutions
Traffic dispatch centers
Security monitoring facilities

Key Features

Wide Input Voltage Range: Adaptable to a variety of power conditions, enhancing system stability.
Double Conversion Technology: Provides stable, clean power output suitable for sensitive equipment.
IGBT-based Control: Ensures precise management and high reliability.
Advanced Battery Management: Extends battery life with intelligent management.
High Efficiency: Up to 96%, reducing operational energy costs.
User-friendly Touchscreen: Includes a 4.3-inch color display for easy monitoring and control.
Parallel Operation: Supports up to 3 units in parallel, allowing for increased capacity and redundancy.

Technical Specifications

Models Available: LN3306KS/KL (6kVA), LN33010KS/KL (10kVA), LN33015KS/KL (15kVA), LN33020KS/KL (20kVA), and LN33030KS/KL (30kVA).
Input:
- Phase Configuration: 3-phase + Neutral + Ground.
- Voltage Range: 176V-276V (line-to-line).
- Frequency: 40-70Hz.
- Power Factor: ≥0.99 at full load.
Output:
- Voltage: 220V, 230V, or 240V (adjustable).
- Power Factor: 1.
- Voltage Regulation: ±1%.
- Frequency: 50/60Hz (auto-sensing).
Battery: External configuration with charging current ranging from 1-10A.
System Interface: USB, CAN, RS485, Parallel Port, EPO (Emergency Power Off), SNMP (optional), and dry contacts for remote monitoring.
Physical Dimensions: 380mm width x 750mm depth x 960mm height.
Weight: Ranges from 42 to 82 kg depending on model.
