The Thermoplastic Hose is a high-performance hose designed with premium synthetic fiber braids as the reinforcement, providing excellent corrosion resistance and high-temperature tolerance. This Aramid Fiber Braided Hose is suitable for transporting various resins, solvents, chemicals, and liquids, making it widely applicable in industries such as chemical processing, pharmaceuticals, automotive, and aerospace.

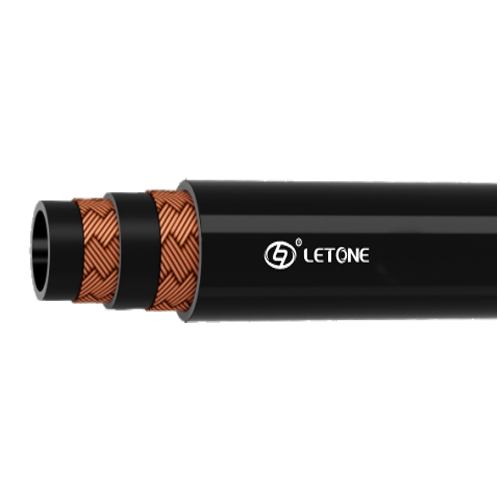

The Steel Wire Braided Rubber Hose finds wide application in liquid transport across various industrial and commercial sectors. Whether it's chemical manufacturing, pharmaceutical processes, automotive maintenance, or aerospace operations, this hose offers reliable solutions for liquid transfer. Customizable with different models and specifications, it caters to diverse needs and work environments, ensuring optimal performance and efficiency.
| I.D. | O.D. | W.P. | W.P. | MIN.B.P. | W.T.* | ||||
| Dash | In. | mm | mm | MPa | psi | MPa | psi | mm | g/m |
| -3 | 3/16-1 | 4.8 | 9.8 | 35 | 5070 | 140 | 20280 | 30 | 130 |
| -4 | 1/4-1 | 6.3 | 12.7 | 27.5 | 3990 | 110 | 15960 | 40 | 180 |
| -5 | 5/16-1 | 7.9 | 14.3 | 25 | 3620 | 100 | 14480 | 55 | 215 |
| -6 | 3/8-1 | 9.5 | 15.9 | 22.5 | 3260 | 63.6 | 13040 | 65 | 240 |
| -8 | 1/2-1 | 12.7 | 19.8 | 17.5 | 2540 | 70 | 10160 | 85 | 310 |
| -10 | 5/8-1 | 15.9 | 23.3 | 14 | 2030 | 56 | 8120 | 115 | 410 |
| -12 | 3/4-1 | 19 | 26.5 | 12 | 1740 | 48 | 6960 | 140 | 500 |
| -16 | 1-1 | 25.4 | 34 | 10 | 1450 | 40 | 5800 | 180 | 650 |
| -4 | 1/4-2 | 6.3 | 13.3 | 35 | 5070 | 140 | 20280 | 40 | 290 |
| -5 | 5/16-2 | 7.9 | 14.9 | 32.5 | 4710 | 130 | 18840 | 50 | 340 |
| -6 | 3/8-2 | 9.5 | 16.7 | 29 | 4200 | 116 | 16800 | 70 | 400 |
| -8 | 1/2-2 | 12.7 | 19.8 | 26 | 3770 | 104 | 15080 | 80 | 560 |
| -10 | 5/8-2 | 15.9 | 23.3 | 20 | 2900 | 80 | 11600 | 130 | 630 |
| -12 | 3/4-2 | 19 | 26 | 17.5 | 2540 | 70 | 10160 | 160 | 750 |
| -16 | 1-2 | 25.4 | 33 | 12 | 1740 | 48 | 6960 | 220 | 1000 |
Note: The actual parameters are subject to the final atlas
