Application scenarios of two-color Infrared pyrometer
1. Industrial Furnaces: Infrared pyrometers are particularly useful in high-temperature applications where traditional contact thermometers cannot be used. The two-color infrared pyrometer can accurately measure the temperature of the furnace walls and the material being heated.
2. Glass Manufacturing: Infrared pyrometers can accurately measure the temperature of molten glass as it moves through the production process. This allows manufacturers to ensure that the glass is at the correct temperature for shaping and forming.
3. Steel Production: Infrared pyrometers are used to measure the temperature of molten steel as it is poured into molds. The two-color infrared pyrometer can accurately measure the temperature of the steel, ensuring that it is at the correct temperature for casting.
4. Aerospace: Infrared pyrometers can accurately measure the temperature of the engine components, allowing engineers to monitor the performance of the engine and make any necessary adjustments.
5. Automotive: Infrared pyrometers can be used to measure the temperature of engine components, such as pistons and cylinders. This allows engineers to monitor the performance of the engine and make any necessary adjustments to improve efficiency and reduce emissions.

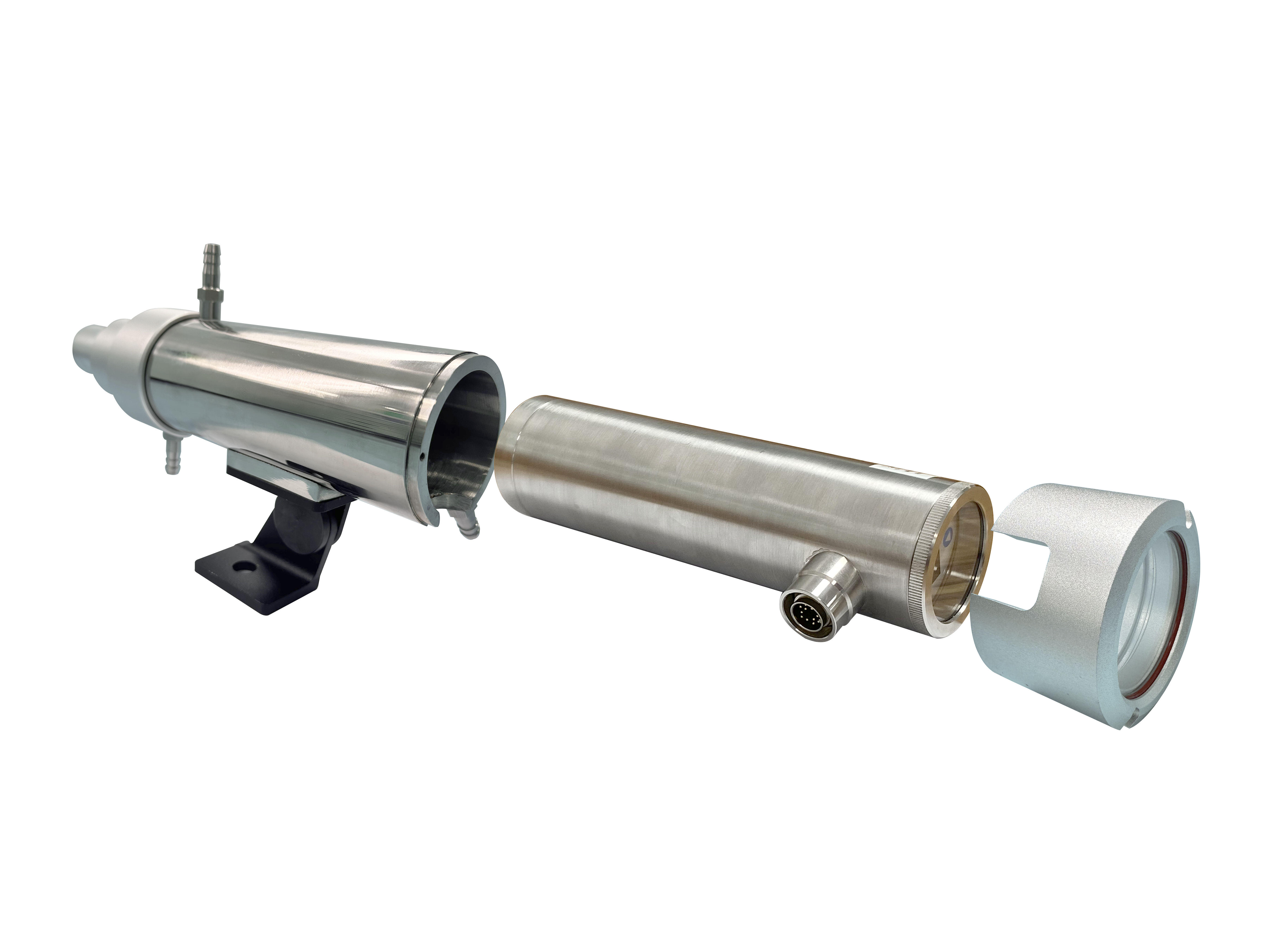

Product Assembly Structure
Technology Specification
STRONG-SR Series Two Color Pyrometers
|
Model |
STRONG-SR-6016 |
STRONG-SR-6018 |
STRONG-SR-7025 |
STRONG-SR-7030 |
|
Measuring Range |
600℃～1600℃ |
600℃～1800℃ |
700℃～2500℃ |
700℃～3000℃ |
|
Detector |
Si/Si（Laminated Silicon） |
|||
|
1-color Wavelength |
1.08μm |
|||
|
2-color Wavelength |
Wavelength1：（0.7～1.08）μm；Wavelength2：1.08μm |
|||
|
Main Applications |
Hot rolled steel, wire rod, metal forging, casting, induction heating, melting glass, cement kiln, semiconductor, vacuum furnace, polysilicon, monocrystal silicon |
High-temperature furnace, graphite furnace, vacuum furnace, semiconductor furnace |
||
|
Distance Coefficient |
60：1 |
Standard 100：1，60：1 customized |
200：1 |
|
|
Measuring Distance |
Standard focal length：adjustable from 0.35m to infinite；near focal length：0.2m～0.5m |
|||
|
Measuring Accuracy |
±0.5%T（T is measured value） |
|||
|
Resolution |
0.1℃ |
|||
|
Repeat Accuracy |
±2℃ |
|||
|
1-color Coefficient |
0.100～1.100，adjustable in 0.001 increment |
|||
|
2-color Coefficient |
0.850～1.150，adjustable in 0.001 increment |
|||
|
Response Time |
Fastest 5ms，5ms-99.99s adjustable |
|||
|
Signal processing |
Peak value, valley value, average temperature value; Ambient temperature too high/low alarm; switch between one-color and two-color mode; power down protection. |
|||
|
Output |
Group1: Multiple analog outputs 16bit（4mA～20mA, 0mA～20mA, 0V～5V, 0V～10V optional), output resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω，maximum current output load 10mA |
|||
|
Group2: Analog outputs 4mA～20mA, resolution 16bit, accurate to 0.1℃, maximum current loop output load 600Ω |
||||
|
Alarms output: upper or lower temperature limit alarm；PhotoMOS relay (infinite service life) on resistance≤2Ω, maximum allowed voltage: AC42V or DC60V; maximum allowed current: 120mA; response time: 2ms |
||||
|
PNP level output（current output 100mA，with overload protection.） |
||||
|
RS485 output，with functions of parameters modification, data logging and inquiry |
||||
|
Display Mode |
Industrial-grade self-luminous OLED display screen |
|||
|
Power Input |
DC（20～30）V，with over voltage, over current and short circuit protection; Power consumption： 5W（24V@200mA）with built-in EMI wave filter, resistance to pulse group’s Interference: 2500VDC |
|||
|
Warm up time |
With built-in 40℃ constant temperature heater, start temperature measurement within 10mins after power on. Assembled whole-process temperature compensation, temperature measurement accuracy is nearly unaffected by ambient temperature. |
|||
|
Aiming Method |
Green visible aiming laser or eyepiece, choose 1 |
|||
|
Port |
Imported sealed plug and 12-core high-temperature shielded cable |
|||
|
Operating Environment |
No water cooling：-20℃～+60℃，air purge pressure: 0.1MPa，flow rate: 6L/ min With water cooling：-20℃～+200℃，water cooling pressure: 0.2MPa，flow rate: 2L/min |
|||
|
Protection Level |
IP65 |
|||
