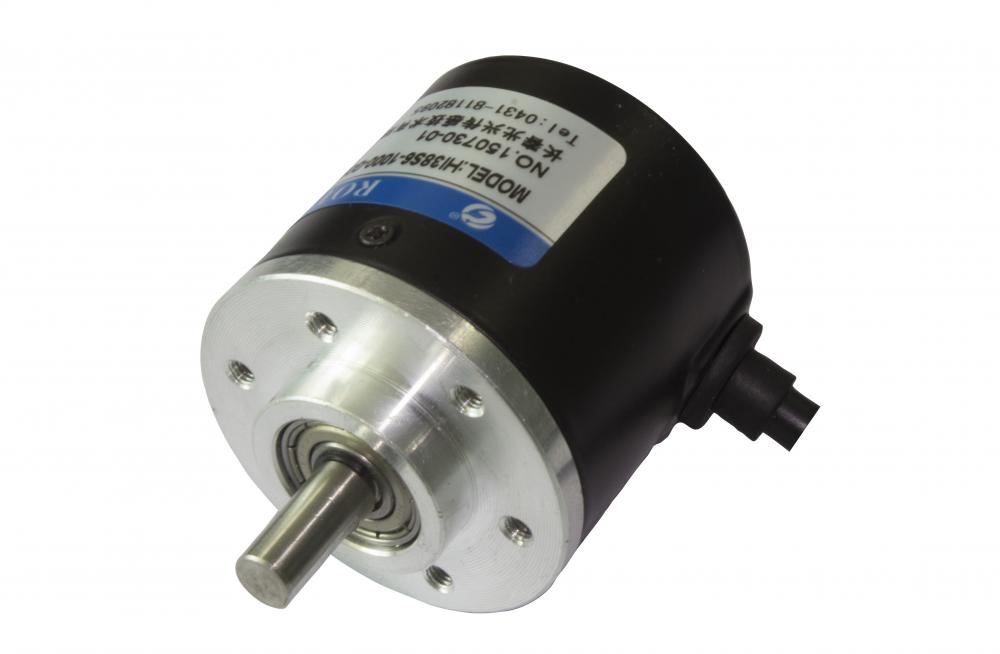

Encoder-specific term: maximum response speed. The response formula is as follows: maximum response frequency (Hz)/ (pulse number/revolution) × 60 = shaft speed rpm
Electrical parameters
Resolution
10-5000P/R
10-5000P/R
Circuit characteristics
Current type (C)
Voltage type (E)
Voltage
DC(5-30)V
DC(5-30)V
Current consumption
80mA Max.
100mA Max.
Signal high level
VH＞Vcc-0.7V
VH＞Vcc-0.7V
Signal low
VL＜0.5V
VL＜0.5V
Output signal
A B or A B Z
A B or A B Z
Response frequency
300KHz Max.
300KHz Max.
Signal rise time
/
Max.1μs
Signal fall time
/
Max.1μs
Insulation resistance
Above 50MΩ (DC500V megohmmeter)
Above 50MΩ (DC500V megohmmeter)
Short circuit protection
Have
Have
Power reverse wiring protection
Have
Have
Electrical parameters
Resolution
10-5000P/R
10-5000P/R
Circuit characteristics
Push-pull (F)
Differential (L)
Voltage
DC(5-30)V
DC(5-30)V
Current consumption
125mA Max.
80mA Max.
Signal high level
VH＞Vcc-0.7V
VH＞Vcc-0.7V
Signal low
VL＜0.5V
VL＜0.5V
Output signal
A B or A B Z
A A B B or A A B B Z Z
Response frequency
300KHz Max.
300KHz Max.
Signal rise time
Max.1μs
Max.1μs
Signal fall time
Max.1μs
Max.1μs
Insulation resistance
Above 50MΩ (DC500V megohmmeter)
Above 50MΩ (DC500V megohmmeter)
Short circuit protection
Have
Have
Power reverse wiring protection
Have
Have
Mechanical parameters
Spindle diameter
Φ6mm (can be customized)
Protection level
IP52
Shaft speed
6,000rpm Max.
Shaft load
Radial: 20N Axial: 10N
Impact resistance
980m/s (2 X Y Z three directions each 3 times, each lasting 6ms)
Vibration resistance
50m/s^2 (10～200Hz X Y Z each direction for 2 hours)
Starting torque
1×10^-4 N.m（25℃）
Moment of inertia
2×10^-5 kgm^2
Product weight
About 0.15Kg
Working humidity
35～85%RH (no condensation)
Operating temperature
-10～70℃ Storage temperature -25～85℃
Angular acceleration
1×10r^4ad/s 2
If you are interested in the product, contact 2bvideo.com for more information for more information
