Product details

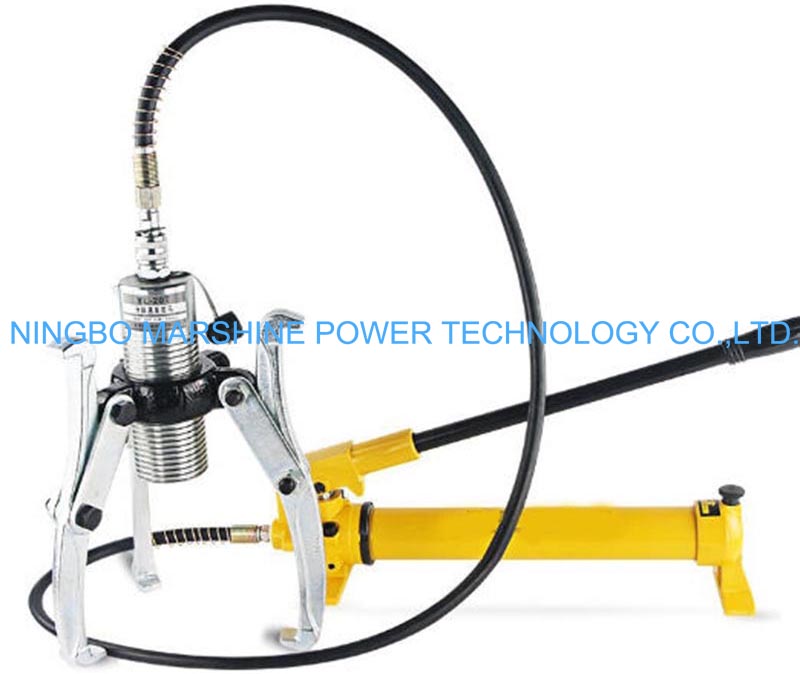

Split Type 3 Jaw Hydraulic Gear Puller

The MARSHINE is a well-known industrial tools manufacturer, which specializes in the design of space-saving and multi-functional tools that are powerful enough for use by maintenance and repair teams. The MARSHINE Split Type 3 Jaw Hydraulic Gear Puller is a great multi-use option, which allow it to adjust the jaws and utilizes hydraulic power, and making it easier to remove bearings, gears, and any type of press fit component.

The MARSHINE Split Type 3 Jaw Hydraulic Gear Puller includes a range of capabilities from 5 to 50 tons, and the YLF-50T can take on the most demanding disassembly works.

The 50T hydraulic gear puller can provide a maximum pull out horizontal distance up to 500 mm, and a maximum vertical pull out distance of 200 mm, which allow it good enough to take care of huge parts.

Its 3jaw and 2jaw parts are interchangeable, the users can adapt their configurations depending on their needs.

The height of the jaws can be adjusted freely to fit the parts of the different sizes.

The hydraulic cylinder is solid machined from solid steel for safety and durability when working high force.

The hydraulic puller is perfect for maintenance of machinery, such as for disassembling 10T-class bearings on industrial motors with the YLF-10T.

It is also a staple in auto mechanic toolboxes, and featuring a 2jaw design that can be utilized to slide gears off vehicle transmission systems.

The MARSHINE Hydraulic Bearing Puller is superior in factory equipment overhauling process, for example the YLF-30T to disassemble large press-fit parts with a horizontal pulling distance of 300 mm.

It is also applicable for building machinery repair, which can be disassembled the heavy machinery parts by the variation of the jaw heights.

Product Parameter

Model	Maximum Transverse Pull Distance (mm)	Maximum Longitudinal Pull Distance (mm)	Spindle Stroke (mm)	Working Position (T)	Weight (kg)
YLF-5T	200	160	50	5	6.6
YLF-10T	250	160	50	10	10.5
YLF-15T	300	180	50	15	12
YLF-20T	350	200	50	20	16
YLF-30T	400	200	50	30	23
YLF-50T	500	200	60	50	34
