RVP8 Series check valve

RVP8 Series check valve

2 year ago

8 0

Jiangsu haohong hydraulic Co.Ltd

 1 min year

Product details

Product description

RVP Series Hydraulic Check Valves is one kind of efficient check valve designed specifically for liquid fluid control systems. It plays an important role in liquid pipelines, ensuring that the liquid flows in one direction and preventing reverse flow. This valve has reliable sealing performance and excellent durability, suitable for various liquid fluid control applications.RVP Series Hydraulic Directional Control Valves have many sizes for you to choose.

Haohong hydraulic also has the S10P Series and Z1S Series Hydraulic Check Valves.Solenoid Directional Valves could work with RVP Series Check valve well.

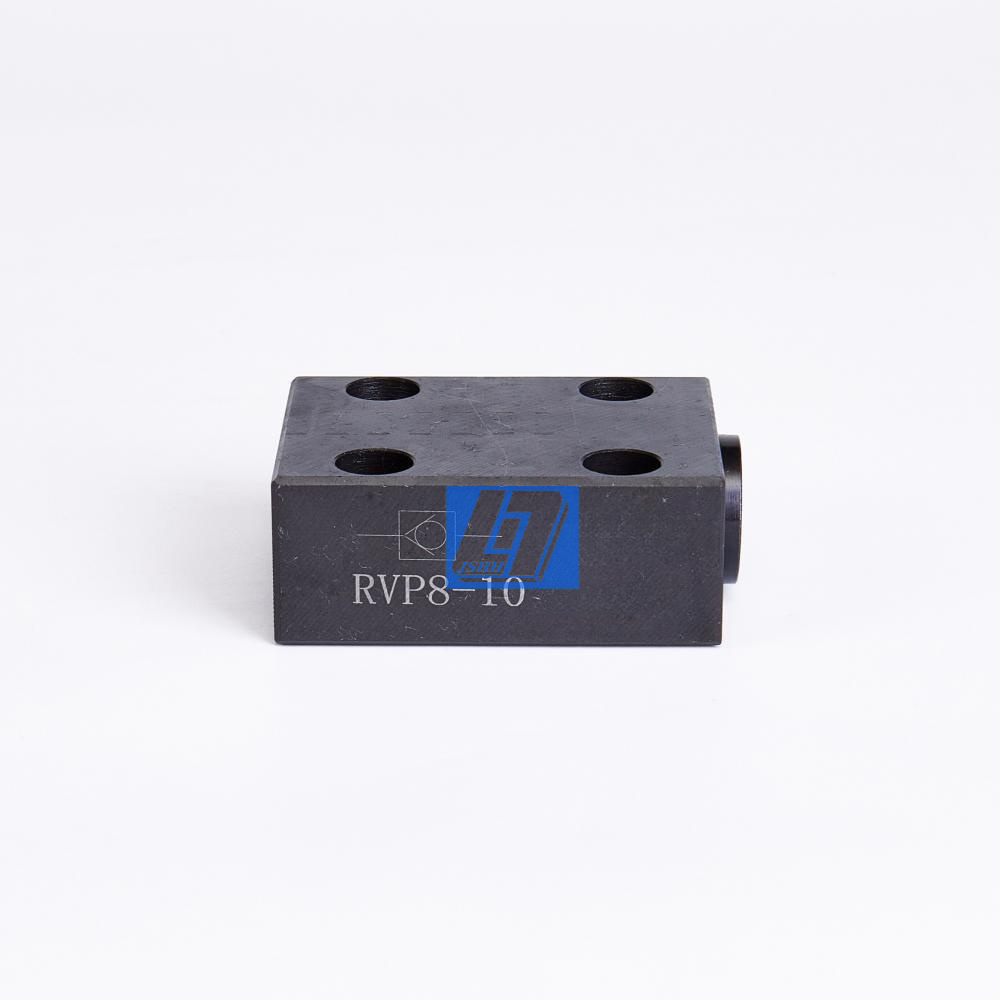

RVP8 Series Check Valve

Features and advantages:
1. Efficient performance: The RVP one-way valve adopts advanced fluid dynamics design, ensuring that liquid flows in one direction and minimizing pressure loss. It can respond quickly and provide highly stable flow control.
2. Reliable sealing performance: The valve adopts high-quality sealing materials and advanced sealing technology to ensure no leakage in the closed state. It can withstand high pressure and high temperature environments and maintain long-term stability.

3. Strong durability: RVP one-way valves are made of high-quality materials, which have excellent corrosion resistance and wear resistance. It can operate for a long time under harsh working conditions, reducing the frequency of maintenance and replacement.

6cff5d4d57a66691f6695e11c9

c72fd581f4bf0c2146c73990c8

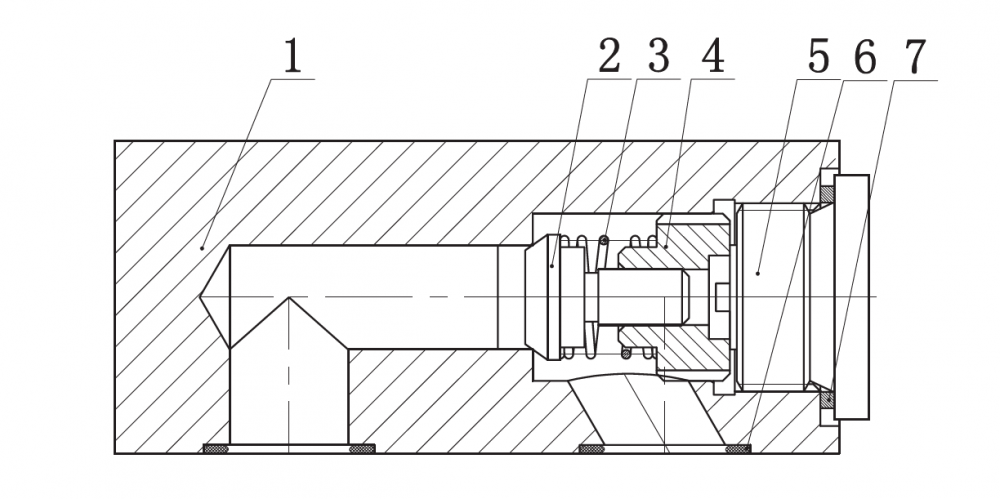

1. Valve body

2. Taper valve core

3. Spring

4. Spring seat

5. Plug screw

6. O ring

7. Bonded washer
