Morse Taper Adapter with BT CNC Tool Holder ,BT tool holders use metric thread pull stud. We have G6.3 rpm 12000-16000 and G2.5 rpm 18000-25000.BT-MTA Morse taper milling tool holder, suitable for clamping type DIN228-1A with flat tail Morse tool holder.Morse taper adapter suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining.

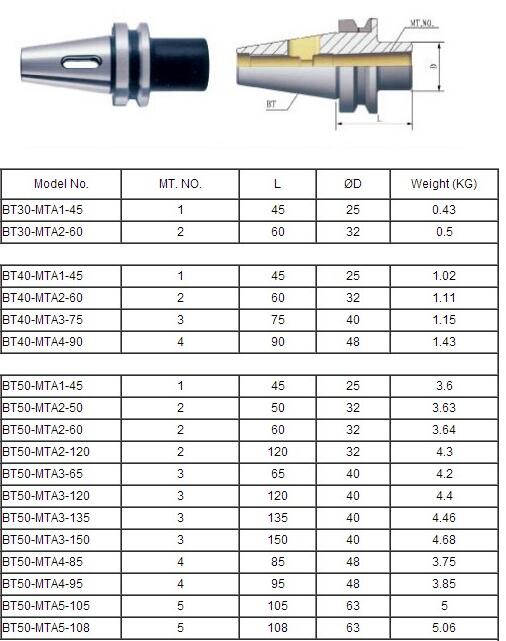

BT MTA Morse Taper Adapter Holder
1.Material :20CrMnTi
2.Hardness:HRC52-54
3.Runout:0.005mm
4.Cooling:AD;AD/B can be made by request.
5.Balancing:G6.3/15000 RPM
6.Usage:for holding tools with Morse taper shank and tang according to DIN228-1 form B.
|
Model |
MT.NO. |
L |
d |
Weight(kg) |
|
|
BT30-MTA1-45 |
1 |
45 |
25 |
0.43 |
|
|
BT30-MTA2-60 |
2 |
60 |
32 |
0.5 |
|
|
BT40-MTA1-45 |
1 |
45 |
25 |
1.02 |
|
|
BT40-MTA2-60 |
2 |
60 |
32 |
1.11 |
|
|
BT40-MTA3-75 |
3 |
75 |
40 |
1.15 |
|
|
BT40-MTA4-90 |
4 |
90 |
48 |
1.43 |
|
|
BT50-MTA1-45 |
1 |
45 |
25 |
3.6 |
|
|
BT50-MTA2-50 |
2 |
50 |
32 |
3.63 |
|
|
BT50-MTA2-60 |
2 |
60 |
32 |
3.64 |
|
|
BT50-MTA2-120 |
2 |
120 |
32 |
4.3 |
|
|
BT50-MTA3-65 |
3 |
65 |
40 |
4.2 |
|
|
BT50-MTA3-120 |
3 |
120 |
40 |
4.4 |
|
|
BT50-MTA3-135 |
3 |
135 |
40 |
4.46 |
|
|
BT50-MTA3-150 |
3 |
150 |
40 |
4.68 |
|
|
BT50-MTA4-85 |
4 |
85 |
48 |
3.75 |
|
|
BT50-MTA4-95 |
4 |
95 |
48 |
3.85 |
|
|
BT50-MTA4-105 |
4 |
105 |
63 |
5 |
|
|
BT50-MTA4-108 |
4 |
108 |
63 |
5.06 |
|
|
suitable for clamping type DIN228-1A with flat tail Morse tool holder |
|
||||
|
|
|||||
