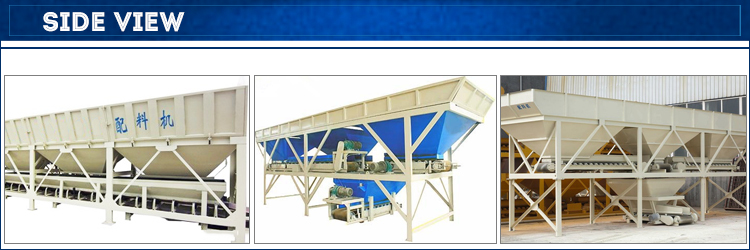

Individually Weighed Batching Plant
The batching machine can be used together with concrete mixer and make up a simple concrete batching plant. It is the best choice for all kinds of industrial and civil construction. If combined with a double-way conveying belt, it can serve two mixers at the same time, which is really economic.
Model
PLD2400
PLD3200
PLD4800
Volume of weighing hopper
2400L
3200L
4800L
Storage bin capacity
20m3×4
25m3×4
30m3×4
Productivity
120m3/h(drier)
160m3/h(drier)
280m3/h(drier)
Batching accuracy
±1%
±1%
±1%
Maximum weighing magnitude
4000kg
4600kg
6000kg
Kinds of batching aggregate
3–4
3–4
3–4
Feeding height
3200mm
3200mm
3600mm
Transition belt speed
1.6m/s
1.6m/s
1.6m/s
Power
22kw
22kw
22kw
Weigh
7850kg
9600kg
10200kg
Size (l×w×h)(mm)
12328×2200×4122
13228×3250×4122
15520×3900×5090
The first batching and weighing process is a procedure of automatic drop reversion, and it will batch materials depending on this rectification result later on.
Attentions:
Electric control system: The system is mainly made up of batching controller and heavy current circuit. It’s the core of batching machine and is used for weighing, displaying and operating the machine and finishing all automatic batching procedures.
