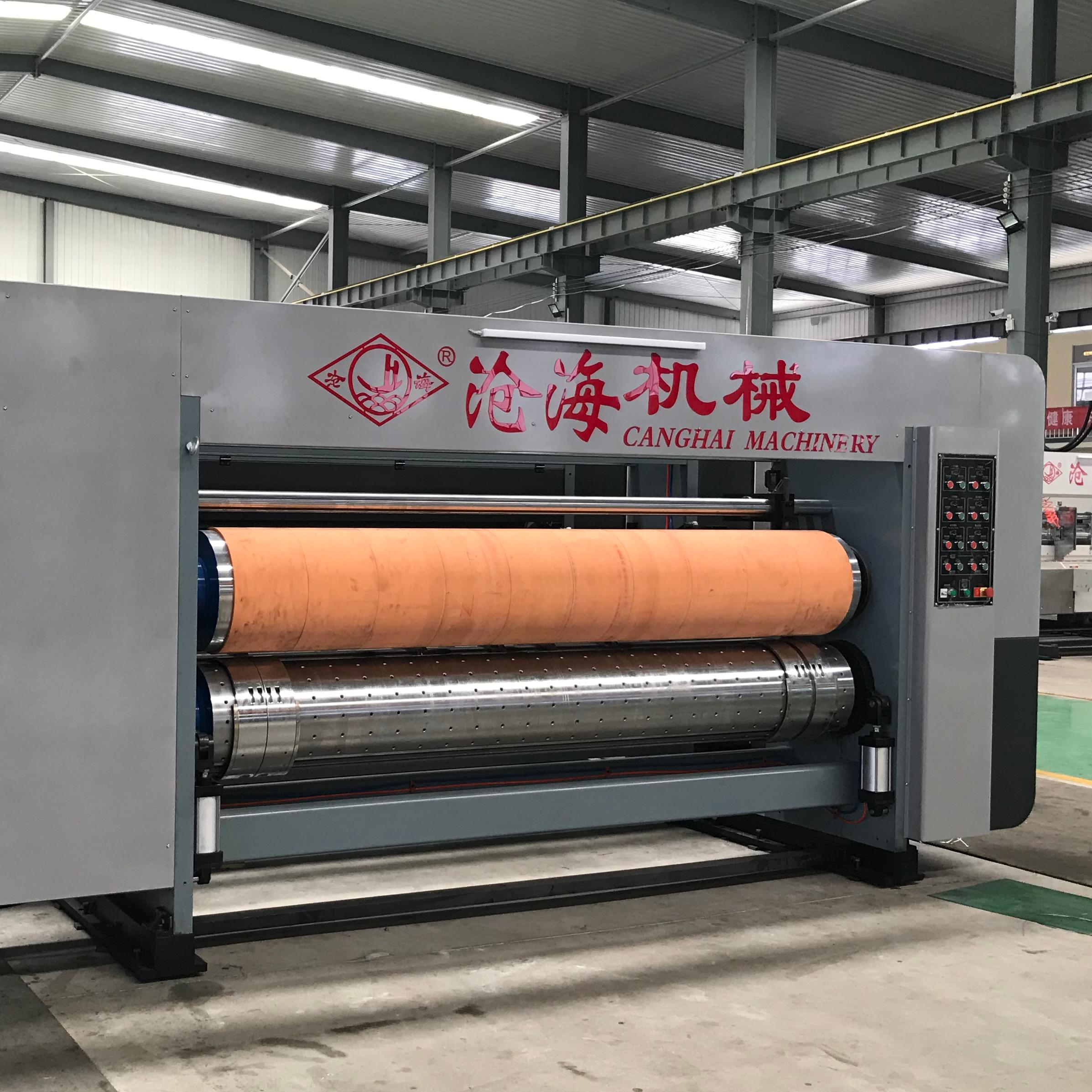

The printing machine (the 3th printing have per-creasing roller)
Scroll hanging version, unilateral locking, so that hanging version of the accurate, convenient, fast.
Plate hanging ditch, suitable for 10mm plate hanging bar.When loading and unloading the printing plate, the foot switch is electrically controlled to turn forward and backward.
5. Phase adjusting mechanism:
Electric planetary gear grinding, can achieve version roll circumferential 360 degree adjustment, digital display, intuitive and accurate.
The axial adjustment mechanism can make the plate roller adjust about 20mm.(unilateral 10 mm)
6. The pressure roller: Surface grinding hard chrome, balance correction, smooth operation..
Swing plate structure is adopted for clearance adjustment, with a range of 0-12mm.
7. Receive the paper department:
The lower feed roller 154mm, embossed hard chrome plated, 20# thick wall steel tube precision machining and static balance treatment.
The upper and lower roller clearances adopt the plate structure. The adjustment range is 0-12mm.
Die cutting unit
Die cut unit roller adopt high quality steel, plated with rigid chrome. high precision dynamic and static balance increase running stable.Mould roller and rubber roller can auto separate by cylinder eccentric device when the machine don’t die cut, this can lighten machine load and increase rubber roller and die knife life.Matching with feeding system, it with auto up and down device, the rubber roller will down when feeding paper. The rubber roller will up when stop feeding paper. To make sure every paper die cut correctly. Machine with rubber amend device, the rubber roller can be used after many times amend. Free die mould slotting unit, no need to make the die mould when making normal box, saving cost and improved efficiency. (optional )
