MODEL-1800 two sides semi automatic pressing machine/semi-auto carton box folder gluer/press pasting box machine1

3 year ago

29 0

DONGGUANG CANGHAI PACKING MACHINE CO.,LTD

 3 year year

Product details

Product Description

The semi-automatic pressure-bonding machine is newly developed according to the needs of small and medium-sized users. It is small in size and small in operation. It is easy to operate and requires no experience. It is very suitable for the production of small batch products and the replacement of varieties. It has a wide range of applications, ordinary carton and special color. The single-page molding of the box can be made into the bottom tray and the cover paper box after the automatic glue spraying device is installed; the glue is saved, the glue dosage is only 1/3 of the manual glue; the labor is manual, the maximum speed of the machine 56 m / min, the efficiency is 3-4 times of manual operation; the bonding is firm and neat, and the patented double-head sander can very well polish the adhesive part to remove the UV light film layer or the plastic film layer. To improve the adhesion of the glue, and to solve the problem that the carton factory is easy to open the glue in some seasons. Due to the manual folding, the machine is also suitable for products with incomplete creasing lines, special shapes and open windows on the paper while improving the work efficiency.

Gluing part.

Manual corrugated press carton packer folder gluer machine2

It is made of stainless steel for plastic barrels, never rusting and resistant to various glues. MuIti-type paste wheel
configuration can meet the needs of f different products.

Electrical part.

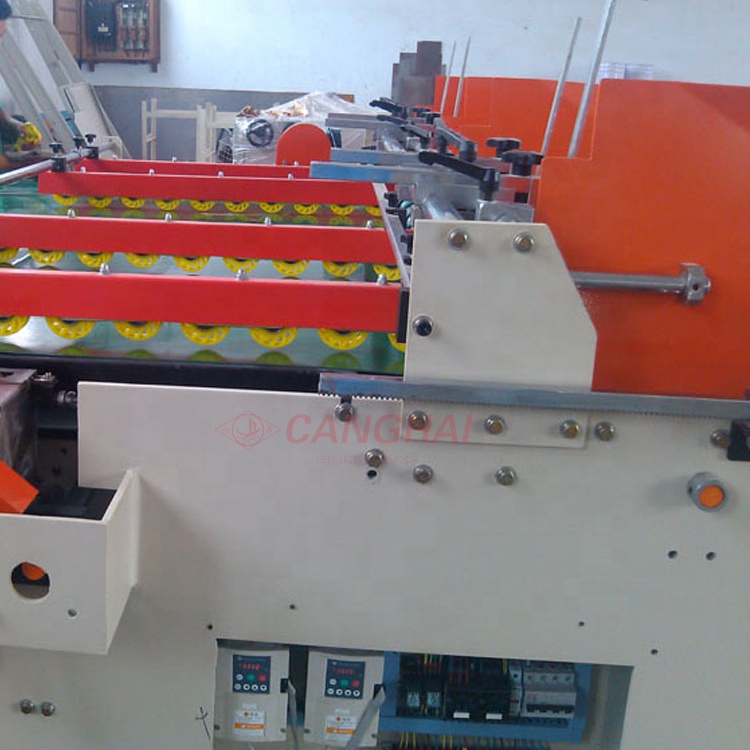

Semiautomatic box corrugated folder gluer machine3

It adopts double frequency converter control, and the paper feeding part and the pressing part are controlled separately.

Specification

item	value
Applicable Industries	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Showroom Location	Egypt, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Morocco, Argentina, Algeria, Romania, Bangladesh, Nigeria, Malaysia
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core Components	PLC, Gearbox, Motor
Condition	New
Automatic Grade	Semi-automatic
Usage	Paper Forming Machine
Place of Origin	China
	Hebei
Brand Name	CANGHAI
Weight	1300KG
Warranty	1 Year
Key Selling Points	Easy to Operate
Product name	folder gluer machine For Two-Pieces Joint carton box
Application	Packing Industry

Parameters
MODEL	JWY-1800	JWY-2200	JWY-2500
SOURCE-VOLTAGE	3-380VAC	3-380VAC	3-380VAC
HZ	50/60	50/60	50/60
POWER	3.2KW	3.2KW	3.2KW
CURRENT	7A	7A	7A
WEIGHT	1.3T	1.5T	1.7T
OVERALL SIZE	230025001300mm	230029001300mm	230031001300mm
MAX.SIZE OF BOX	1800*1100mm	2200*1100mm	2500*1100mm
MIN.SIZE OF BOX	200*260mm	200*260mm	200*260mm

Recommend Products

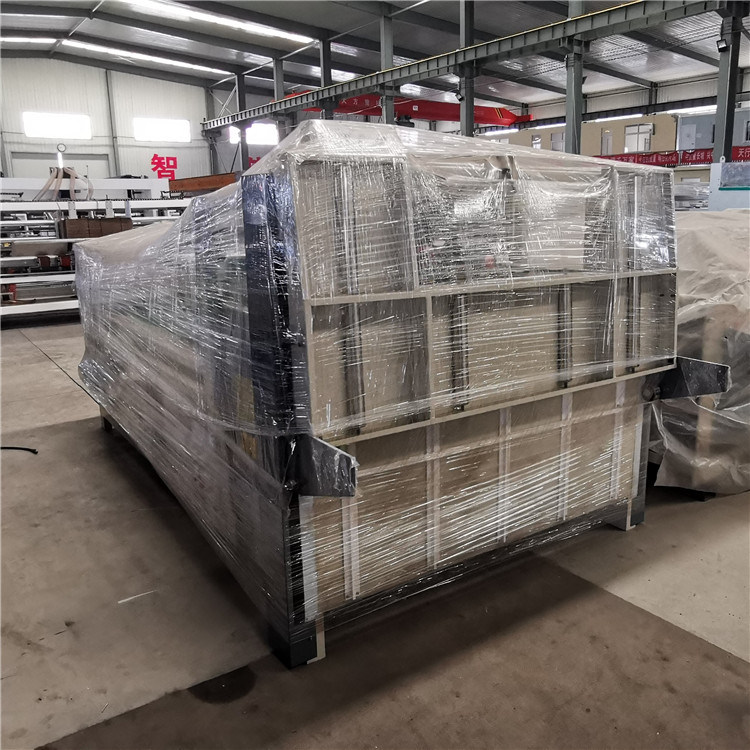

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Founded in 1999 Dongguang County Canghai Packing Machine Co., Ltd. located in the major carton machinery production area of Dongguang County in North China's Hebei Province, with the major cities of Jinan to the south, Tianjin to the north and Shijiazhuang to the west. With our 65,000 square meter factory beside the Jing-Hu Highway, Jing-Hu Railway and No. 104 National Road, we have convenient access to major transportation networks. With accumulated experience and rapid growth over the past 13years, we now boast sophisticated manufacturing equipment and a team of experienced managerial personnel. Producing low, middle and high-speed corrugated paperboard printing, pressing and slicing machines, our main units include pressure corner slicers, slitting machines, 3, 5 and 7-ply corrugated cardboard production lines, automatic and chained rotary die-cutters and rolling lines, single face corrugated cardboard machines, paper rolling lines, pasting machines, platform grinder slicers, stitching machines and other related products. Boasting over twenty branch offices and maintenance stations around China, we have also exported our various products to Australia, Mongolia, India, Egypt, Mexico and Vietnam. As an ISO9001 certified entity that has been commended as a "Brilliant Star", "Star Enterprise" and "Unit Trusted by Consumers", we have meanwhile been awarded "Quality Trusted Product" titles in many cities, counties and provinces in China. Adhering to the concept of "Honesty and Trustworthiness", we are striving to ensure that all customers receive high quality products and services. By shaking hands with us, both sides can go from one victory to another!

FAQ

1. who are we?
We are based in Hebei, China, start from 2004,sell to South Asia(33.00%),Southeast Asia(25.00%),South America(21.00%),Eastern Europe(21.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Making Machine, Automatic Flexo Printer Slotter Die Cutter Machine, Stitching Machine, Folder Gluer Machine, Printing slotting die cutting folding gluing strapping machine

4. why should you buy from us not from other suppliers?
We have a strongtechnical team of technicians,all technicians are trained in special training in assessment of the structure of the packaging printing machinery,repair and maintenance have a deep grasp.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Russian
