automatic feeding thin blade slitter scorer for carton box1

automatic feeding thin blade slitter scorer for carton box1

2 year ago

9 0

DONGGUANG CANGHAI PACKING MACHINE CO.,LTD

 2 year year

Product details

Corrugated box making slitter scorer thin blade line

Product Description

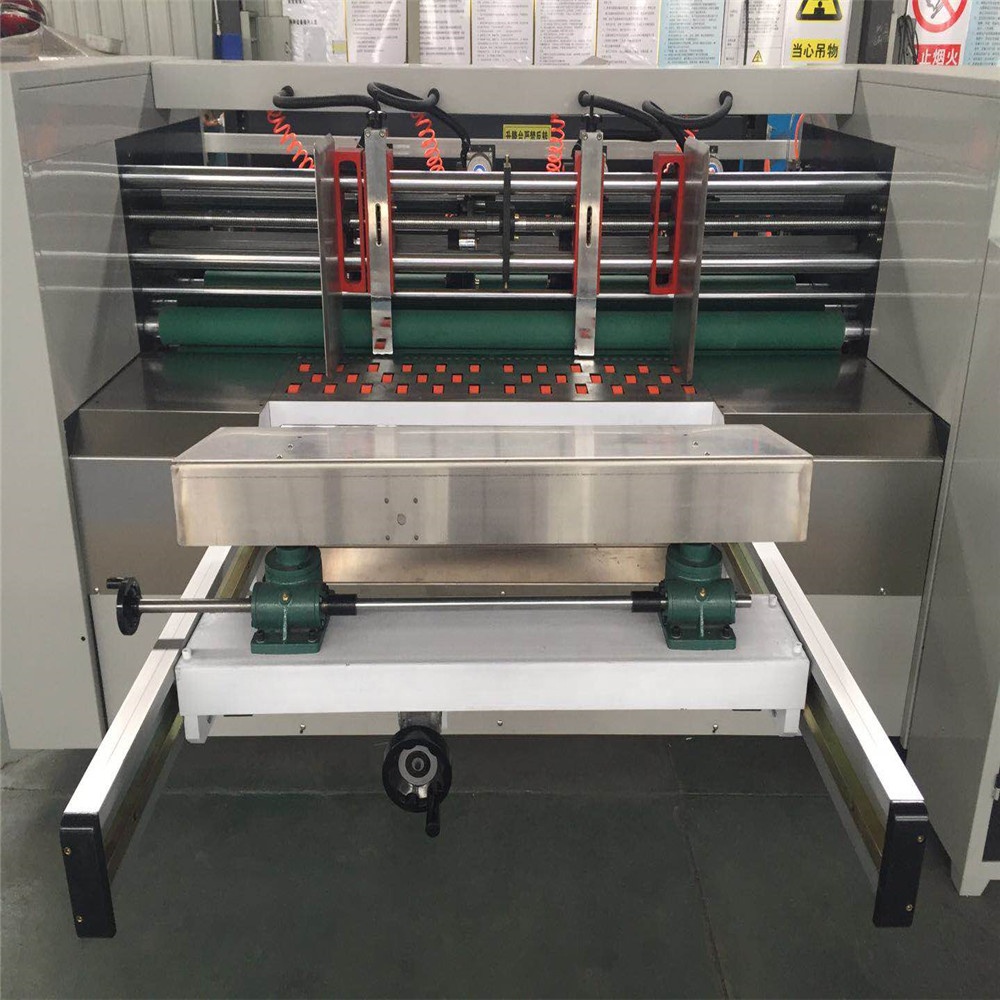

Auto thin blade and slitter score machine for carton produce4

Auto thin blade and slitter score machine for carton produce3

Pre-pressing paper feeding type, smoothly;

Thin knife slitting, thickness of the blade: 1mm;
Grind the blade edge with grindstone in two methods: automatically or manually;
Sharp blade edge can slit the cardboard smoothly and neat.
Work process: Pre-pressing, slitting and creasing. Creasing line without crack
The machine can be provided to corrugated paperboard production line.

Parameter	Unit	Model
		BFY-2000
Feeding width	mm	2000
Max. speed	m/min	150
Slitting blade	piece	3-5
Min. Separate slitting width	mm	200
Min. creasing width	mm	200
External diameter of thin & round blade	mm	260
Thickness of thin & round blade	mm	1
Power	kw	4
Weight of machine	kg	2000
Exterior dimension	mm	2630x1791x1130

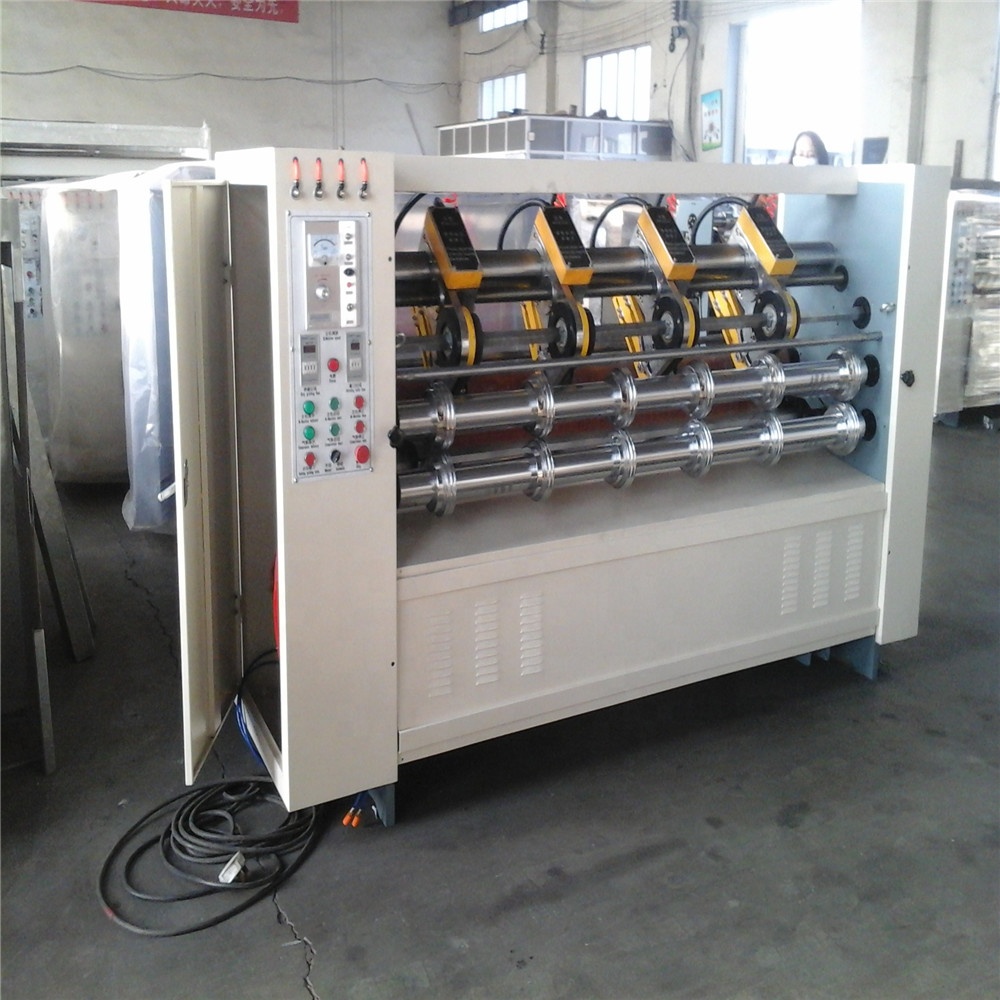

Automatic corrugated box making thin blade slitter scorer machine2

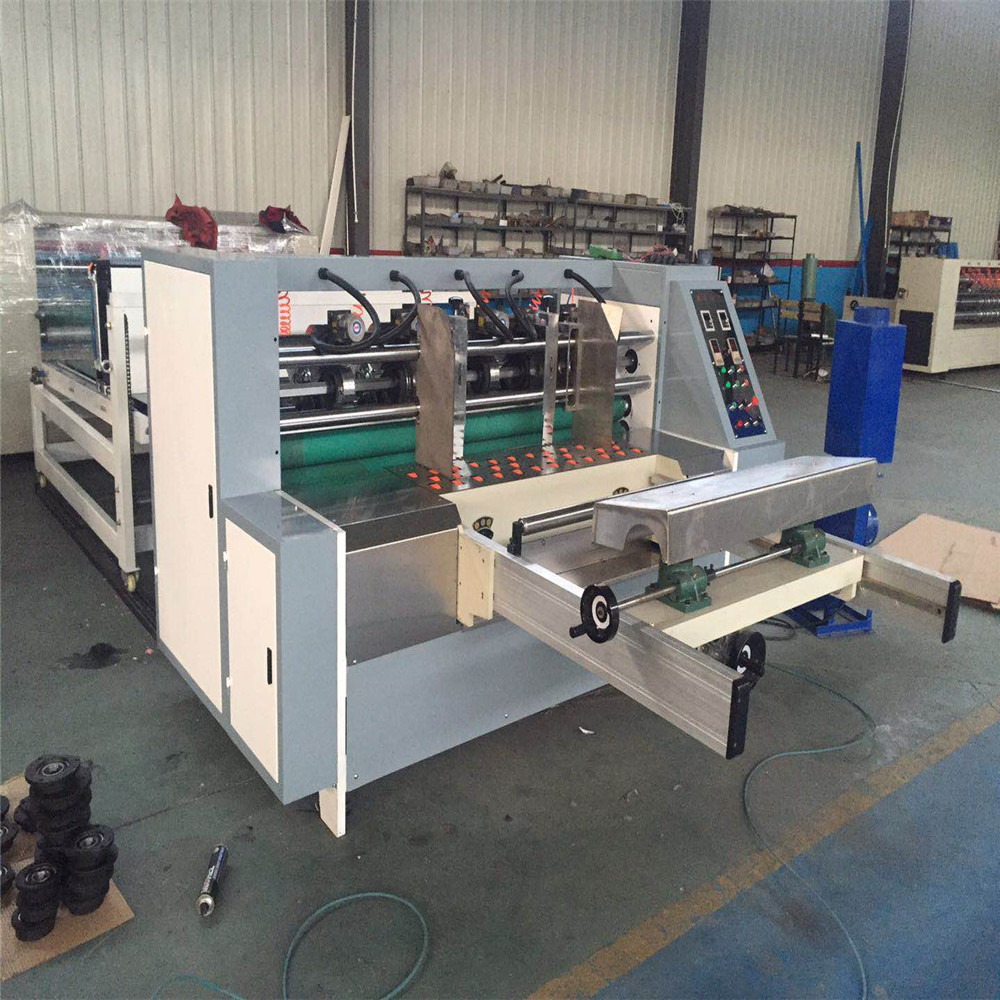

Automatic cardboard thin blade slitter scorer creaser machine4

Our company set up in 1993, has more than 20 years of history, the workers with rich machine production experience,could produce printing slotting die cutting machine,rotary die cutting machine,stitching machine,gluing machine,single ply cardboard production line, and multi-ply cardboard production line and the other corrugated carton machine.

We have strong foreign sell team which sell our machine to many countries,such as Thailand,Indonesia,India,America,Canada,Peru and the other country of the world.And we can supply oversea service for machine that export.

Packaging & Shipping

lead edge corrugated carton paper thin blade slitting and creasing machine /automatic feeder carton box making machine
