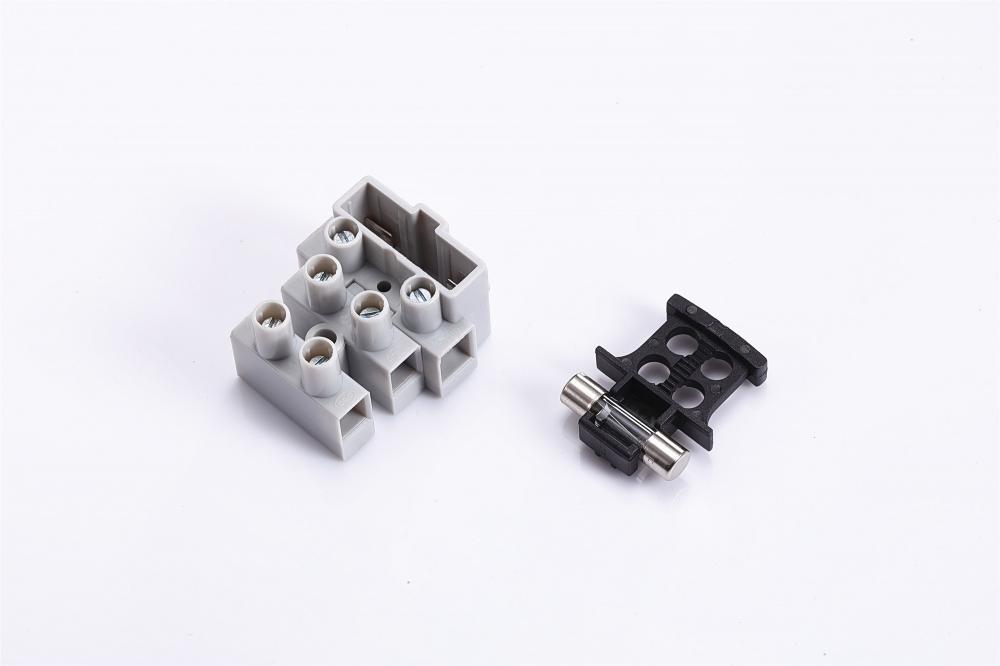

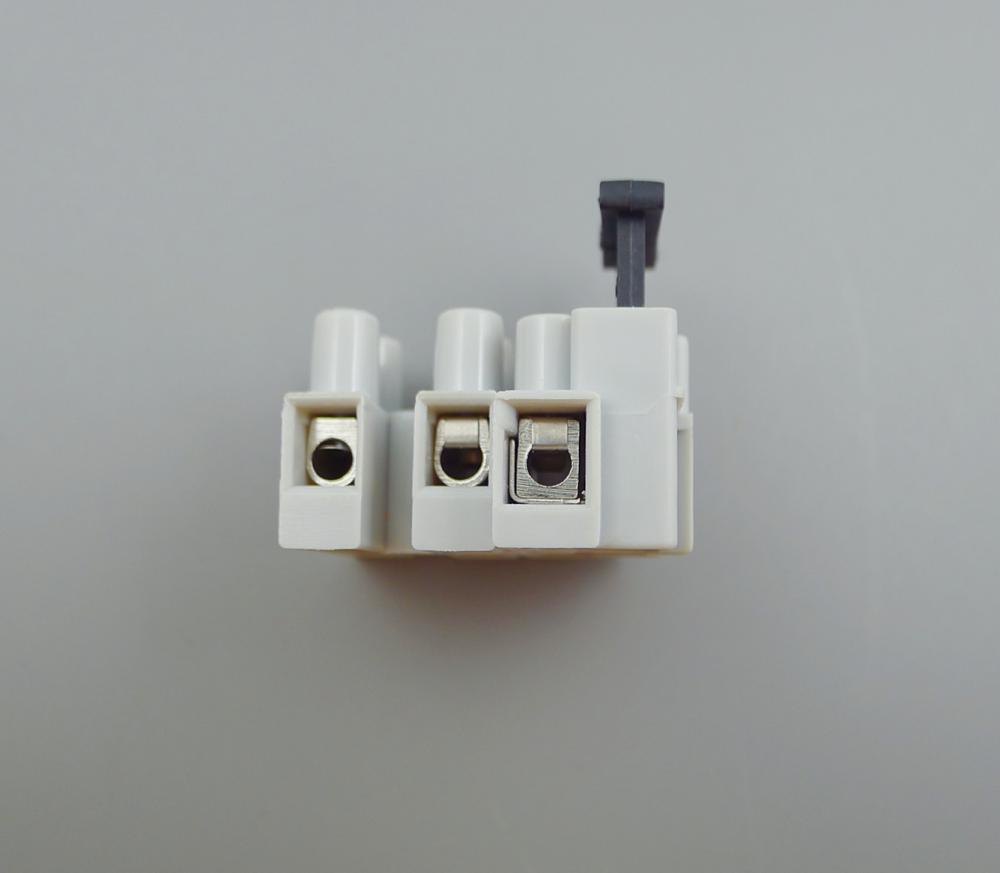

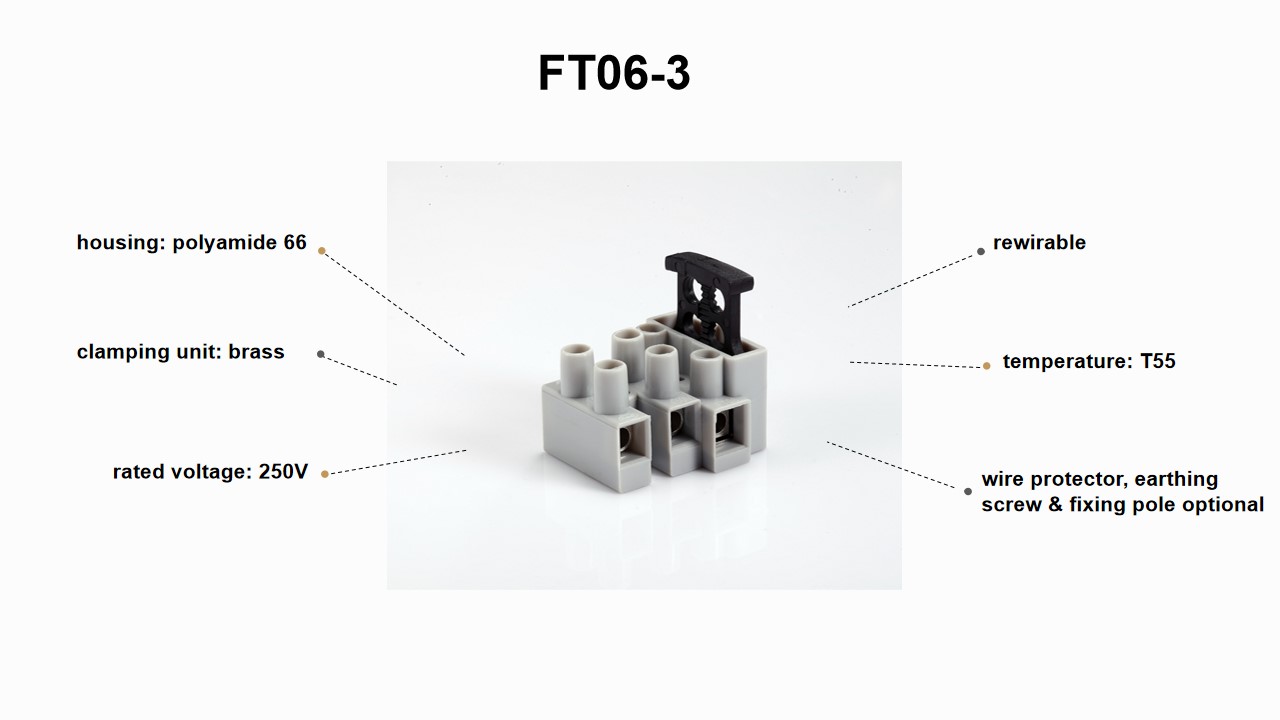

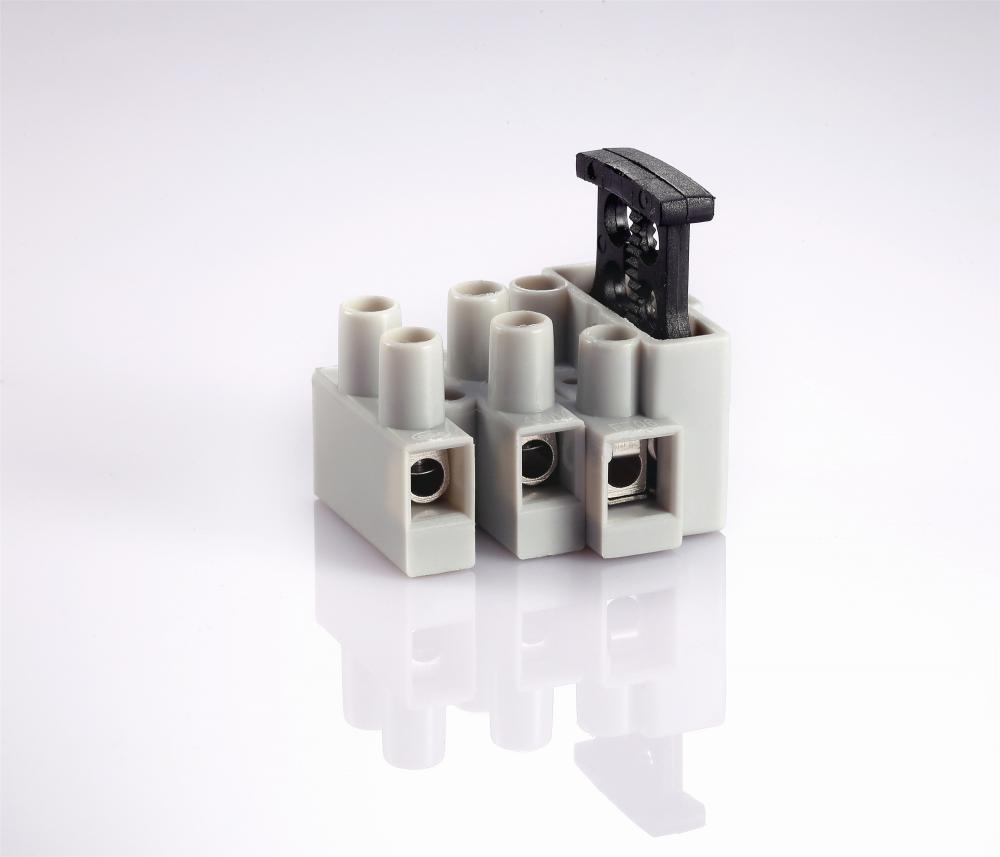

The BELEKS FT06 series fuse terminal, specifically the 3 pole fuse screw terminal, is a high-quality barrier terminal connector designed for various wiring applications. It features a robust and durable construction, using Polyamide 66 (V2) for the housing and brass for the clamping unit, ensuring reliability and longevity. The 3-pole design allows for multiple connections, increasing versatility and convenience. The screw termination ensures a secure and stable connection, reducing the risk of loose connections or failures. In addition, the fuse connector is equipped with insulation and injection molding production processes, ensuring safety and efficiency. Widely used in electrical wiring, lighting and other electrical systems, it provides a reliable and cost-effective solution for electrical connections. With its easy installation and maintenance, the BELEKS FT06 series fuse lighting connector is an excellent choice for professionals in the electrical industry.
Specifications
| Item No. | FT06-3/83(A) FT06-3G/83(A) | ||
| Electrical Data | |||
| IEC/EN | |||
| Fuse Holder | Terminal | ||
| Rated Voltage (V) | 250 | 450 | |
| Rated Current (A) | 6.3 | 15 | |
| Ambient Temperature | Polyamide 66 | 105℃ | |
| Connection Data | |||
| IEC/EN | |||
| Cross Section | Solid conductor | 2.5-4.0mm² | |
| Stranded conductor | 2.5-4.0mm² | ||
| Flexible conductor | 2.5-4.0mm² | ||
| Strip length (mm) | 7 | ||
| Means of connection | screw fixed | ||
| Screw | M3 | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 3 | ||
| Means of Fixing | |||
| screw fixed | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Clamping Unit | brass | ||
| Compatible Products | |||
| Fuse | 5*20mm fuse | ||
| Packing Quantity (pcs/carton) | |||
| 500 | |||

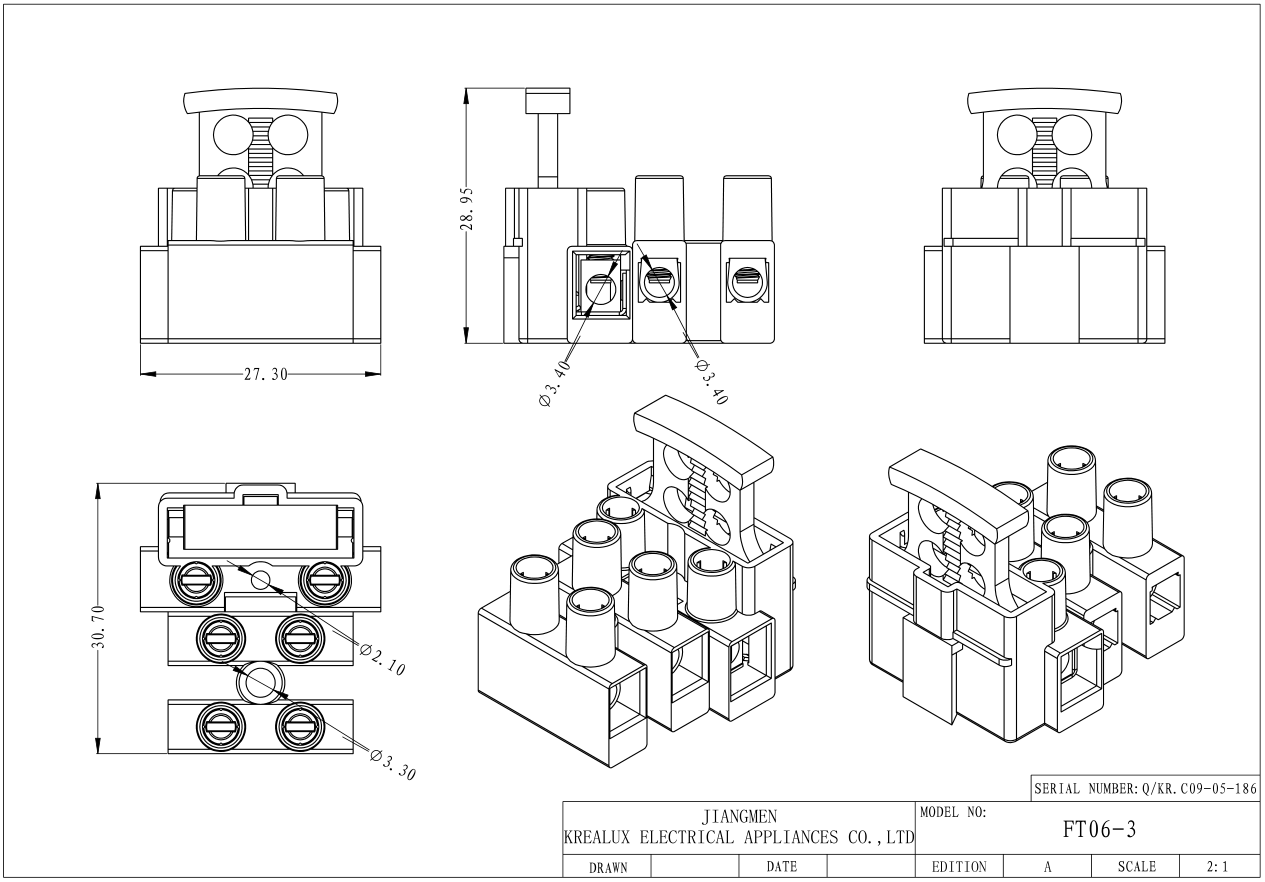

Drawing
