QY25K5D25 Ton Mobile Truck Crane Benefits:
1. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
2. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
3. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
|
Description |
Unit |
Parameter value |
|
Max. rated total lifting capacity |
Ton |
25 |
|
Max. lifting moment |
KN.m |
1061 |
|
Base boom Length |
m |
10.9 |
|
Fully-extended boom |
|
41.5 |
|
Fully-extended boom+ Jib |
|
48.5 |
|
Overall dimensions (L×W×H) |
mm |
12680×2500×3380 |
|
Engine rated power |
kw/(r/min) |
213/2200 |
|
Engine rated torque |
N.m/(r/min) |
1250/1200-1600 |
|
Max. driving speed |
km/h |
85 |
|
Max. gradeability |
% |
42 |
|
Min. Turning diameter |
m |
21.5 |
|
Min. ground clearance |
mm |
250 |
|
Complete vehicle kerb mass |
kg |
32200 |
|
Outrigger span(Longitudinal/Transversal) |
m |
5.5×6.4 |
|
Oil consumption per hundred kilometers |
L |
40 |

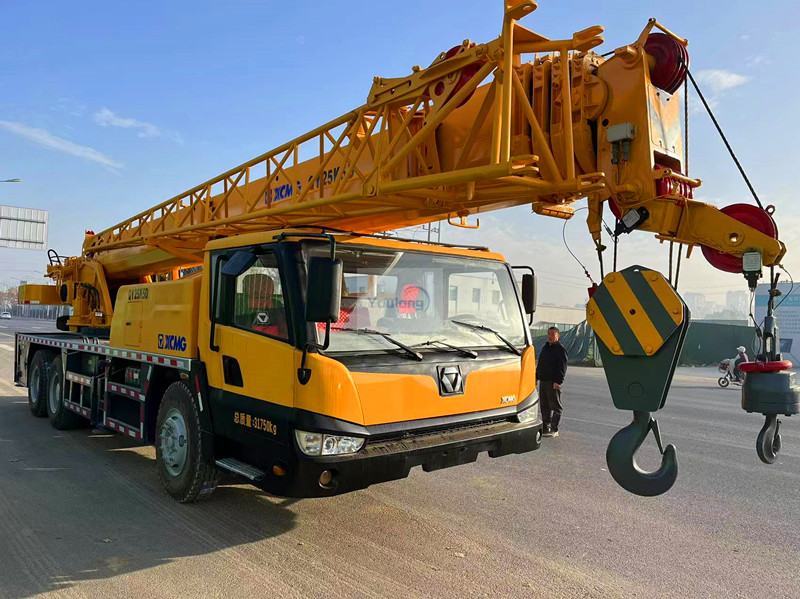

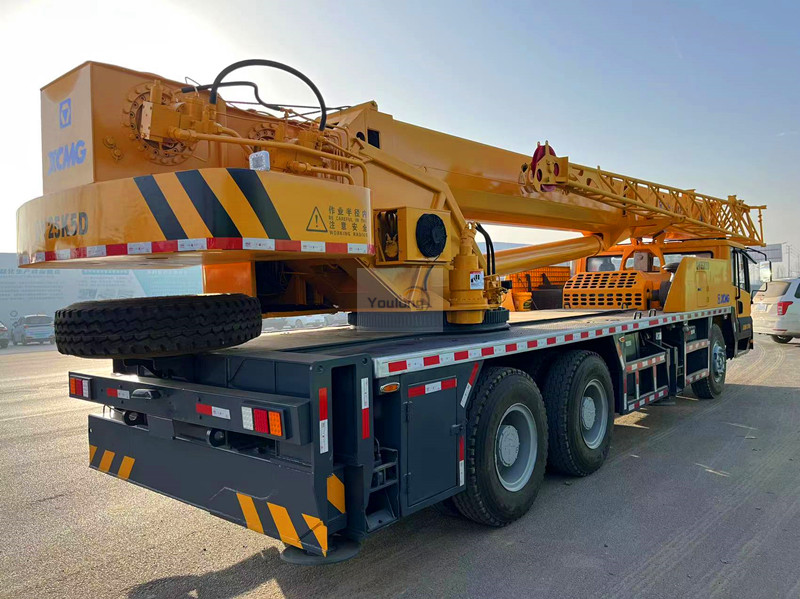

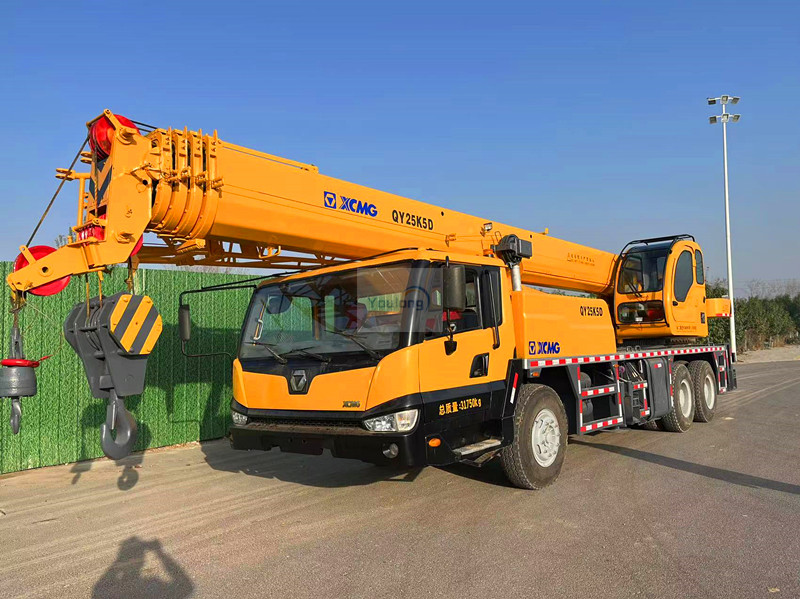

3.Details Images
Q1. Why choose us ?
1.Competitive price: our company is a professional supplier of export series machines, and we have competitive prices and best resources in second-hand construction machinery and spare parts.
2.Fast delivery: the delivery time of all our machines is very fast, especially the popular models. We always have inventory,suchas truck crane QY25k-II, QY50KA, QY70k-I,STC300H,STC500s, Ztc550V etc.
3.Warranty: after sales service is very important for construction machinery. Our company provides warranty for all machinery purchased from us. During the warranty period, we will accurately confirm the damaged parts in theshortest time and send the replacement parts to the customers by DHL or air freight in the most efficient way.
Q2. How can you guaranteed quality?
The warranty policy does not cover the covering parts and wearing parts. For the engine, gearbox, hydraulic pump, distributor valve, and electric system, the warranty period will be 3 months or 500 working hours . If there is any problem within the warranty period, Youlong construction machinery will provide solutions accordingly.
Q3. Can you satisfy my special requirement?
As the manufacturer, Youlong construction machinery will review the special requirement and recondition it as per request (if possible).
Q4.How about your technology after-service team available?
We have postgraduated engineer and repair machines team,and worked inconstructions machine area almost 20 years.we could give you service support on line on time,or send to Machinican to support on necessary.
