Product details

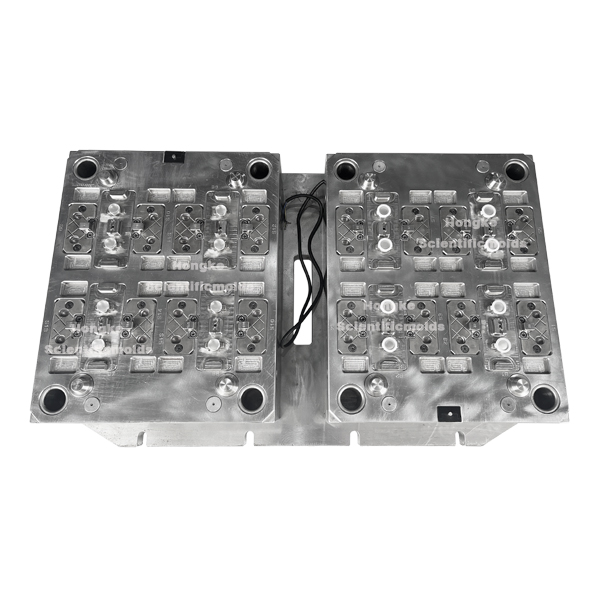

The mold shown is a high-cavity precision automotive electronic accessories plastic injection mold, engineered specifically for the mass production of small. Its symmetrical multi-cavity layout, with numerous identical impressions, is designed for maximum productivity, allowing dozens of parts to be molded in a single cycle with exact dimensional consistency. The cavities are precisely machined with micron-level accuracy to ensure each molded part meets strict tolerances, a necessity for components that require perfect fit and functionality in end assemblies. This type of mold also integrates an advanced cooling system, with channels carefully distributed to achieve uniform temperature control across all cavities, thereby preventing warpage and shrinkage variation.

The black wires visible in the design are part of embedded heating or temperature monitoring systems, ensuring stable processing conditions even during high-speed cycles. Manufacturing such a mold requires not only high-grade hardened tool steel for extended wear resistance, but also exceptional surface finishing to produce smooth cavity walls that reduce demolding resistance and maintain the cosmetic quality of the parts. The engineering challenge is intensified by the need to maintain exact parallelism and alignment between the two halves over repeated high-pressure cycles, ensuring consistent part quality over millions of shots. The mold is made of high-quality mold insert steel S136 and the hardness of the steel reaches HRC48-52, the life of the mold can exceed 500,000 shots or more when the mold is well maintained. Our company is very experienced in Aircraft Plastic Mold, car part mold, unscrewing injection mould.

Mould Name: High-cavity Automotive Electronic Accessories Injection Mold

Mould Insert Steel: S136

Runner: Hot Runner
