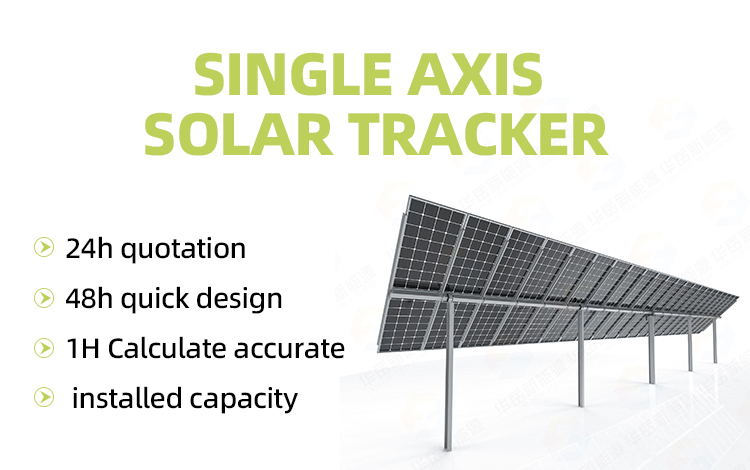

Single Axis Solar Tracker system

2 year ago

33 0

Hebei Jinbiao Construction Materials Tech Corp., Ltd.

 2 year year

Product details

The installation of single-axis solar tracking mounts is a technically demanding task in photovoltaic power plant construction. Compared to fixed mounts, it can significantly increase power generation (typically by 15%-25%, depending on geographical location and climate), but the installation process is more complex, requiring greater precision and professional expertise.

The installation of single-axis solar tracking mounts constitutes a systematic engineering project involving multiple specialized fields including civil engineering, mechanical, electrical, and control systems. Its core requirements focus on:

Precision: Every phase of construction from foundation work demands high-precision execution.

Reliability: Installation quality of critical components - including drive units, bearings, cable management, and wind resistance protection - directly determines the system's long-term reliability and power generation revenue.

Professionalism: Installation must be performed by trained professional teams strictly adhering to suppliers' installation manuals and technical specifications.

Single axis tracking Control system parameters
Tracking mode	Astronomical algorithm+inclination feedback
Tracking range	±45～60°	Tracking accuracy	＜1°
Supply electricity	AC 110/240V(optional DC 24)	Drive type	Rotary drive/linear drive
Driving power	＜200W	Drive motor	DC 24
Working wind speed	38mph（17m/s）	F2F mode	Bluetooth / manual
Intelligent tracking mode	support	UPS power supply	Optional
Intelligent gale protection mode	support	Self cleaning mode in rainy days	Optional
Anti shadow tracking mode	support	Heavy snow mode	Optional
Night return mode	support	Rainy day mode	Optional
GPS	support	Remote monitoring mode	Optional
Communication mode	Wired / wireless	protection grades	IP 65
communication agreement	Modbus	Working temperature	﹣20～60°（﹣30～70°）

1.What is the optimal angle for roof single axis solar tracking system?

Single axis solar tracking system has a maximum angle of 90 degrees.

2.What is the post distance of the single axis solar tracking system? How many photovoltaic panels can be installed on it? And what is the area of one system takes?

The single axis solar tracking system should be measured according to the latitude and longitude of the sun, you can provide me the project location, then I can give you a plan within 24 hours.

3. How to measure the array spacing of single axis solar tracking system?

According to the latitude and longitude of the sun, the shadow blocking in different regions is different.

4.What is the differences between single axis solar tracking system and solar mounting system, can you compare them from price and power generation?

The price of single axis solar tracking system is 10-20% higher than solar mounting system, power generation is 20% higher than solar mounting system.

5.How long is the warranty period of the rotary motor? How long is the service life? What brands do you have?

The structure of the tracking bracket is guaranteed for 10 years, the electrical appliances are guaranteed for 3 years, and the service life is 25 years. The rotary motor are supplied by our long-term cooperative suppliers, and they are all first-tier brands in China. Introducing our cutting-edge Solar Mounting System, designed to maximize energy production and efficiency. Our company, SolarMount, specializes in providing high-quality solar racking systems solutions for commercial, residential, and industrial applications. Our innovative products are engineered to withstand even the harshest weather conditions, providing a long-lasting, reliable foundation for your solar panels.Solar Tracking System, Solar Mounting System，Solar Panel.
