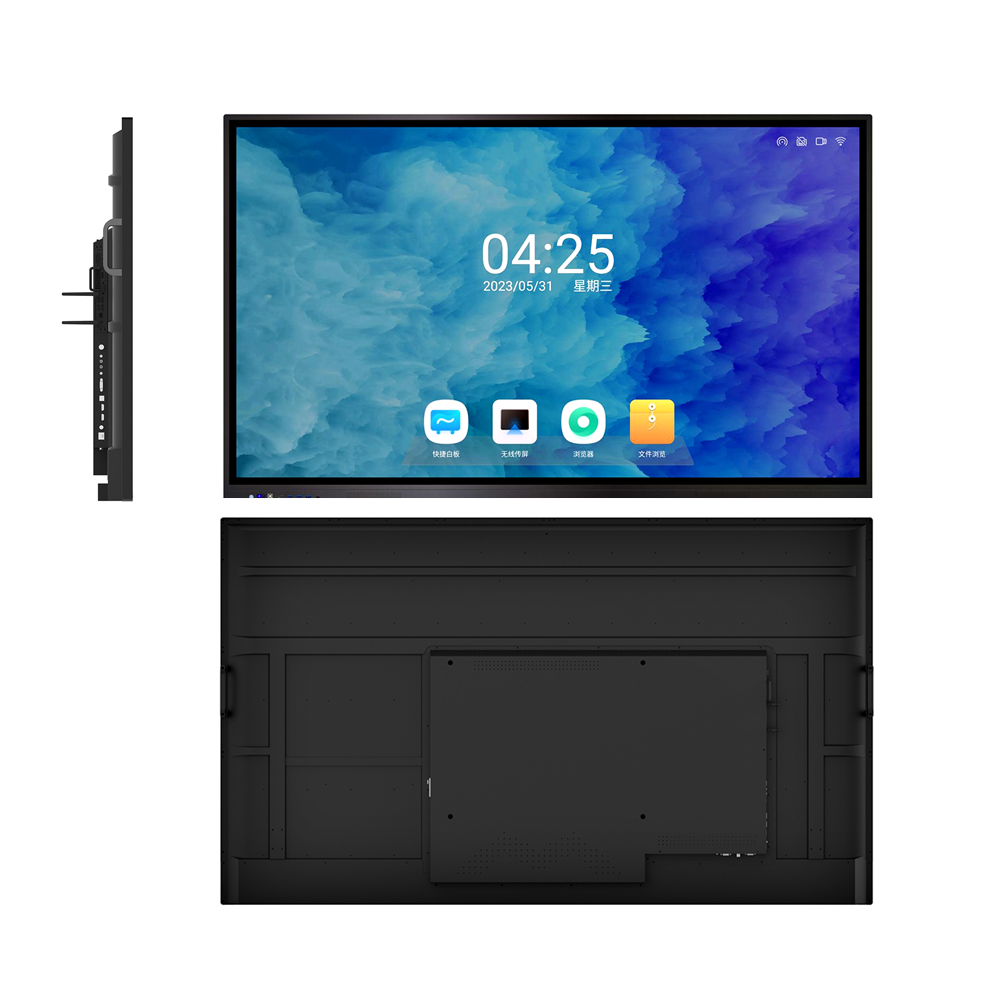

55-inch conference all-in-one machine

13 month ago

22 0

Jiangsu Qilong Electronic Technology Co., Ltd.

 2 year year

Product details

Product Description and Copyright Statement

The company reserves the right of final interpretation of all information in this document. Product images are for reference only. Any form of reproduction or reprinting is prohibited without authorization. The parameter data in the document only covers the series standard models. The specific configuration is subject to the contract signed with the sales staff.

Core Product Features

1. Intelligent System Core

(1) Android 11.0 Professional Education System

Equipped with native Android 11.0 intelligent system, customized 4K ultra-high-definition UI interface - from the main menu to the application icon, it uses 3840×2160 resolution rendering to present a delicate visual experience like real blackboard writing, adapting to the high-precision display requirements of educational scenarios.

(2) Powerful 64-bit processor architecture

Adopting a quad-core ARM Cortex-A55 high-performance chip, the main frequency has a dynamic adjustment range of 1.5GHz-1.92GHz, and supports multi-task parallel processing: when running courseware demonstrations, video playback and multi-person touch annotations at the same time, it still maintains smooth response to meet the high-density interaction needs of the classroom.

2. Industrial design and touch interaction

[Minimalist aesthetics × precision craftsmanship]

14mm ultra-narrow optical frame: Made of black matte metal, the screen-to-body ratio is increased to 92%, suitable for multiple classroom installation scenarios, visually weakening the presence of the device and focusing on the teaching content itself.

Front detachable infrared touch frame: Touch accuracy reaches ±1mm, sensing height ≤1mm, supports 20 points of simultaneous touch - teachers and students can write, drag, zoom and other operations simultaneously, and with the low-friction glass panel, a smooth writing experience like paper and pen is achieved.

[Extended functions and security design]

(1) Dual system expansion interface: Built-in standard OPS interface, supports seamless access to Windows system modules, builds an Android + Windows dual system collaborative environment, and is compatible with different educational software ecosystems.

(2) Cross-system USB sharing: The front USB interface supports two-way data communication between computers and Android systems. Peripherals such as USB flash drives and styluses can be shared without switching devices, improving classroom operation efficiency.

(3) Network cable aggregation (optional): A single network cable is used to achieve synchronous networking of the Android system and the OPS host, simplifying classroom wiring and adapting to the network requirements of multimedia teaching environments.

(4) Multi-theme interface switching: Supports scenario-based theme switching such as teaching mode and conference mode, and the interface layout is intelligently adjusted according to the usage scenario; when an external USB device is connected, permission authentication is automatically triggered, and access is required with a password unlock to ensure the security of teaching files.

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board，etc.

Main specification parameters

1. Overview of specifications

Faceplate	Screen size	55"
	Backlit type	D-LED
	Resolution ratio	3840*2160
	Luminance	≥350cd/m²
	Screen contrast	5500:1
	Response time	6ms
	Pixel point distance	0.315×0.315 mm (H×V)
	Frame frequency	60 Hz
	Angle of view	178°(H) / 178°(V)
	Color saturation (x% NTSC)	72 %
	Visual area	1209.6×680.4 mm (H×V)
	Color degree	1.07B(8bit)
	Life span	30,000 hrs
Programmatic	Slug	T982
System Properties	System version	Android 11.0
	CPU	Quad-core ARM Cortex-A55
	GPU	Mali-G52 MP2(2EE)
	Internal cache capacity (RAM)	4 GB DDR4
	Internal Storage Capacity (ROM)	32 GB Standard
Power parameters	Voltage	100 V ~ 240 V/AC, 50/60 Hz
	Maximum power (without OPS)	≦96W
	OPS source	19V(DC)/5A
Power parameters	Standby power consumption	<0.5W
Power parameters	Power supply (AC) input	*1
Structure	Net weight	33Kg±1.5Kg
	Rough weight	40Kg±1.5Kg (Heavy-duty carton)
	Bare machine size (length * width * thick)	1273.4mm773mm92.4mm
	Packaging size (length * width * height)	1395mm * 901mm * 190mm (heavy duty carton)
	VESA hole site	4-M8 screw hole 400mmx400mm
	Housing Material (face frame / rear housing)	Aluminum profile / sheet metal
	Shell color (face frame / rear shell)	Black (upper / lower silver / all silver optional)
Front interface	Switch button * 1	(Light sense optional)
	USB(Shared) * 3	Standard USB Type-A interface
	Type-c USB*1	Standard USB3.0 Type-C interface
	HDMI IN*1	Standard HDMI Type-A interface, and the HDMI input is displayed
	TOUCH_OUT*1	Standard USB2.0 Type-B interface
Touch parameters	Touch specifications	Infrared touch box
	Glass specifications	General Glass / anti-glare toughened glass is available
	Response speed	≤6ms
	Touch accuracy	The accuracy of 90% center area is ± 1mm, and 10% edge area is ± 3mm
Touch parameters	Touch diameter	≥3mm
	Input mode	Finger or special pen
	Number of theoretical clicks	Infinite times
Interface type	The USB 2.0 is at full speed
Operating voltage	4.75～5.25V
Power wastage	≤2 W
