All solid state single longitudinal mode Yellow Laser at 589nm is made features of ultra compact, long lifetime, low cost and easy operating,stable and adjustable output power .Solid state yellow laser consists of a standard semiconductor diode laser which is used to optically pump into a small crystal of lasing material to generate a fundamental frequency. Dual Yellow Laser is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc and Optical Fiber Cable.
SPECIFICATIONS:
Model
MSL-FN-589
MSL-W-589
Wavelength (nm)
589±1
Operating mode
CW
Output power (mW)
>1, 5, 10, 20, - , 200
>200,-, 500
Power stability (rms, over 4 hours)
<2%, <3%, <5%
<3%, <5%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Coherent length (m)
>50
Noise of amplitude (rms, 1Hz~20MHz)
<1%, typical<0.5%
<1%
M2 factor
<1.2
<1.5
Beam diameter at the aperture (1/e2
, mm)
<2.5
<3.0
Beam divergence, full angle (mrad)
<1.2
<1.5
Polarization ratio
>100:1, Horizontal±5 degree (Vertical Optional)
>100:1
Pointing stability after warm-up (mrad)
<0.05
Warm-up time (minutes)
<10
Beam height from base plate (mm)
27.4
58
Operating temperature (℃)
15-35
20-25
Power supply (90-264VAC)
PSU-H-FDA
PSU-W-FDA
Expected lifetime (hours)
10000
Warranty
1 year
Related Products
457 nm laser
Blue Laser
Neuroscience laser
639 nm Laser
671 nm laser
792nm high power laser
880nm high power laser
915nm high power laser
976nm high power laser
1053nm laser
Dimensions
|

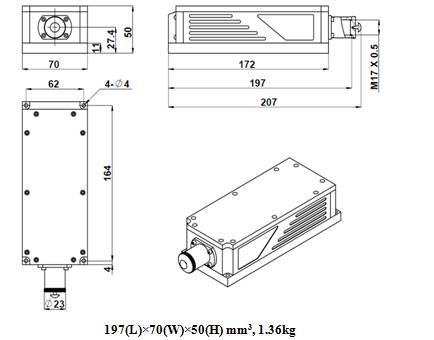

MSL-FN-589 |

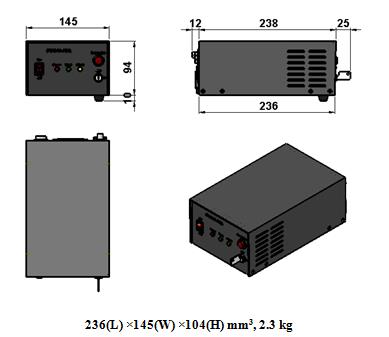

PSU-H-FDA |
|
|
|
|

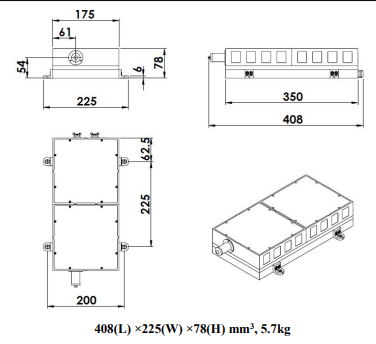

MSL-W-589 |

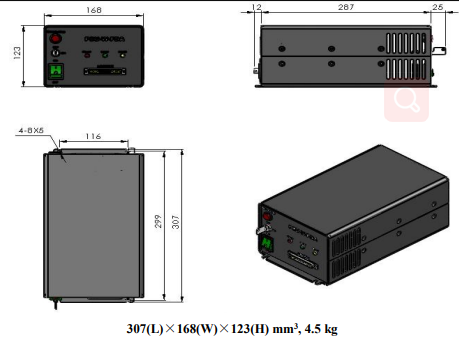

PSU-W-FDA |

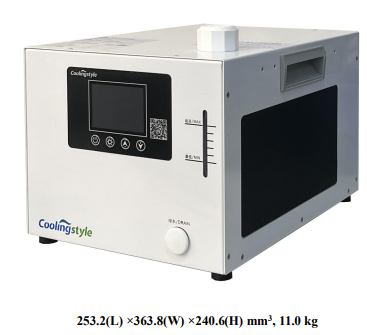

Water Chiller |
|
|
 |
 |
Certification
Copmpany Information
Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, good performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
