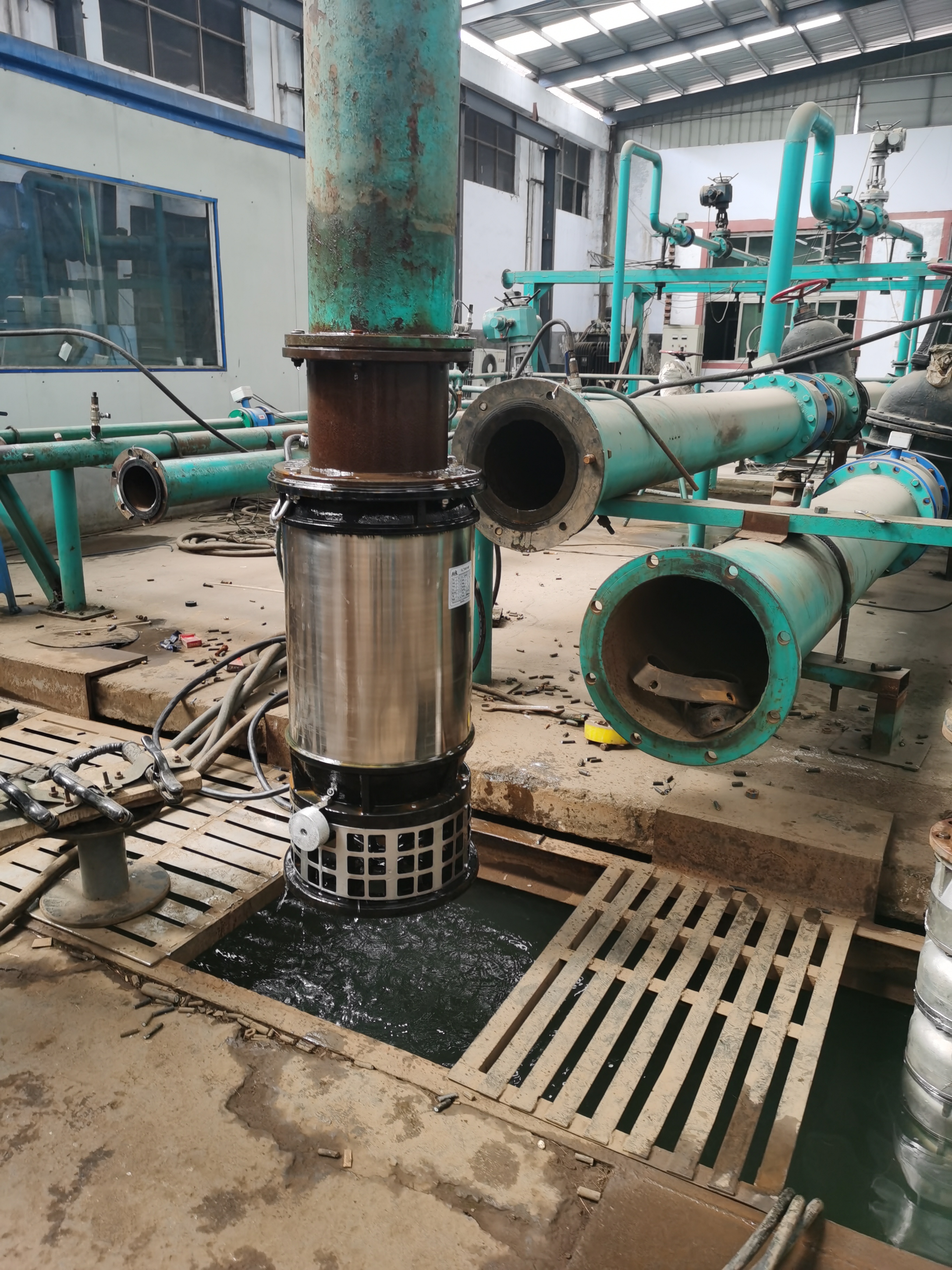

WLT series large flow drainage pump
l Strong pump structure, dry motor, double group mechanical seal, good waterproof, impeller diversion device, smooth water flow, long-term operation and use, pump waterproof grade meets IP68;
l Centrifugal, axial flow, oblique flow impeller design, low head, large flow, low energy consumption in line with economic benefits
l Impeller bronze material, is an excellent grade of copper material, both seawater corrosion resistance and wear resistance, sand wear least.
Application:
l Aquaculture fisheries, agricultural irrigation, drainage of low-lying areas
l Sewage treatment project, landscape waterfall water
l Best equipment for hydraulic engineering
l Large water supply and drainage for other purposes
Main Specification:
|
Medium |
Temperature |
0～40℃ |
|
|
Medium |
Agricultural irrigation, aquaculture water, river water. |
||
|
Maximum depth in use |
30m |
||
|
Pump |
Structure |
Impeller |
3HP、5HP：Centrifugal type；7.5HP、10HP：axial-flow type;15HP、20HP：Inclined flow |
|
Seal |
· Double group mechanical seal |
||
|
Bearing |
Deep groove ball bearing |
||
|
Material |
outer cover |
Stainless steel |
|
|
On the inside cover |
Cast iron |
||
|
Housing |
Cast iron |
||
|
Impeller |
bronze |
||
|
sealed chamber |
Cast iron |
||
|
bearing pedestal |
Cast iron |
||
|
Motor |
Type |
Dry submersible |
|
|
Pole |
4P |
||
|
insulation |
F |
||
|
frequency |
50HZ |
||
|
Material |
Motor case |
Stainless steel |
|
|
Cable |
H07RN-F |
||
If you are interested in the product, contact 2bvideo.com for more information for more information
