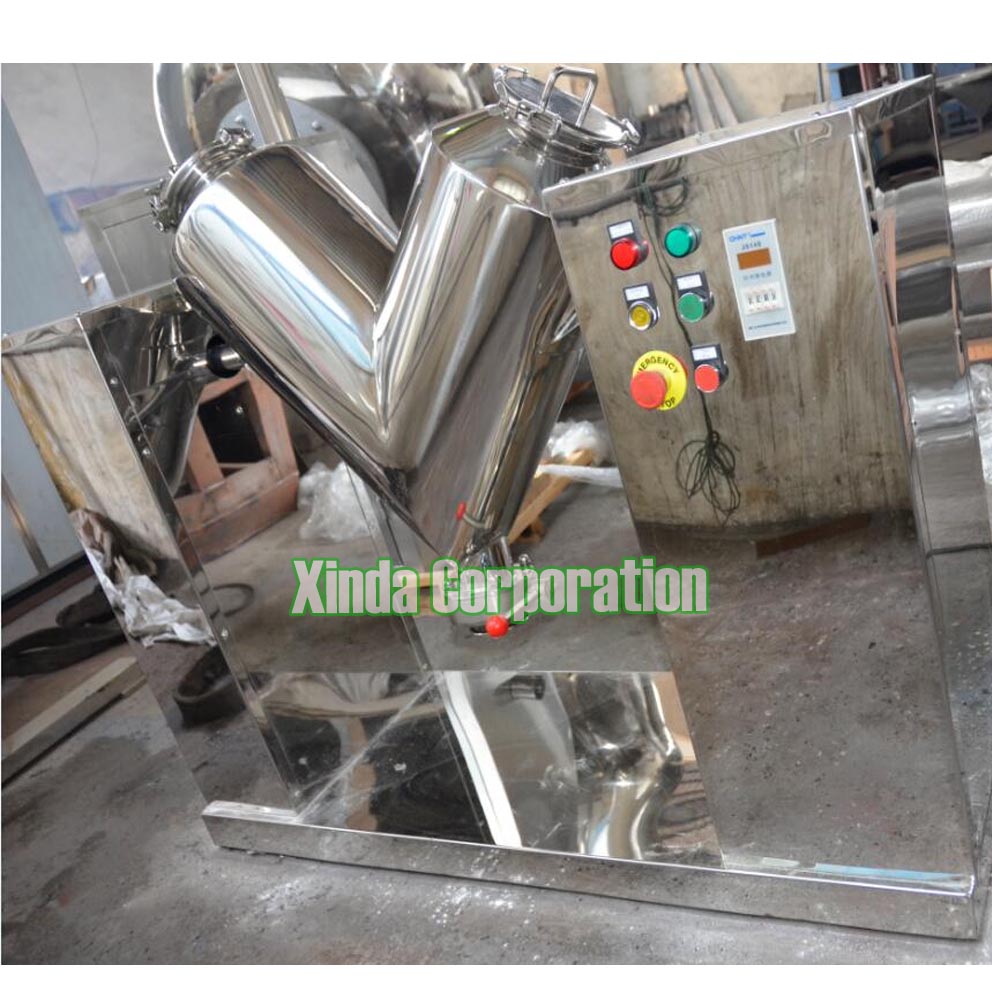

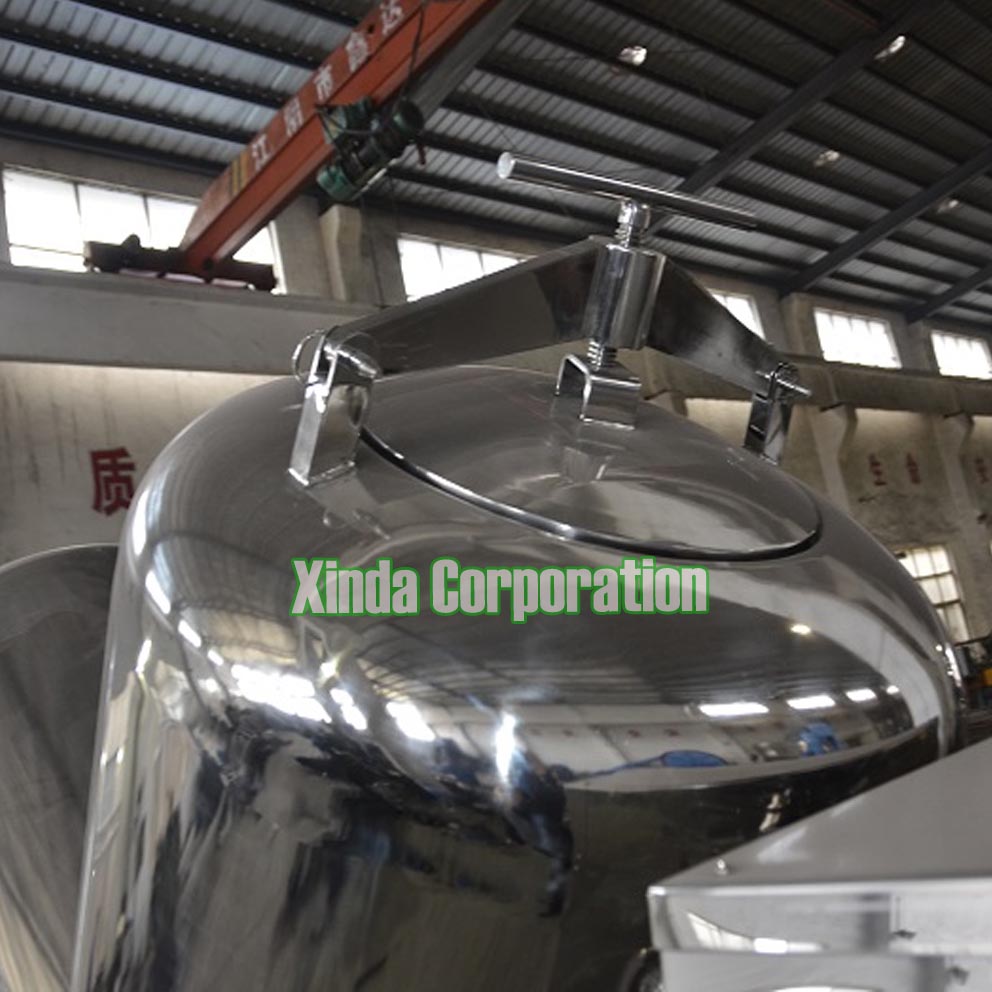

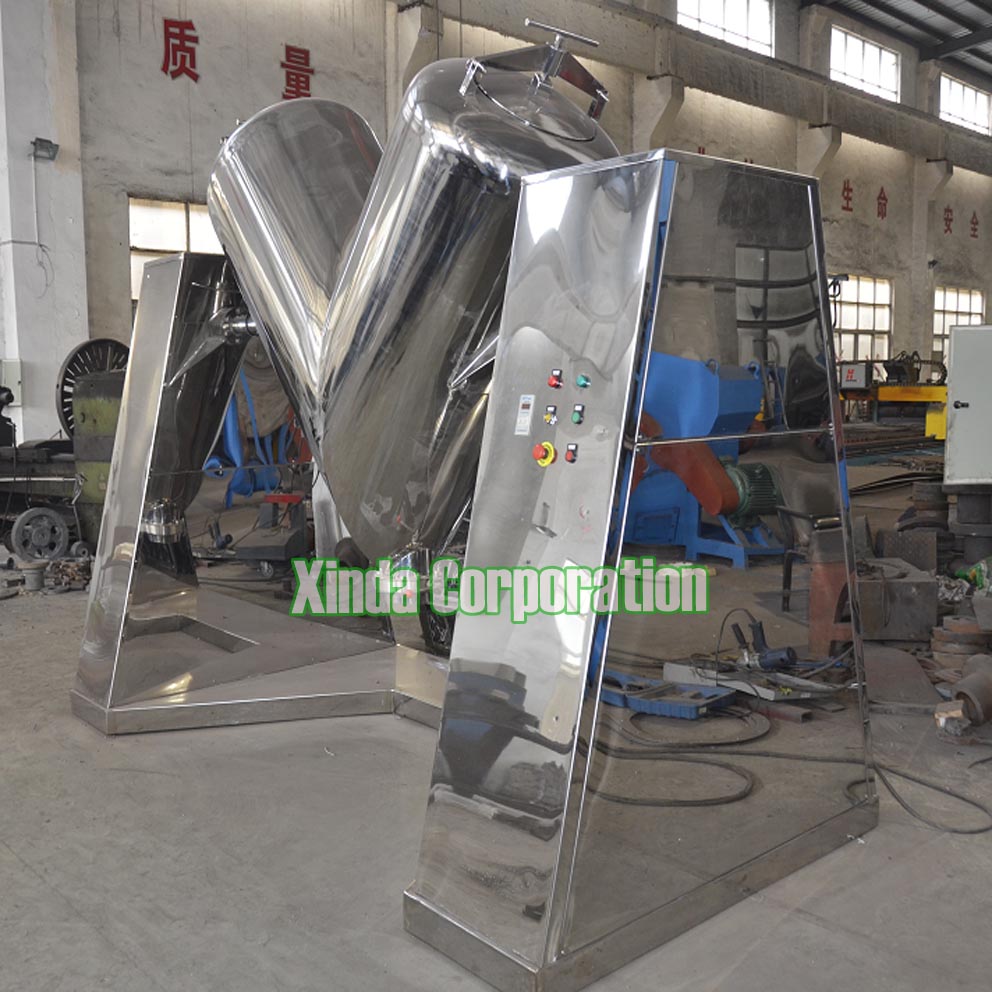

Dry Powder Pharmaceutical Mixer is a blending machine for the mixing of dry granules powder materials in pharmacy, food, chemical industries.
Characteristics
I.Unique structure of mixing cylinder, high mixing efficiency, free of dead corner and even mixing.
II.The mixer machine is made of stainless steel sus304 both inside and outside with walls polished.
Technical Data
| Model | 50 | 100 | 180 | 300 | 500 | 1000 | 1500 | 2000 |
| Capacity(kg/time) | 15 | 25 | 50 | 80 | 150 | 250 | 400 | 500 |
| Vacuum pump | W2 | W2 |
W3 (or) SK-1.5 |
W3 (or) SK-3 |
W3 (or) SK-3 |
W3 (or) SK-3 |
||
| Feeding time(min) | 4-6 | 6-9 | 6-10 | 12-18 | ||||
| Mixing tme(min) | 4-8 | 4-8 | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume(m3) | 0.05 | 0.1 | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2 |
| Cylinder speed(r/min) | 20 | 16 | 15 | 15 | 12 | 12 | 12 | 10 |
| Motor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
| Weight(kg) | 180 | 280 | 350 | 480 | 780 | 1050 | 1280 | 1700 |
| Rotation diameter(mm) | 680 | 900 | 1400 | 1600 | 1900 | 2400 | 2520 | 2900 |
| Overall size(L*W*H)(mm) |
1320*400 *1100 |
1470*720 *1350 |
1910*840 *1700 |
2210*1040 *1900 |
2500*1220 *2420 |
3200*1650 *2600 |
3190*1600 *3100 |
3800*1900 *3310 |
| Model | Capacity(kg/time) | Vacuum pamp | Feeding time(min) | Mxing time |
Tatal volume ( m3 ) |
Cylinder speed(r/min) | Motor power(kw) | Weight(kg) | Rotaion diameter(mm) | overall size(L*W*H)(mm) |
| 2500 | 650 | W4(or)SK-6 | 12-18 | 6-10 | 2.5 | 8 | 11 | 2300 | 3100 | 3990*1990*3790 |
